RS PRO IDM61 Handheld Digital Multimeter, 750V ac Max - UKAS Calibrated

RS Stock No.:: 123-3315
Brand:: RS PRO

RS PRO IDM61 Handheld Digital Multimeter, 750V ac Max - UKAS Calibrated

Subtotal (1 unit)*

£180.49

(exc. VAT)

£216.59

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

135 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£180.49

*price indicative

RS Stock No.:: 123-3315
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number p	IDM61
	Calibrated	UKAS
	Functions Measured	AC Voltage, Continuity, DC Voltage, Diode, Resistance
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum AC Voltage Measurement	750V ac
	Absolute Maximum Resistance Measurement	20MΩ
	True RMS	No
	DC Voltage Measurement Resolution	0.1mV dc
	Resistance Measurement Resolution	100mΩ
	AC Voltage Measurement Resolution	0.1mV ac
	Safety Category Level	CAT II, CAT III
	Best DC Voltage Accuracy	±0.5% + 2 Digits
	Dimensions	74 x 44 x 156mm
	Best AC Voltage Accuracy	±1.5% + 5 Digits
	Length	74mm
	Width	44mm
	Weight	250g
	Safety Category Voltage	600 V, 1000V
	Battery Type	AAA 1.5 V, AM4, IEC LR03
	Maximum Operating Temperature	+50°C
	Best Resistance Measurement Accuracy	±0.7% + 2 Digits
	Height	156mm
	Minimum Operating Temperature	0°C

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Display Type Digital
	Model Number p IDM61
	Calibrated UKAS
	Functions Measured AC Voltage, Continuity, DC Voltage, Diode, Resistance
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum AC Voltage Measurement 750V ac
	Absolute Maximum Resistance Measurement 20MΩ
	True RMS No
	DC Voltage Measurement Resolution 0.1mV dc
	Resistance Measurement Resolution 100mΩ
	AC Voltage Measurement Resolution 0.1mV ac
	Safety Category Level CAT II, CAT III
	Best DC Voltage Accuracy ±0.5% + 2 Digits
	Dimensions 74 x 44 x 156mm
	Best AC Voltage Accuracy ±1.5% + 5 Digits
	Length 74mm
	Width 44mm
	Weight 250g
	Safety Category Voltage 600 V, 1000V
	Battery Type AAA 1.5 V, AM4, IEC LR03
	Maximum Operating Temperature +50°C
	Best Resistance Measurement Accuracy ±0.7% + 2 Digits
	Height 156mm
	Minimum Operating Temperature 0°C

Manufacturer Information

COO (Country of Origin):: TW

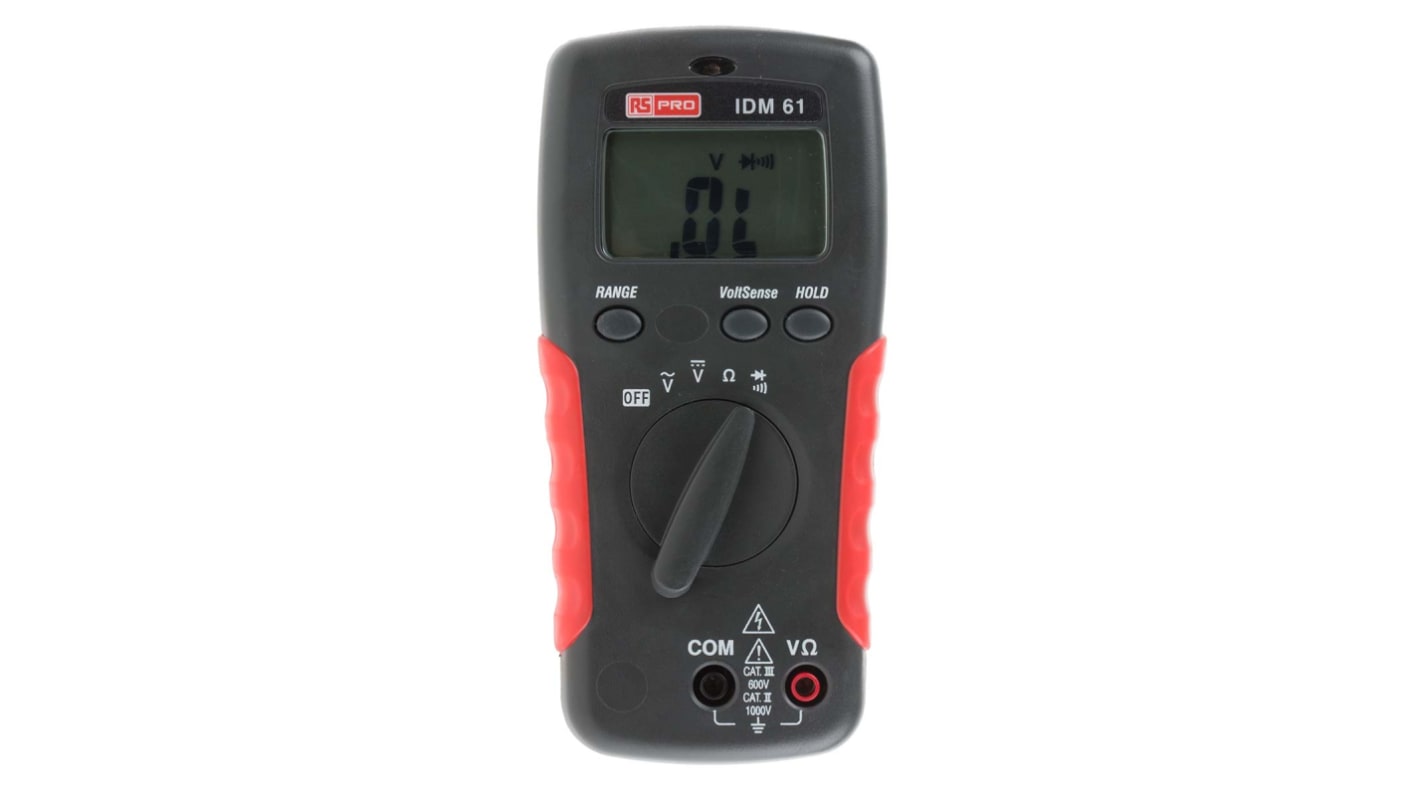

RS PRO IDM61 Digital Multimeter

IDM61 high-performance pocket multimeter with non-contact voltage detector. This meter is a handheld device which can measure capacitance, voltage, electrical current and resistance with diode and continuity check. This meter has an LCD display where the measurement readouts can be viewed.
RS Pro has a range of digital multimeters which are great value for money and also high quality you can rely on.

Features and Benefits

Compact design with soft rubber side grips
2000 Counts LCD display
6 functions / 14 ranges
1000 V ac/dc measurement range
Integral non-contact AC voltage detector with visual & audible indication (50 V ac to 600 V ac, 50 Hz to 500 Hz)
Resistance/ Continuity and Diode Test
Full autoranging with manual override
Display hold
Auto–power off
Conforms to EN61010-1 (safety rating) CAT III 600 V, CAT II 1000 V

What does it measure?

DC and AC voltages - up to 1000 V dc and 750 V ac
Resistance and continuity checking - up to 200 MΩ
Diode - open circuit voltage up to 2 V

Extra Protection

The multimeter is supplied with a protective holster that includes a built-in stand, a nail hook and convenient test lead storage. This holster provides an extra degree of protection and convenience.

Slim Design

Ergonomically designed slim shape with one handed operating knob and buttons. It just fits into the palm of your hand.

Non-Contact Voltage Detection

The IDM61 multimeter has a VoltSense feature to detect live cables and outlets without contact. Also has the abilty to find cable alignment behind the wall as a cable finder.

Batteries

Batteries can be easily replaced by unscrewing one screw to remove the battery door for battery replacement. Designed for users convenience without opening the bottom case.

What does it include?

Pair of Test Leads
Battery (Installed)
User Manual

Typical Applications:
A digital multimeter (DMM) is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines

When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?

The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
