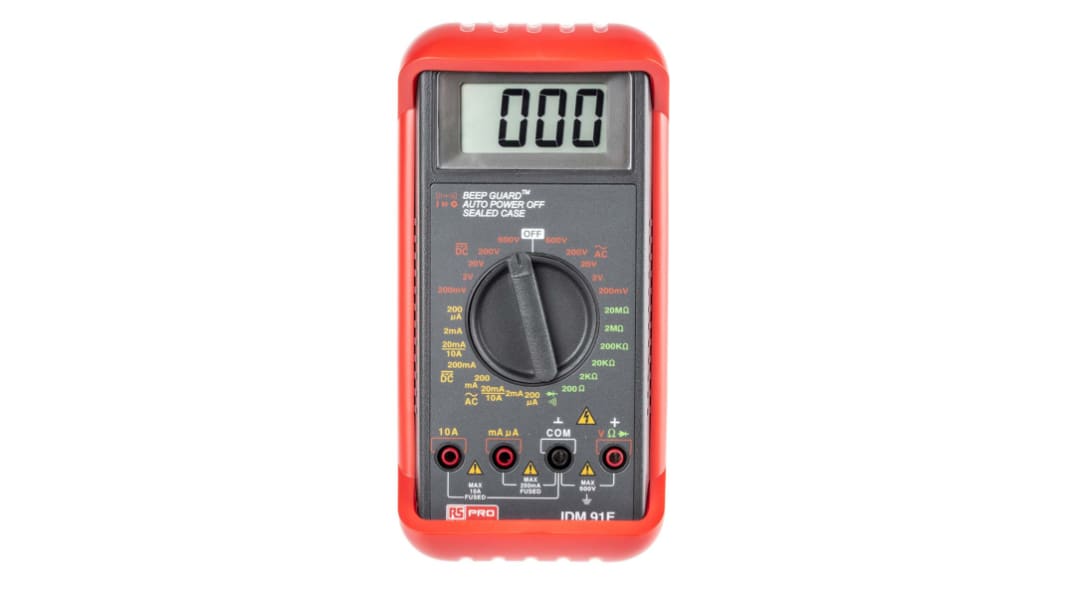

RS PRO IDM91E Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max

RS Stock No.:: 123-3244
Brand:: RS PRO

RS PRO IDM91E Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max

1 / 5

Subtotal (1 unit)**

£157.98

(exc. VAT)

£189.58

(inc. VAT)

211 In stock - FREE next working day delivery available*

34 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£157.98

**price indicative

Calibration Options:

RS PRO IDM91E Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 123-3475

Each

£182.85

(exc. VAT)

£219.42

(inc. VAT)

RS PRO IDM91E Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 123-3476

Each

£206.85

(exc. VAT)

£248.22

(inc. VAT)

RS Stock No.:: 123-3244
Brand:: RS PRO

RS PRO IDM91E Rugged Industrial Digital Multimeter

RS PRO IDM91E digital multimeter (DMM) designed for harsh environments. This handheld DMM is a tool which can measure capacitance, voltage, electrical current and resistance with diode and continuity check. The rugged body guarantees drop prof resistance from up to 1.5 m. The multimeter is also waterproof with a rating of IP54. Featuring fuse protection on both 200 mA and 10 A current ranges and a specially designed beep guard system. That system provides a constant beep warning if the test leads put in the current jacks and select an incorrect function.

The meter is supplied with a protective holster that includes a built-in tilt stand, a nail hook, and convenient test lead storage. This holster provides an extra degree of protection and convenience for your meter.

RS PRO IDM 91E Multimeters are designed to meet Class II IEC 1010 and UL 3111 standards for the safest operation in all applications.

This device has been designed for the most demanding users that value solid construction and highly accurate measurements.

Features and Benefits

• 3 1/2 digit LCD
• 0.5% basic DCV accuracy
• 1.3% basic ACV accuracy
• 1.0% basic DCA accuracy
• 1.5% basic ACA accuracy
• 0.75% basic OHM accuracy
• Continuity and diode test
• 500V dual-fuse protection
• Auto power-off
• Beep Guard™ warning system
• Water resistant rating IP64
• 1.5m (5 feet) dropproof
• Protective holster with tilt stand
• IEC 1010-1 CAT.III 600V/ CAT.II 1000V
• One set of 1:1 probe

What does it measure?

DC and AC Voltages - up to 600 V
DC and AC Current - up to 10A
Resistance and continuity checking - up to 20 MΩ
Diode - open circuit voltage up to 3.2V

Batteries?

300 Hours (Alkaline)
Single 9V (NEDA 1604 or IEC 6F22)
Low battery indicator
Auto power off - approx 30 minutes after the last operation

What It Incudes?

Installed battery
Test Leads
User manual
Protective holster

Dimensions:

Without Holster:
Width 84 mm
Length 175 mm
Height 31 mm
With Holster:
Width 95 mm
Length 192 mm
Height 50 mm

Typical Applications:
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

Standards

IEC 61010-1, CAT.III 300 v, CAT.II 600 V

Supplied with

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Model Number p	IDM91E
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum Resistance Measurement	20MΩ
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum AC Voltage Measurement	600V ac
	True RMS	No
	AC Current Measurement Resolution	0.1µA ac
	DC Current Measurement Resolution	0.1µA dc
	AC Voltage Measurement Resolution	0.1mV ac
	Resistance Measurement Resolution	100mΩ
	DC Voltage Measurement Resolution	0.1mV dc
	Safety Category Level	CAT III
	Battery Type	9V, IEC 6F22, NEDA 1604
	Best AC Current Accuracy	±2.5% + 3 Digits
	Length	95mm
	Best Resistance Measurement Accuracy	±0.75% + 1 Digits
	Best DC Current Accuracy	±1% + 1 Digits
	Weight	550 (With Holster)g
	Minimum Operating Temperature	0°C
	Height	192mm
	Dimensions	95 x 50 x 192mm
	Best AC Voltage Accuracy	±1.25% + 4 Digits
	Best DC Voltage Accuracy	±0.5% + 1 Digits
	Safety Category Voltage	600V
	Maximum Operating Temperature	+50°C
	Width	50mm

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Model Number p IDM91E
	Display Type Digital
	Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum Resistance Measurement 20MΩ
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum AC Voltage Measurement 600V ac
	True RMS No
	AC Current Measurement Resolution 0.1µA ac
	DC Current Measurement Resolution 0.1µA dc
	AC Voltage Measurement Resolution 0.1mV ac
	Resistance Measurement Resolution 100mΩ
	DC Voltage Measurement Resolution 0.1mV dc
	Safety Category Level CAT III
	Battery Type 9V, IEC 6F22, NEDA 1604
	Best AC Current Accuracy ±2.5% + 3 Digits
	Length 95mm
	Best Resistance Measurement Accuracy ±0.75% + 1 Digits
	Best DC Current Accuracy ±1% + 1 Digits
	Weight 550 (With Holster)g
	Minimum Operating Temperature 0°C
	Height 192mm
	Dimensions 95 x 50 x 192mm
	Best AC Voltage Accuracy ±1.25% + 4 Digits
	Best DC Voltage Accuracy ±0.5% + 1 Digits
	Safety Category Voltage 600V
	Maximum Operating Temperature +50°C
	Width 50mm
