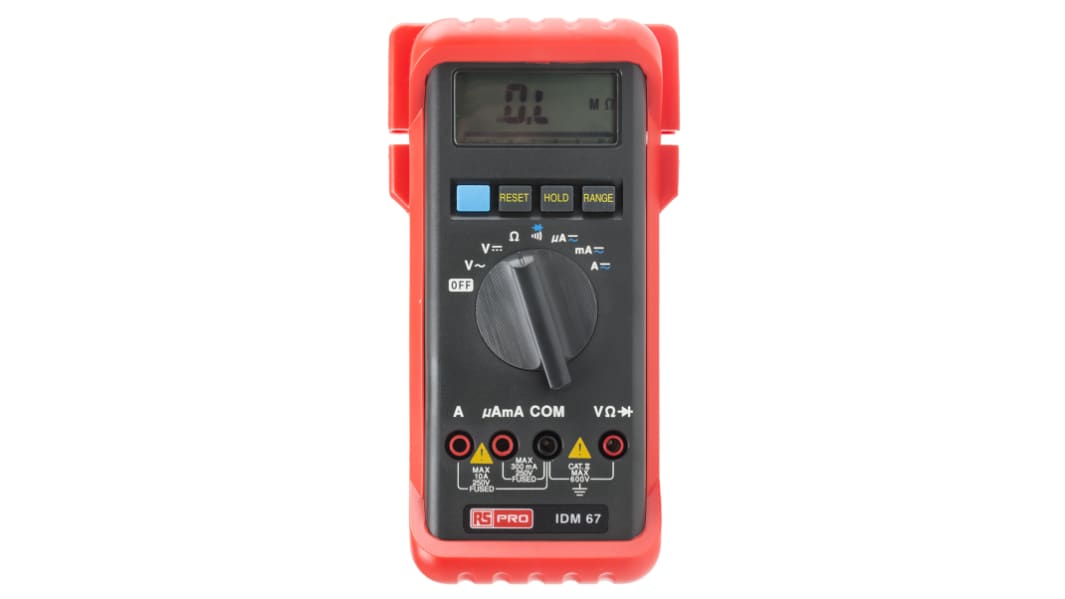

RS PRO IDM67 Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max
- RS Stock No.:
- 123-3241
- Brand:
- RS PRO
Subtotal (1 unit)*
£134.99
(exc. VAT)
£161.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.99 |
*price indicative
- RS Stock No.:
- 123-3241
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Model Number p | IDM67 | |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance | |
| Absolute Maximum DC Voltage Measurement | 600V dc | |
| Absolute Maximum AC Voltage Measurement | 600V ac | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| Absolute Maximum Resistance Measurement | 30MΩ | |
| True RMS | No | |
| AC Current Measurement Resolution | 0.1µA ac | |
| DC Current Measurement Resolution | 0.1µA dc | |
| Resistance Measurement Resolution | 100mΩ | |
| DC Voltage Measurement Resolution | 0.1mV dc | |
| AC Voltage Measurement Resolution | 1mV ac | |
| Safety Category Level | CAT II | |
| Weight | 360g | |
| Best DC Current Accuracy | ±1.2% + 2 Digits | |
| Height | 165mm | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 85 x 40 x 165mm | |
| Best AC Voltage Accuracy | ±1.7% + 5 Digits | |
| Best DC Voltage Accuracy | ±0.7% + 2 Digits | |
| Length | 85mm | |
| Best AC Current Accuracy | ±1.7% + 4 Digits | |
| Width | 40mm | |
| Battery Type | AAA 1.5 V, AM4, IEC LR03 | |
| Maximum Operating Temperature | +50°C | |
| Safety Category Voltage | 600V | |
| Best Resistance Measurement Accuracy | ±1.2% + 4 Digits | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Model Number p IDM67 | ||
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance | ||
Absolute Maximum DC Voltage Measurement 600V dc | ||
Absolute Maximum AC Voltage Measurement 600V ac | ||
Absolute Maximum AC Current Measurement 10A ac | ||
Absolute Maximum DC Current Measurement 10A dc | ||
Absolute Maximum Resistance Measurement 30MΩ | ||
True RMS No | ||
AC Current Measurement Resolution 0.1µA ac | ||
DC Current Measurement Resolution 0.1µA dc | ||
Resistance Measurement Resolution 100mΩ | ||
DC Voltage Measurement Resolution 0.1mV dc | ||
AC Voltage Measurement Resolution 1mV ac | ||
Safety Category Level CAT II | ||
Weight 360g | ||
Best DC Current Accuracy ±1.2% + 2 Digits | ||
Height 165mm | ||
Minimum Operating Temperature 0°C | ||
Dimensions 85 x 40 x 165mm | ||
Best AC Voltage Accuracy ±1.7% + 5 Digits | ||
Best DC Voltage Accuracy ±0.7% + 2 Digits | ||
Length 85mm | ||
Best AC Current Accuracy ±1.7% + 4 Digits | ||
Width 40mm | ||
Battery Type AAA 1.5 V, AM4, IEC LR03 | ||
Maximum Operating Temperature +50°C | ||
Safety Category Voltage 600V | ||
Best Resistance Measurement Accuracy ±1.2% + 4 Digits | ||
- COO (Country of Origin):
- TW
RS PRO IDM67 Pocket Digital Multimeter
A compact multimeter that can measure voltage, electrical current, and resistance with diode and continuity check. This meter has an improved display resolution designed to meet IEC1010 -1 safety standard) category II 600 V with 10 A measuring capability.
RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.
RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.
Features and Benefits
3200 Count LCD display
65 segment analogue bar graph
Display hold function
Continuity beeper (0.2 ms)
Measures AC-DC voltage and current, resistance, continuity and diode tests
Autoranging voltage, ohms and continuity with manual override
Beep guard audible warning when current measurement and current ranges are not selected
Versatile rubber holster with probe storage allowing single-handed use of the instrument
Auto power off conserves battery life
65 segment analogue bar graph
Display hold function
Continuity beeper (0.2 ms)
Measures AC-DC voltage and current, resistance, continuity and diode tests
Autoranging voltage, ohms and continuity with manual override
Beep guard audible warning when current measurement and current ranges are not selected
Versatile rubber holster with probe storage allowing single-handed use of the instrument
Auto power off conserves battery life
What does it measure?
DC and AC Voltages - up to 600 V
DC Current - up to 10A
Resistance and continuity checking - up to 40 MΩ
Diode - open circuit voltage up to 3.3 V
DC Current - up to 10A
Resistance and continuity checking - up to 40 MΩ
Diode - open circuit voltage up to 3.3 V
Extra Protection
The multimeter is supplied with a protective holster that includes a built-in stand and convenient test lead storage. This holster provides an extra degree of protection and convenience.
Slim Design
Ergonomically designed slim shape with one-handed operating knob and buttons. It just fits into the palm of your hand.
Batteries
Batteries can be easily replaced by removing the battery door for battery replacement. Designed for users convenience without opening the bottom case.
What does it include?
Pair of Test Leads
Battery (Installed)
User Manual
Holster
Battery (Installed)
User Manual
Holster
Typical Applications:
A digital multimeter (DMM) is a handy test device that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries
Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
A digital multimeter (DMM) is a handy test device that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries
Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
Warning
This instrument is not recommended for current measurement on high energy circuits.
