RS PRO Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated

RS Stock No.:: 123-3415
Brand:: RS PRO

RS PRO Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated

1 / 4

Subtotal (1 unit)**

£177.56

(exc. VAT)

£213.07

(inc. VAT)

66 In stock for delivery within 3 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 +	£177.56

**price indicative

RS Stock No.:: 123-3415
Brand:: RS PRO

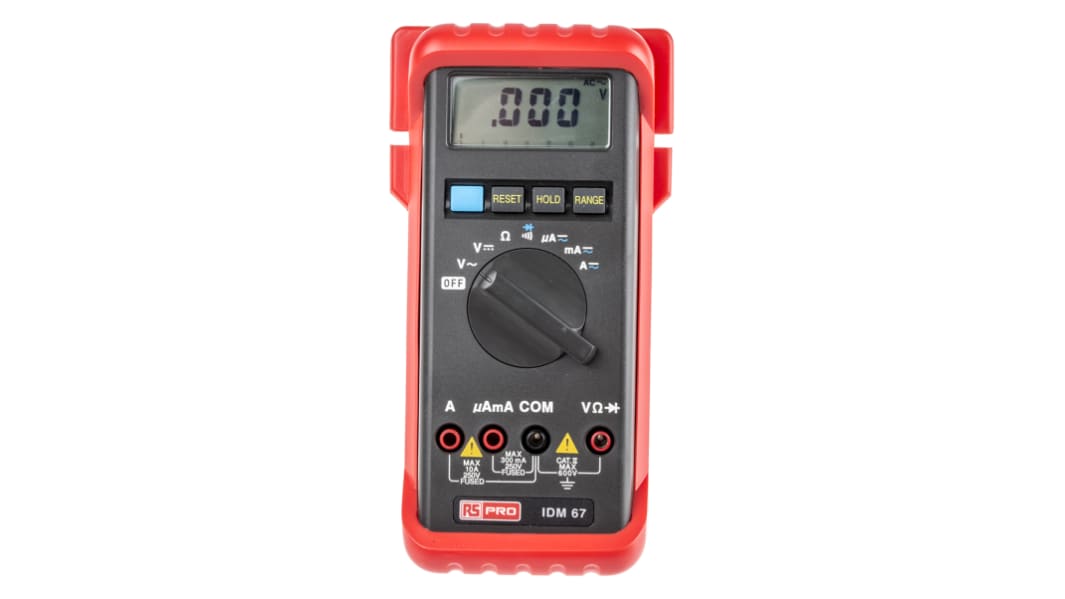

RS PRO IDM67 Pocket Digital Multimeter

A compact multimeter that can measure voltage, electrical current, and resistance with diode and continuity check. This meter has an improved display resolution designed to meet IEC1010 -1 safety standard) category II 600 V with 10 A measuring capability.

RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits

3200 Count LCD display
65 segment analogue bar graph
Display hold function
Continuity beeper (0.2 ms)
Measures AC-DC voltage and current, resistance, continuity and diode tests
Autoranging voltage, ohms and continuity with manual override
Beep guard audible warning when current measurement and current ranges are not selected
Versatile rubber holster with probe storage allowing single-handed use of the instrument
Auto power off conserves battery life

What does it measure?

DC and AC Voltages - up to 600 V
DC Current - up to 10A
Resistance and continuity checking - up to 40 MΩ
Diode - open circuit voltage up to 3.3 V

Extra Protection

The multimeter is supplied with a protective holster that includes a built-in stand and convenient test lead storage. This holster provides an extra degree of protection and convenience.

Slim Design

Ergonomically designed slim shape with one-handed operating knob and buttons. It just fits into the palm of your hand.

Batteries

Batteries can be easily replaced by removing the battery door for battery replacement. Designed for users convenience without opening the bottom case.

What does it include?

Pair of Test Leads
Battery (Installed)
User Manual
Holster

Typical Applications:
A digital multimeter (DMM) is a handy test device that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.

Warning

This instrument is not recommended for current measurement on high energy circuits.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Display Type	Digital
	Calibrated	RSCAL
	Functions Measured	AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Resistance Measurement	30MΩ
	DC Current Measurement Resolution	0.1µA dc
	AC Current Measurement Resolution	0.1µA ac
	AC Voltage Measurement Resolution	1mV ac
	DC Voltage Measurement Resolution	0.1mV dc
	Resistance Measurement Resolution	100mΩ
	Safety Category Level	CAT II
	Best AC Voltage Accuracy	±1.7% + 5 Digits
	Minimum Operating Temperature	0°C
	Height	165mm
	Weight	360g
	Best DC Current Accuracy	±1.2% + 2 Digits
	Length	85mm
	Dimensions	85 x 40 x 165mm
	Best DC Voltage Accuracy	±0.7% + 2 Digits
	Best AC Current Accuracy	±1.7% + 4 Digits
	Width	40mm
	Maximum Operating Temperature	+50°C
	Battery Type	AAA 1.5 V, AM4, IEC LR03
	Safety Category Voltage	600V
	Best Resistance Measurement Accuracy	±1.2% + 4 Digits

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Display Type Digital
	Calibrated RSCAL
	Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum Resistance Measurement 30MΩ
	DC Current Measurement Resolution 0.1µA dc
	AC Current Measurement Resolution 0.1µA ac
	AC Voltage Measurement Resolution 1mV ac
	DC Voltage Measurement Resolution 0.1mV dc
	Resistance Measurement Resolution 100mΩ
	Safety Category Level CAT II
	Best AC Voltage Accuracy ±1.7% + 5 Digits
	Minimum Operating Temperature 0°C
	Height 165mm
	Weight 360g
	Best DC Current Accuracy ±1.2% + 2 Digits
	Length 85mm
	Dimensions 85 x 40 x 165mm
	Best DC Voltage Accuracy ±0.7% + 2 Digits
	Best AC Current Accuracy ±1.7% + 4 Digits
	Width 40mm
	Maximum Operating Temperature +50°C
	Battery Type AAA 1.5 V, AM4, IEC LR03
	Safety Category Voltage 600V
	Best Resistance Measurement Accuracy ±1.2% + 4 Digits
