RS PRO IDM20 Handheld Digital Multimeter, 200mA ac Max, 200mA dc Max, 600V ac Max

RS Stock No.:: 123-1930
Brand:: RS PRO

RS PRO IDM20 Handheld Digital Multimeter, 200mA ac Max, 200mA dc Max, 600V ac Max

Subtotal (1 unit)*

£61.20

(exc. VAT)

£73.44

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

141 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£61.20

*price indicative

Calibration Options:

RS PRO IDM20 Handheld Digital Multimeter, 200mA ac Max, 200mA dc Max, 600V ac Max - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 123-1948

Each

£107.70

(exc. VAT)

£129.24

(inc. VAT)

RS PRO IDM20 Handheld Digital Multimeter, 200mA ac Max, 200mA dc Max, 600V ac Max - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 123-1949

Each

£131.70

(exc. VAT)

£158.04

(inc. VAT)

RS Stock No.:: 123-1930
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Model Number p	IDM20
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
	Absolute Maximum Resistance Measurement	40MΩ
	Absolute Maximum AC Current Measurement	200mA ac
	Absolute Maximum DC Current Measurement	200mA dc
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum Capacitance Measurement	100µF
	True RMS	No
	Maximum Frequency	100kHz
	Safety Category Level	CAT III
	Best DC Current Accuracy	±2 %
	Weight	145g
	Best Capacitance Measurement Accuracy	±3 % ± 5 Digits
	Best DC Voltage Accuracy	±0.5 %
	Dimensions	120 x 55 x 40mm
	Length	120mm
	Best AC Current Accuracy	±2.5 %
	Width	55mm
	Best AC Voltage Accuracy	±1.2 %
	Battery Type	AAA
	Best Resistance Measurement Accuracy	±0.8 %
	Height	40mm
	Safety Category Voltage	1000V

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Model Number p IDM20
	Display Type Digital
	Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
	Absolute Maximum Resistance Measurement 40MΩ
	Absolute Maximum AC Current Measurement 200mA ac
	Absolute Maximum DC Current Measurement 200mA dc
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum Capacitance Measurement 100µF
	True RMS No
	Maximum Frequency 100kHz
	Safety Category Level CAT III
	Best DC Current Accuracy ±2 %
	Weight 145g
	Best Capacitance Measurement Accuracy ±3 % ± 5 Digits
	Best DC Voltage Accuracy ±0.5 %
	Dimensions 120 x 55 x 40mm
	Length 120mm
	Best AC Current Accuracy ±2.5 %
	Width 55mm
	Best AC Voltage Accuracy ±1.2 %
	Battery Type AAA
	Best Resistance Measurement Accuracy ±0.8 %
	Height 40mm
	Safety Category Voltage 1000V

COO (Country of Origin):: CN

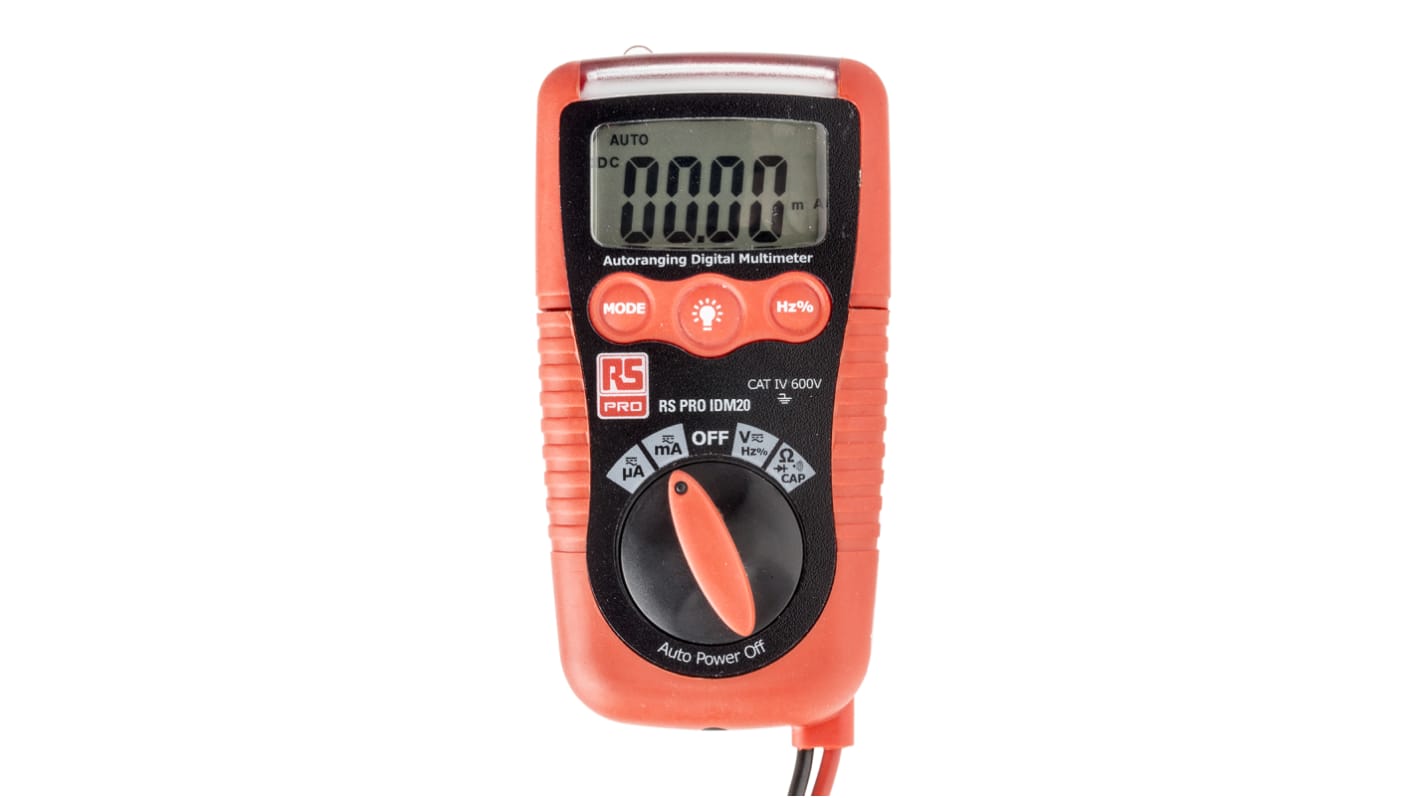

RS PRO IDM20 Pocket Digital Multimeter

The RS PRO IDM20 digital multimeter (DMM) is a handheld tool which can measure capacitance, voltage, electrical current and resistance with diode and continuity check. This meter has an LCD display where the measurement readouts can be viewed. There is also a “hold” function available in the compact design making it very user-friendly. The multimeter is also CAT IV rated for 600V and CAT III rated for 1000V.

With built-in non-contact AC voltage detection, this battery-powered device is great for continuity and portability. A robust, double-moulded, plastic housing provides ultimate protection from harsh environments. Included with the meter itself are integral test leads, 2 X AAA batteries and a user manual.

The IDM20 is RS Approved, meaning not only is it great value for money, but you can rely on its quality.

Features and Benefits:

• Integrated flashlight
• Compact and handheld - pocket size
• Digital 3-3/4 digit 4000 count LCD display
• 3-year warranty
• 104 x 55 x 32.5 mm dimension

What does it measure?
DC/AC Voltages
AC/DC Current
Resistance and continuity checking
Diode - open circuit voltage

What does it include?
Pair of Integral Test Leads
Battery (Installed) - Two 1.5V AAA batteries
User Manual

Typical Applications:
A digital multimeter (DMM) is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
