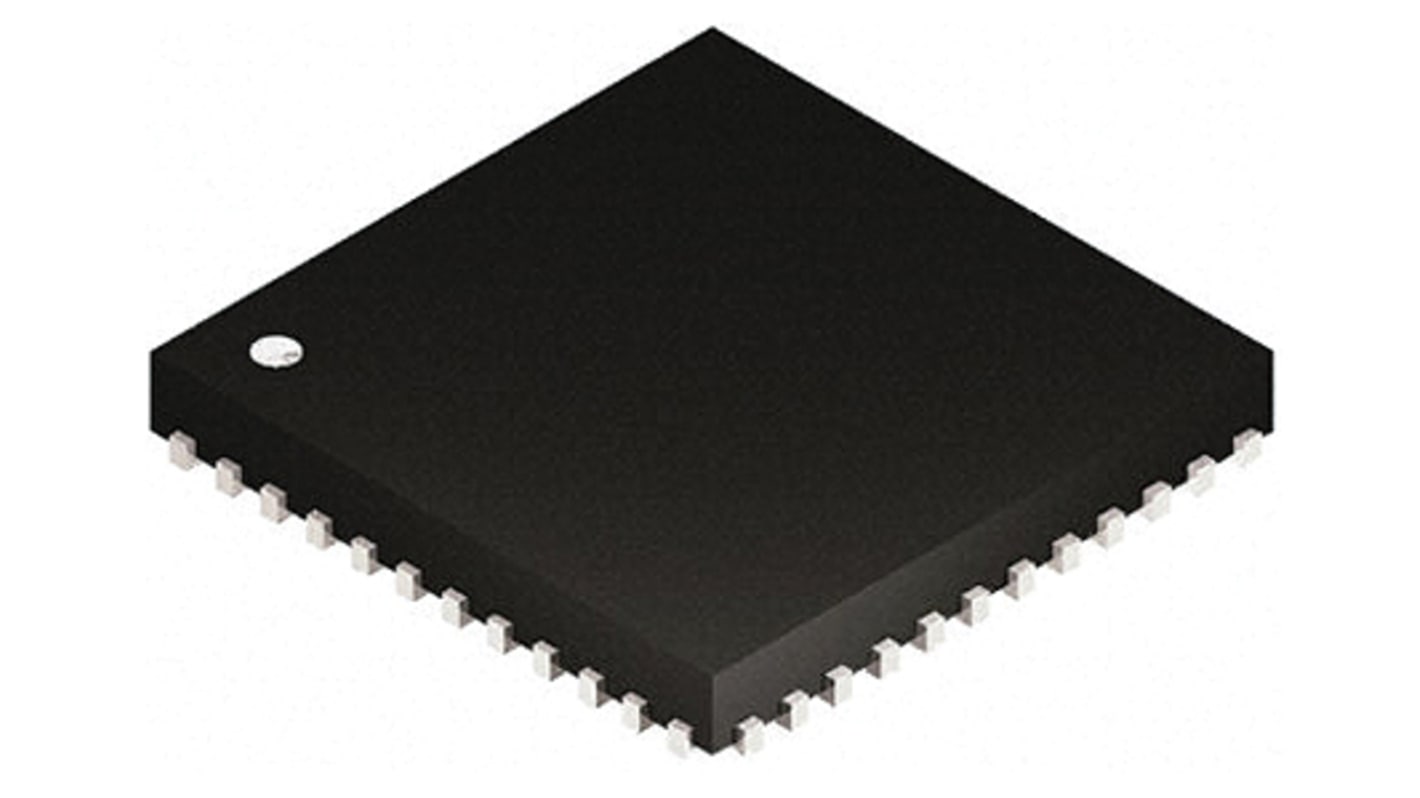

STMicroelectronics, Brushless Brushless DC Motor Controller 600 mA 48-Pin, VFQFPN
- RS Stock No.:
- 163-7335
- Mfr. Part No.:
- STSPIN32F0
- Brand:
- STMicroelectronics
Subtotal (1 tray of 260 units)*
£666.38
(exc. VAT)
£799.76
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tray* |
|---|---|---|
| 260 + | £2.563 | £666.38 |
*price indicative
- RS Stock No.:
- 163-7335
- Mfr. Part No.:
- STSPIN32F0
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Brushless DC Motor Controller | |
| Motor Type | Brushless | |
| Configuration | 3 Phase | |
| Maximum IGBT Collector Current | 600mA | |
| Mount Type | Surface | |
| Package Type | VFQFPN | |
| Output Current | 70mA | |
| Pin Count | 48 | |
| Minimum Supply Voltage | 8V | |
| Maximum Supply Voltage | 45V | |
| Typical Switching Frequency | 200kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | STSPIN | |
| Height | 0.95mm | |
| Standards/Approvals | ANSI/ESDA/JEDEC JS-001-2014, ANSI/ESDA/JEDEC JS-002-2014 | |
| Length | 7.1mm | |
| Automotive Standard | No | |
| Supply Current | 5mA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Brushless DC Motor Controller | ||
Motor Type Brushless | ||
Configuration 3 Phase | ||
Maximum IGBT Collector Current 600mA | ||
Mount Type Surface | ||
Package Type VFQFPN | ||
Output Current 70mA | ||
Pin Count 48 | ||
Minimum Supply Voltage 8V | ||
Maximum Supply Voltage 45V | ||
Typical Switching Frequency 200kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series STSPIN | ||
Height 0.95mm | ||
Standards/Approvals ANSI/ESDA/JEDEC JS-001-2014, ANSI/ESDA/JEDEC JS-002-2014 | ||
Length 7.1mm | ||
Automotive Standard No | ||
Supply Current 5mA | ||
The STSPIN32F0 is a System-In-Package providing an integrated solution suitable for driving three-phase BLDC motors using different driving modes. It embeds a triple half-bridge gate driver able to drive power MOSFETs or IGBTs with a current capability of 600 mA (sink and source). The high- and low-side switches of same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function. An internal DC/DC buck converter provides the 3.3 V voltage suitable to supply both the MCU and external components.
Extended operating voltage from 8 to 45 V
Three-phase gate drivers
600 mA sink/source
Integrated bootstrap diodes
Cross-conduction prevention
16 general-purpose I/O ports (GPIO)
5 general-purpose timers
12-bit ADC converter (up to 9 channels)
