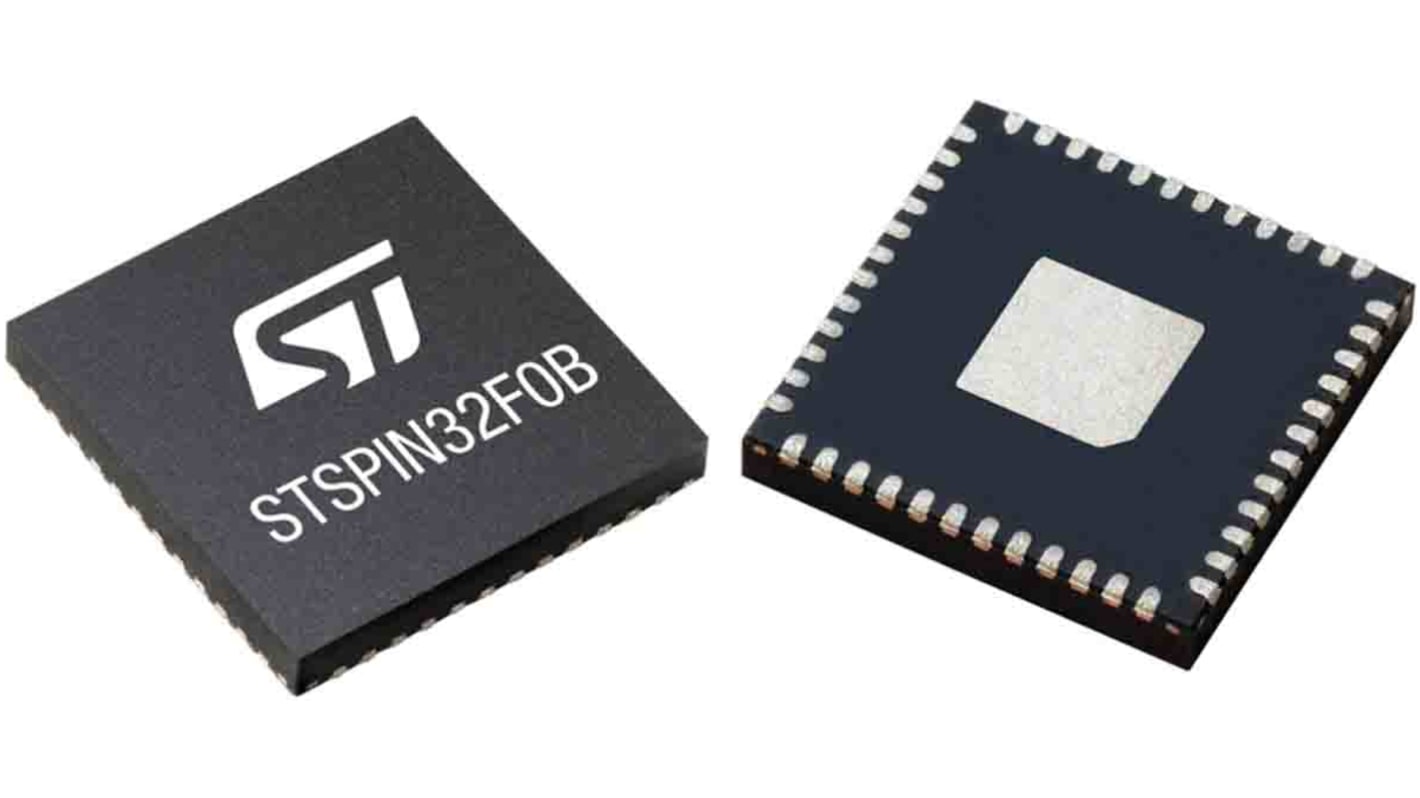

STMicroelectronics STSPIN32F0B, BLDC Brushless DC Motor Controller 48-Pin, VFQFPN
- RS Stock No.:
- 192-5072
- Mfr. Part No.:
- STSPIN32F0B
- Brand:
- STMicroelectronics
Available to back order for despatch 21/05/2024
Added
Price Each (In a Pack of 5)
£4.34
(exc. VAT)
£5.21
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £4.34 | £21.70 |
| 25 - 45 | £4.08 | £20.40 |
| 50 - 120 | £3.862 | £19.31 |
| 125 - 245 | £3.646 | £18.23 |
| 250 + | £3.472 | £17.36 |
| *price indicative | ||
- RS Stock No.:
- 192-5072
- Mfr. Part No.:
- STSPIN32F0B
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
Extended operating voltage from 6.7 to 45 V
Three-phase gate drivers
600 mA sink/source
Integrated bootstrap diodes
Cross-conduction prevention
32-bit ARM® Cortex®-M0 core:
Up to 48 MHz clock frequency
4-kByte SRAM with HW parity
32-kByte Flash memory with option bytes used for write/readout protection
Bootloader FW available
3.3. V DC/DC buck converter regulator with overcurrent, short-circuit, and thermal protection
12 V LDO linear regulator with thermal protection
20 general-purpose I/O ports (GPIO)
5 general-purpose timers
12-bit ADC converter (up to 9 channels)
I2C, USART and SPI interfaces
One rail-to-rail operational amplifier for signal conditioning
Comparator for overcurrent protection with programmable threshold
Standby mode for low power consumption
UVLO protection on each power supply:
VM, VDD, VREG and VBOOTx
On-chip debug support via SWD
Extended temperature range: -40 to +125 °C
Three-phase gate drivers
600 mA sink/source
Integrated bootstrap diodes
Cross-conduction prevention
32-bit ARM® Cortex®-M0 core:
Up to 48 MHz clock frequency
4-kByte SRAM with HW parity
32-kByte Flash memory with option bytes used for write/readout protection
Bootloader FW available
3.3. V DC/DC buck converter regulator with overcurrent, short-circuit, and thermal protection
12 V LDO linear regulator with thermal protection
20 general-purpose I/O ports (GPIO)
5 general-purpose timers
12-bit ADC converter (up to 9 channels)
I2C, USART and SPI interfaces
One rail-to-rail operational amplifier for signal conditioning
Comparator for overcurrent protection with programmable threshold
Standby mode for low power consumption
UVLO protection on each power supply:
VM, VDD, VREG and VBOOTx
On-chip debug support via SWD
Extended temperature range: -40 to +125 °C
Specifications
Attribute | Value |
|---|---|
| Motor Type | BLDC |
| Configuration | 3 Phase |
| Output Configuration | Half Bridge |
| Maximum Output Current | 70mA |
| Maximum Supply Voltage | 45 V |
| Mounting Type | Surface Mount |
| Package Type | VFQFPN |
| Maximum Operating Supply Voltage | 45 V |
| Pin Count | 48 |
| Minimum Operating Supply Voltage | 6.7 V |
| Typical Switching Frequency | 200kHz |
| Dimensions | 7.1 x 7.1 x 0.95mm |
| Product Length | 7.1mm |
| Product Width | 7.1mm |
| Maximum Operating Temperature | +125 °C |
| Height | 0.95mm |
| Length | 7.1mm |
| Width | 7.1mm |
| Product Height | 0.95mm |
| Minimum Operating Temperature | -40 °C |
