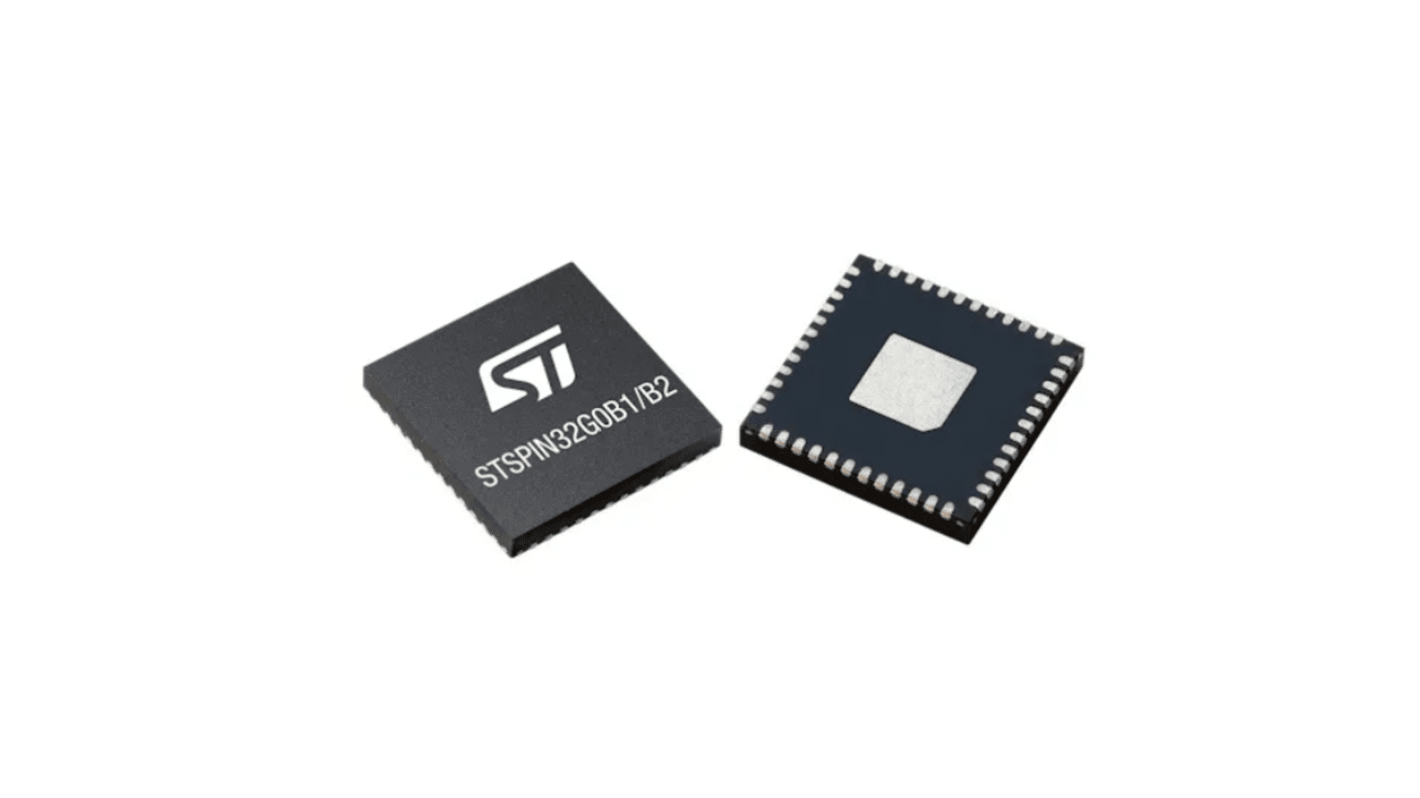

STMicroelectronics, Brushless DC Motor Brushless DC Motor Controller 48-Pin, SPIN32G0B1
- RS Stock No.:
- 365-205
- Mfr. Part No.:
- STSPIN32G0B1
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£3.37
(exc. VAT)
£4.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,560 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.37 |
| 10 + | £3.03 |
*price indicative
- RS Stock No.:
- 365-205
- Mfr. Part No.:
- STSPIN32G0B1
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | Brushless DC Motor | |
| Product Type | Brushless DC Motor Controller | |
| Configuration | Three Phase | |
| Mount Type | Surface | |
| Package Type | SPIN32G0B1 | |
| Pin Count | 48 | |
| Output Current | 15mA | |
| Minimum Supply Voltage | 6.7V | |
| Maximum Supply Voltage | 48V | |
| Minimum Operating Temperature | -40°C | |
| Typical Switching Frequency | 330kHz | |
| Maximum Operating Temperature | 130°C | |
| Series | STSPIN32G0 | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Supply Current | 2.6mA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type Brushless DC Motor | ||
Product Type Brushless DC Motor Controller | ||
Configuration Three Phase | ||
Mount Type Surface | ||
Package Type SPIN32G0B1 | ||
Pin Count 48 | ||
Output Current 15mA | ||
Minimum Supply Voltage 6.7V | ||
Maximum Supply Voltage 48V | ||
Minimum Operating Temperature -40°C | ||
Typical Switching Frequency 330kHz | ||
Maximum Operating Temperature 130°C | ||
Series STSPIN32G0 | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Supply Current 2.6mA | ||
- COO (Country of Origin):
- TH
The STMicroelectronics Advanced brushless motor controller with embedded STM32G0 MCU is a highly integrated system-in-package providing solution suitable for driving three phase brushless motors using different driving modes extremely reducing the BOM and area. It is composed by four part numbers, for full flexibility in balancing the resources among op-amp for current sensing, GPIOs and specifically dedicated features like a precise reference for the ADC. It embeds a triple half-bridge gate driver able to drive power MOSFETs with a current capability of 600 mA (sink and source). The high and low-side switches of the same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function.
12 V LDO linear regulator with thermal protection
5 channel DMA controller with flexible mapping
Advanced control timer dedicated for motor control
Up to 3 rail to rail operation amplifiers for signal conditioning
Comparator for overcurrent protection
Standby mode for low power consumption
