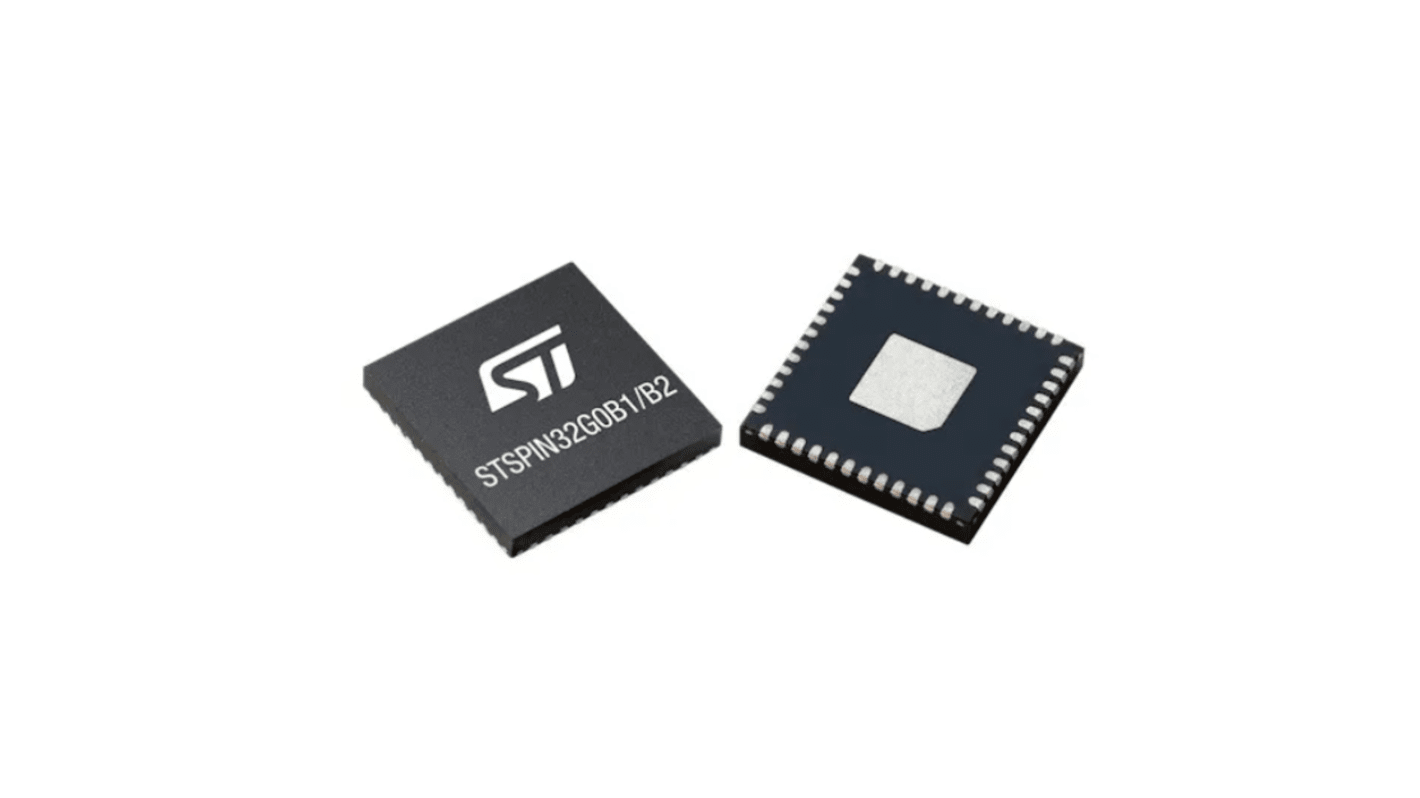

STMicroelectronics STSPIN32G0B2, Brushless DC Motor Brushless DC Motor Controller 48-Pin, SPIN32G0B2
- RS Stock No.:
- 365-208
- Mfr. Part No.:
- STSPIN32G0B2
- Brand:
- STMicroelectronics
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 365-208
- Mfr. Part No.:
- STSPIN32G0B2
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Motor Type | Brushless DC Motor | |
Maximum Output Current | -20 → 15mA | |
Maximum Supply Voltage | 48 V | |
Package Type | SPIN32G0B2 | |
Pin Count | 48 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Motor Type Brushless DC Motor | ||
Maximum Output Current -20 → 15mA | ||
Maximum Supply Voltage 48 V | ||
Package Type SPIN32G0B2 | ||
Pin Count 48 | ||
- COO (Country of Origin):
- TH
The STMicroelectronics Advanced brushless motor controller with embedded STM32G0 MCU is a highly integrated system-in-package providing solution suitable for driving three phase brushless motors using different driving modes extremely reducing the BOM and area. It is composed by four part numbers, for full flexibility in balancing the resources among op-amp for current sensing, GPIOs and specifically dedicated features like a precise reference for the ADC. The high and low side switches of the same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function.
12 V LDO linear regulator with thermal protection
5 channel DMA controller with flexible mapping
Advanced control timer dedicated for motor control
Up to 3 rail to rail operation amplifiers for signal conditioning
Comparator for overcurrent protection
Standby mode for low power consumption
5 channel DMA controller with flexible mapping
Advanced control timer dedicated for motor control
Up to 3 rail to rail operation amplifiers for signal conditioning
Comparator for overcurrent protection
Standby mode for low power consumption
