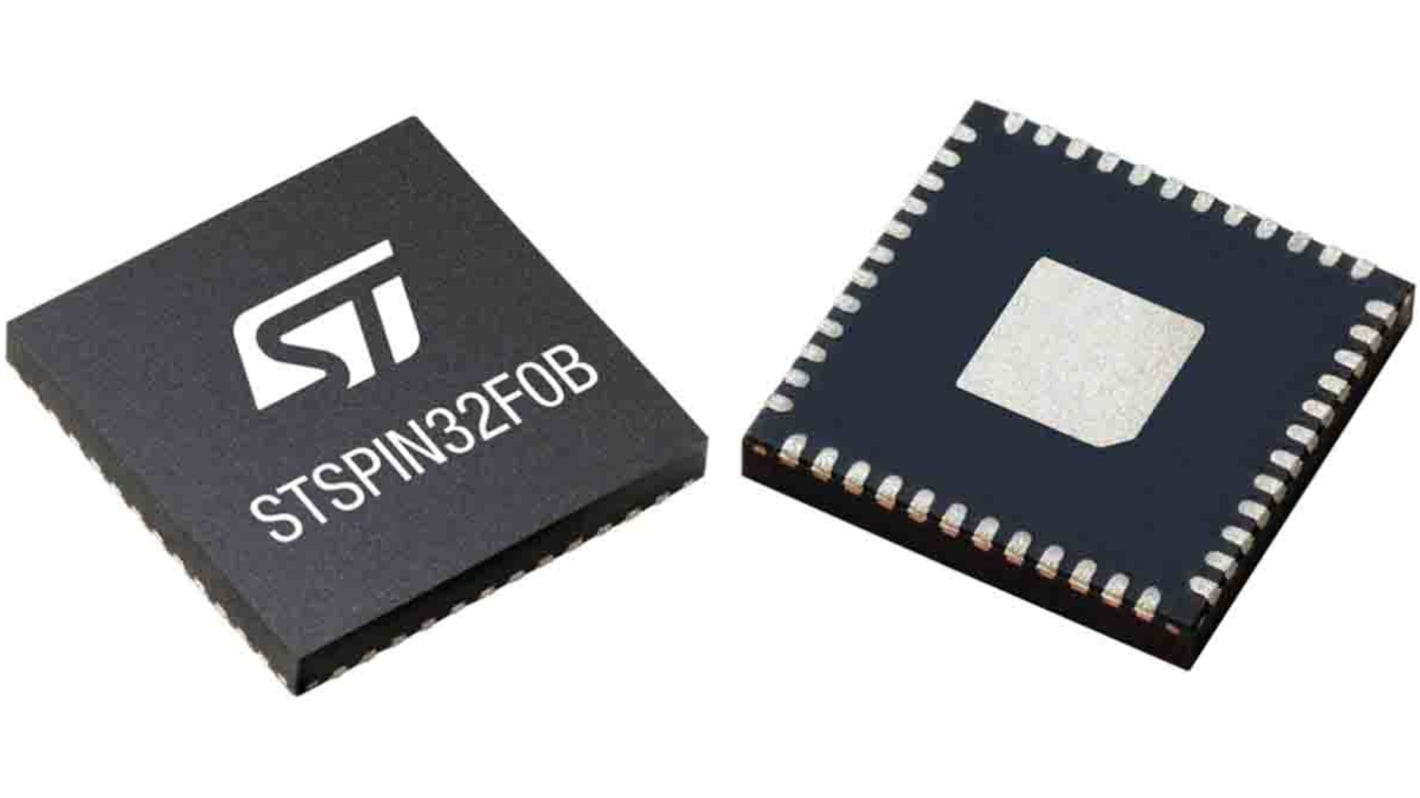

STMicroelectronics STSPIN32F0BTR, BLDC Brushless DC Motor Controller 48-Pin, VFQFPN

View all Motor Driver ICs
Save 10% when you buy 250 units

Subtotal (1 pack of 5 units)*

£14.06

(exc. VAT)

£16.87

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£2.812£14.06
25 - 45£2.71£13.55
50 - 120£2.64£13.20
125 - 245£2.572£12.86
250 +£2.51£12.55

*price indicative

Packaging Options:
RS Stock No.:
192-5076
Mfr. Part No.:
STSPIN32F0BTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Motor Type

BLDC

Output Configuration

Half Bridge

Configuration

3 Phase

Maximum Output Current

70mA

Maximum Supply Voltage

45 V

Mounting Type

Surface Mount

Package Type

VFQFPN

Pin Count

48

Maximum Operating Supply Voltage

45 V

Minimum Operating Supply Voltage

6.7 V

Typical Switching Frequency

200kHz

Product Height

0.95mm

Width

7.1mm

Height

0.95mm

Product Length

7.1mm

Length

7.1mm

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

Dimensions

7.1 x 7.1 x 0.95mm

Product Width

7.1mm

COO (Country of Origin):
TH
Extended operating voltage from 6.7 to 45 V
Three-phase gate drivers
600 mA sink/source
Integrated bootstrap diodes
Cross-conduction prevention
32-bit ARM® Cortex®-M0 core:
Up to 48 MHz clock frequency
4-kByte SRAM with HW parity
32-kByte Flash memory with option bytes used for write/readout protection
Bootloader FW available
3.3. V DC/DC buck converter regulator with overcurrent, short-circuit, and thermal protection
12 V LDO linear regulator with thermal protection
20 general-purpose I/O ports (GPIO)
5 general-purpose timers
12-bit ADC converter (up to 9 channels)
I2C, USART and SPI interfaces
One rail-to-rail operational amplifier for signal conditioning
Comparator for overcurrent protection with programmable threshold
Standby mode for low power consumption
UVLO protection on each power supply:
VM, VDD, VREG and VBOOTx
On-chip debug support via SWD
Extended temperature range: -40 to +125 °C
