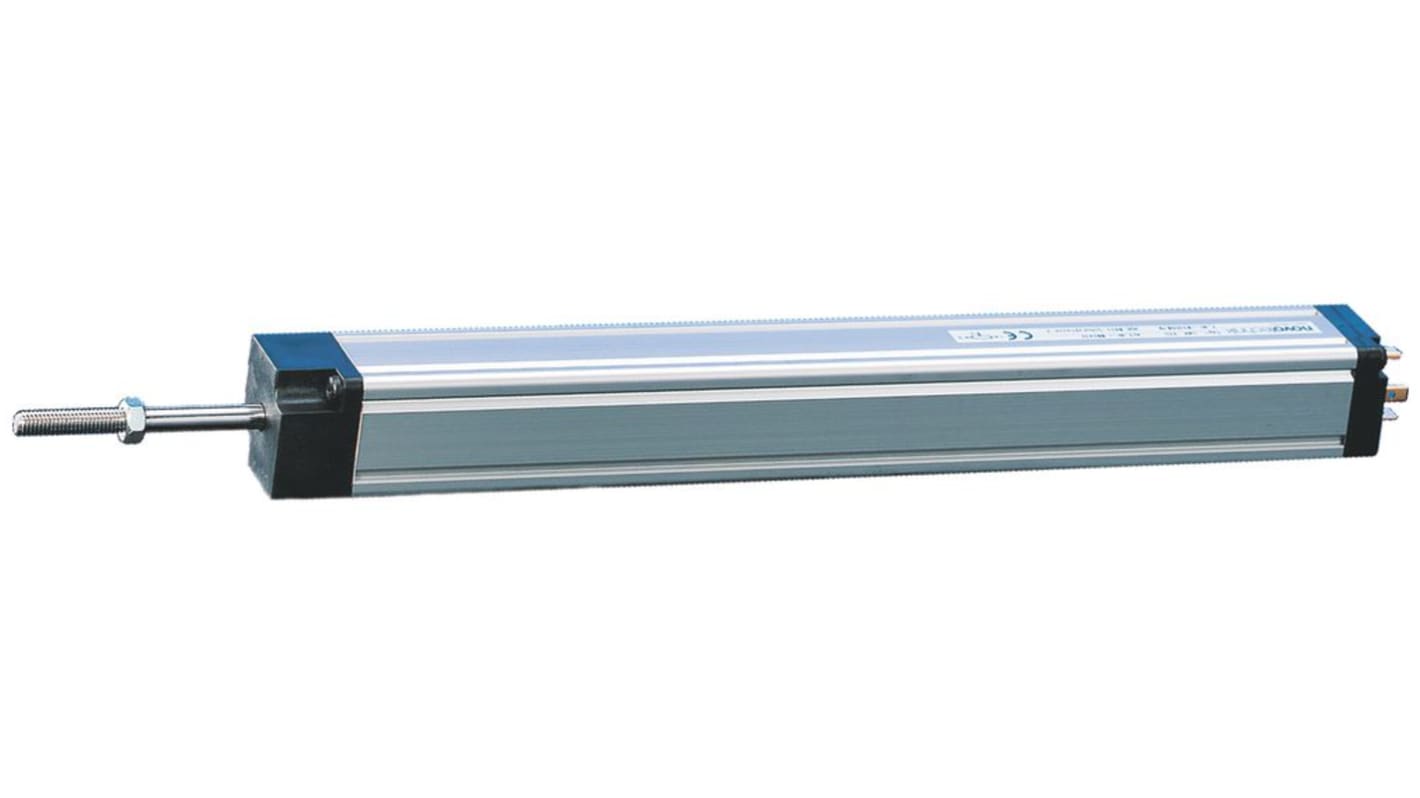

Novotechnik LWH Series Position Sensor 4-Pin, DIN 42V
- RS Stock No.:
- 285-8386
- Distrelec Article No.:
- 164-90-453
- Mfr. Part No.:
- LWH-0750
- Brand:
- Novotechnik
Subtotal (1 unit)*
£480.25
(exc. VAT)
£576.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 6 unit(s) shipping from 11 May 2026
- Plus 2 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £480.25 |
*price indicative
- RS Stock No.:
- 285-8386
- Distrelec Article No.:
- 164-90-453
- Mfr. Part No.:
- LWH-0750
- Brand:
- Novotechnik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Novotechnik | |
| Product Type | Position Sensor | |
| Series | LWH | |
| Resistance | 10kΩ | |
| Housing Material | Aluminium | |
| Interface Type | 4-Pin, DIN | |
| IP Rating | IP55 | |
| Maximum Supply Voltage | 42V | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 100°C | |
| Resistance Tolerance | ±20 % | |
| Select all | ||
|---|---|---|
Brand Novotechnik | ||
Product Type Position Sensor | ||
Series LWH | ||
Resistance 10kΩ | ||
Housing Material Aluminium | ||
Interface Type 4-Pin, DIN | ||
IP Rating IP55 | ||
Maximum Supply Voltage 42V | ||
Standards/Approvals No | ||
Maximum Operating Temperature 100°C | ||
Resistance Tolerance ±20 % | ||
The precision transducer offers outstanding linearity up to ±0.04% and high resolution better than 0.01 mm. Ideal for manufacturing engineering applications such as plastic injection molding and automation technology, this transducer ensures accurate measurement of linear displacement without the need for rack and pinions. With a long life of up to 100 Mio. movements, it is designed for reliability even under harsh working conditions.
Long life up to 100 Mio. movements for durability
Outstanding linearity up to ±0.04% for precision measurements
High resolution better than 0.01 mm for accurate results
Very high operating speed for efficiency
IP55 protection class for durability in different environments
