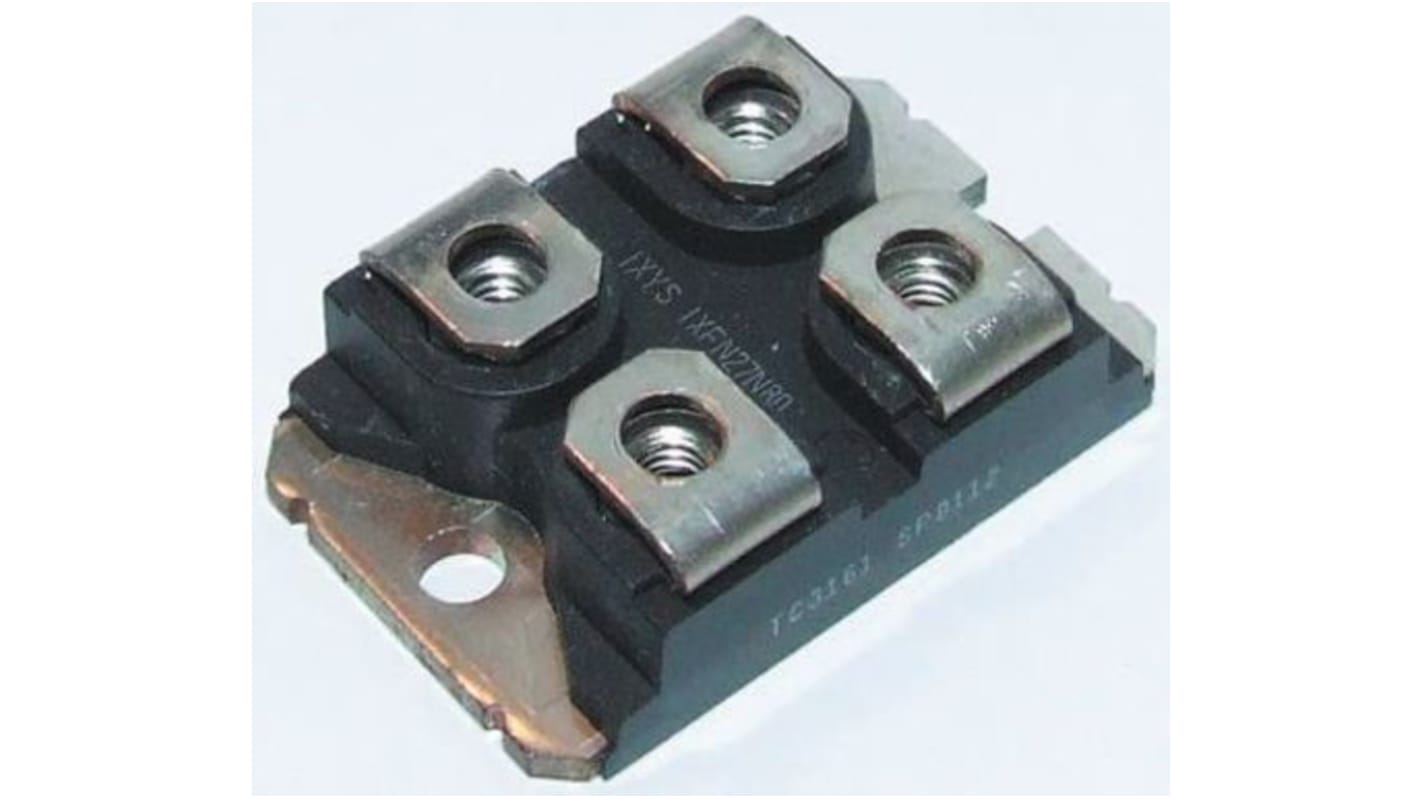

N-Channel MOSFET, 40 A, 600 V, 4-Pin SOT-227 IXYS IXFN48N60P
- RS Stock No.:
- 920-0767
- Mfr. Part No.:
- IXFN48N60P
- Brand:
- IXYS
80 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 10)
£22.834
(exc. VAT)
£27.401
(inc. VAT)
| Units | Per unit | Per Tube* |
| 10 + | £22.834 | £228.34 |
| *price indicative | ||
- RS Stock No.:
- 920-0767
- Mfr. Part No.:
- IXFN48N60P
- Brand:
- IXYS
Technical Reference
Legislation and Compliance
Product Details
N-channel Power MOSFET, IXYS HiperFET™ Polar™ Series
N-Channel Power MOSFETs with Fast Intrinsic Diode (HiPerFET™) from IXYS
MOSFET Transistors, IXYS
A wide range of advanced discrete Power MOSFET devices from IXYS
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 40 A |
| Maximum Drain Source Voltage | 600 V |
| Series | HiperFET, Polar |
| Package Type | SOT-227 |
| Mounting Type | Screw Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 140 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5.5V |
| Maximum Power Dissipation | 625 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Transistor Material | Si |
| Width | 25.42mm |
| Typical Gate Charge @ Vgs | 150 nC @ 10 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 38.23mm |
| Height | 9.6mm |
| Minimum Operating Temperature | -55 °C |
