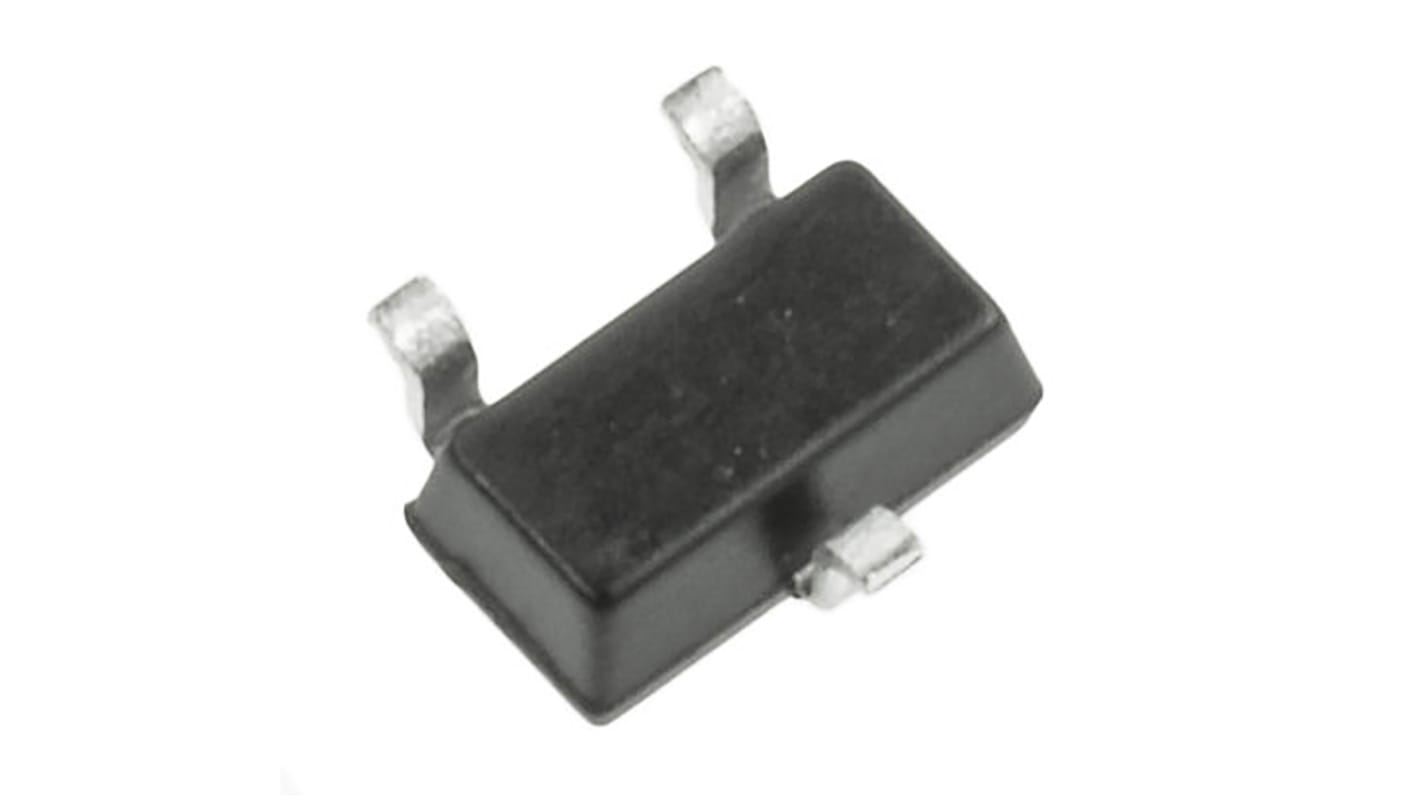

Infineon OptiMOS™ N-Channel MOSFET, 1.5 A, 20 V, 3-Pin SOT-323 BSS214NWH6327XTSA1
- RS Stock No.:
- 827-0030
- Mfr. Part No.:
- BSS214NWH6327XTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 250 units)*
£25.25
(exc. VAT)
£30.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,750 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 250 - 750 | £0.101 | £25.25 |
| 1000 - 2750 | £0.079 | £19.75 |
| 3000 - 5750 | £0.067 | £16.75 |
| 6000 + | £0.064 | £16.00 |
*price indicative
- RS Stock No.:
- 827-0030
- Mfr. Part No.:
- BSS214NWH6327XTSA1
- Brand:
- Infineon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 1.5 A | |
| Maximum Drain Source Voltage | 20 V | |
| Package Type | SOT-323 | |
| Series | OptiMOS™ | |
| Mounting Type | Surface Mount | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 250 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 1.2V | |
| Minimum Gate Threshold Voltage | 0.7V | |
| Maximum Power Dissipation | 500 mW | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -12 V, +12 V | |
| Transistor Material | Si | |
| Width | 1.25mm | |
| Maximum Operating Temperature | +150 °C | |
| Typical Gate Charge @ Vgs | 0.8 nC @ 5 V | |
| Length | 2mm | |
| Number of Elements per Chip | 1 | |
| Height | 0.8mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 1.5 A | ||
Maximum Drain Source Voltage 20 V | ||
Package Type SOT-323 | ||
Series OptiMOS™ | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 250 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 1.2V | ||
Minimum Gate Threshold Voltage 0.7V | ||
Maximum Power Dissipation 500 mW | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -12 V, +12 V | ||
Transistor Material Si | ||
Width 1.25mm | ||
Maximum Operating Temperature +150 °C | ||
Typical Gate Charge @ Vgs 0.8 nC @ 5 V | ||
Length 2mm | ||
Number of Elements per Chip 1 | ||
Height 0.8mm | ||
Minimum Operating Temperature -55 °C | ||
