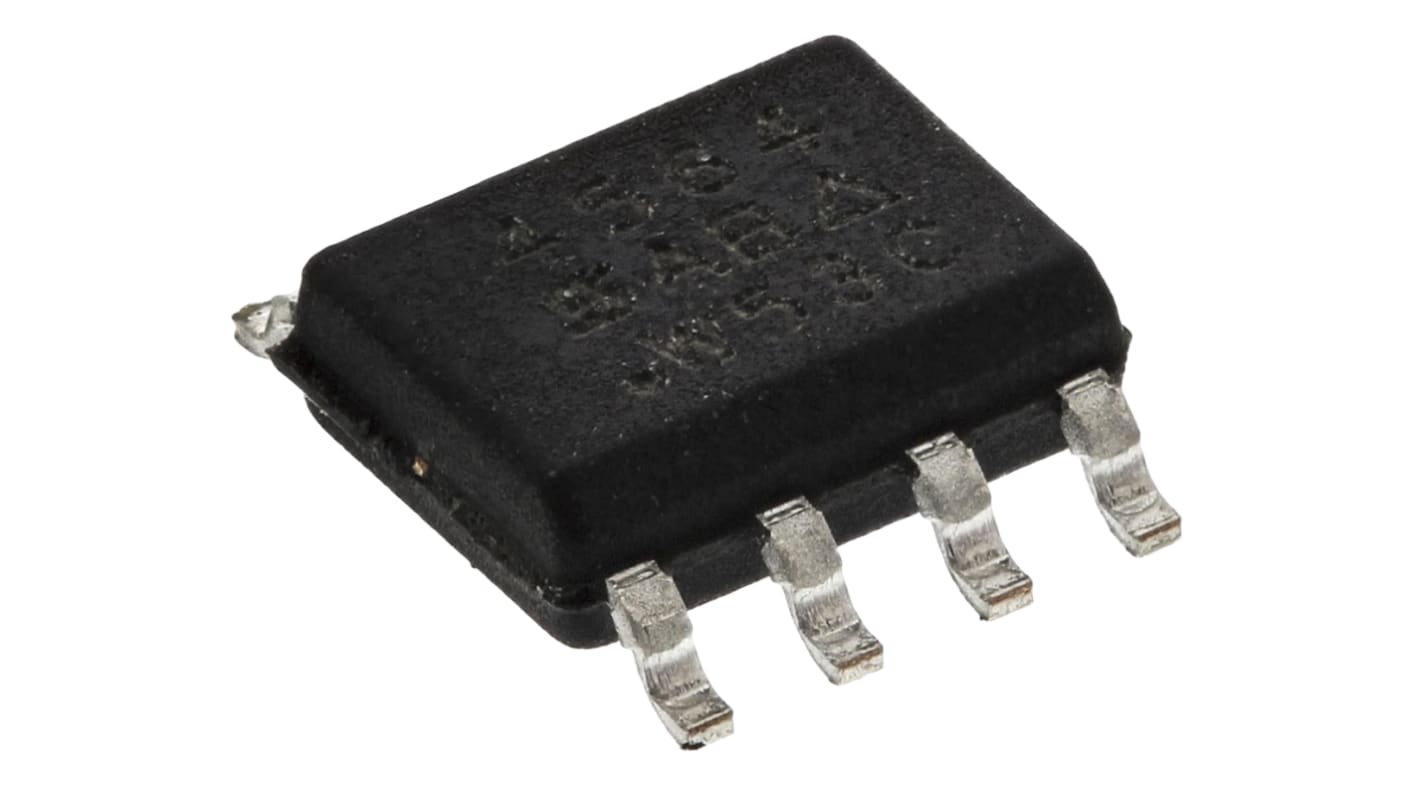

Vishay Isolated TrenchFET 2 Type N, Type P-Channel MOSFET, 8 A, 40 V Enhancement, 8-Pin SOIC SI4564DY-T1-GE3
- RS Stock No.:
- 812-3230
- Mfr. Part No.:
- SI4564DY-T1-GE3
- Brand:
- Vishay
Subtotal (1 pack of 10 units)*
£7.98
(exc. VAT)
£9.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 32,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.798 | £7.98 |
*price indicative
- RS Stock No.:
- 812-3230
- Mfr. Part No.:
- SI4564DY-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N, Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 8A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Series | TrenchFET | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 20mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 3.2W | |
| Typical Gate Charge Qg @ Vgs | 20.5nC | |
| Minimum Operating Temperature | 150°C | |
| Transistor Configuration | Isolated | |
| Maximum Operating Temperature | -55°C | |
| Standards/Approvals | No | |
| Length | 5mm | |
| Height | 1.55mm | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N, Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 8A | ||
Maximum Drain Source Voltage Vds 40V | ||
Series TrenchFET | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 20mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 3.2W | ||
Typical Gate Charge Qg @ Vgs 20.5nC | ||
Minimum Operating Temperature 150°C | ||
Transistor Configuration Isolated | ||
Maximum Operating Temperature -55°C | ||
Standards/Approvals No | ||
Length 5mm | ||
Height 1.55mm | ||
Number of Elements per Chip 2 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Dual N/P-Channel MOSFET, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
