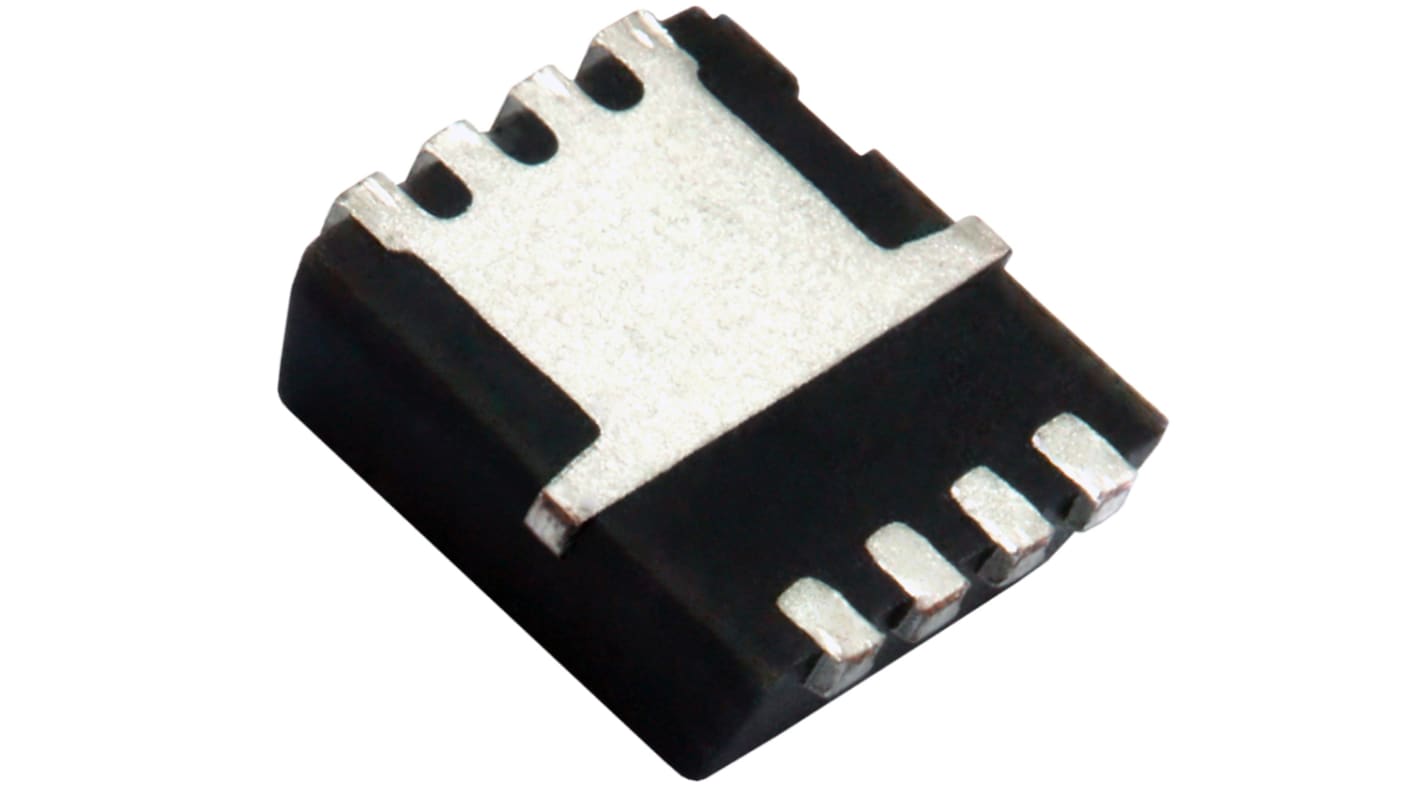

Vishay SIS Type N-Channel MOSFET, 8.8 A, 100 V Enhancement, 8-Pin PowerPAK 1212-8 SIS112LDN-T1-GE3
- RS Stock No.:
- 268-8339
- Mfr. Part No.:
- SIS112LDN-T1-GE3
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£756.00
(exc. VAT)
£906.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6,000 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.252 | £756.00 |
*price indicative
- RS Stock No.:
- 268-8339
- Mfr. Part No.:
- SIS112LDN-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 8.8A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Series | SIS | |
| Package Type | PowerPAK 1212-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.119Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 19.8W | |
| Typical Gate Charge Qg @ Vgs | 11.8nC | |
| Maximum Operating Temperature | 150°C | |
| Length | 3.3mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 8.8A | ||
Maximum Drain Source Voltage Vds 100V | ||
Series SIS | ||
Package Type PowerPAK 1212-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.119Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 19.8W | ||
Typical Gate Charge Qg @ Vgs 11.8nC | ||
Maximum Operating Temperature 150°C | ||
Length 3.3mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Vishay N channel TrenchFET generation 4 power MOSFET is single configuration MOSFET. It is lead free and halogen free and It is used an application as primary side switch, motor drive switch and boost converter.
Tuned for the lowest figure of merit
ROHS compliant
UIS tested 100 percent
