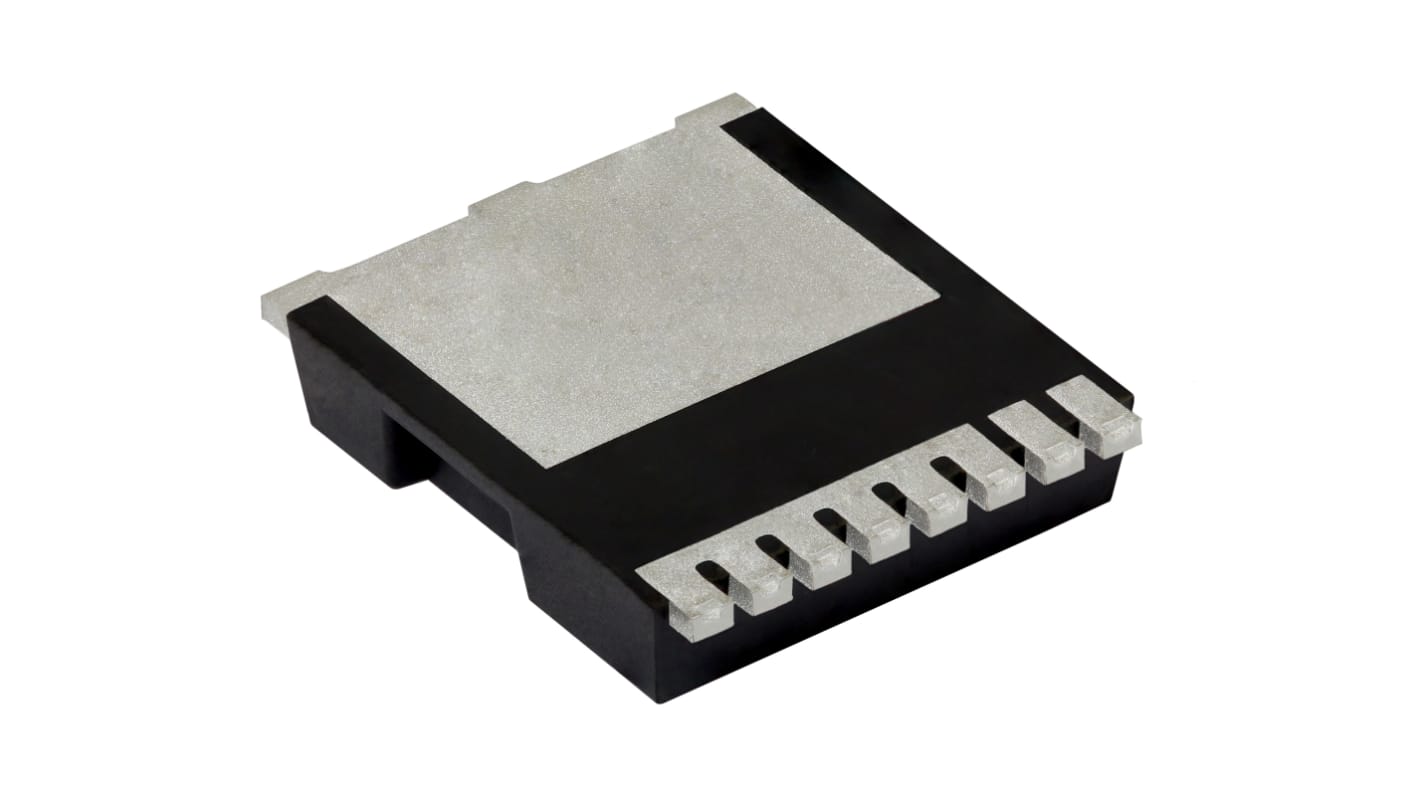

Vishay SIHK Type N-Channel MOSFET, 21 A, 650 V Enhancement, 8-Pin PowerPAK 10 x 12 SIHK125N60EF-T1GE3
- RS Stock No.:
- 268-8313
- Mfr. Part No.:
- SIHK125N60EF-T1GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 2 units)*
£8.32
(exc. VAT)
£9.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,996 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 48 | £4.16 | £8.32 |
| 50 - 98 | £3.74 | £7.48 |
| 100 - 248 | £3.065 | £6.13 |
| 250 + | £3.005 | £6.01 |
*price indicative
- RS Stock No.:
- 268-8313
- Mfr. Part No.:
- SIHK125N60EF-T1GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 21A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Series | SIHK | |
| Package Type | PowerPAK 10 x 12 | |
| Mount Type | PCB | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.125Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | ±30 V | |
| Forward Voltage Vf | 1.2V | |
| Maximum Power Dissipation Pd | 132W | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 45nC | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Length | 9.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 21A | ||
Maximum Drain Source Voltage Vds 650V | ||
Series SIHK | ||
Package Type PowerPAK 10 x 12 | ||
Mount Type PCB | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.125Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs ±30 V | ||
Forward Voltage Vf 1.2V | ||
Maximum Power Dissipation Pd 132W | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 45nC | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Length 9.9mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Vishay power MOSFET with fast body diode and 4th generation E series technology has reduced switching and conduction losses and it is used in applications such as switch mode power supplies, server power supplies and power factor correction power supp
Low effective capacitance
Avalanche energy rated
Low figure of merit
