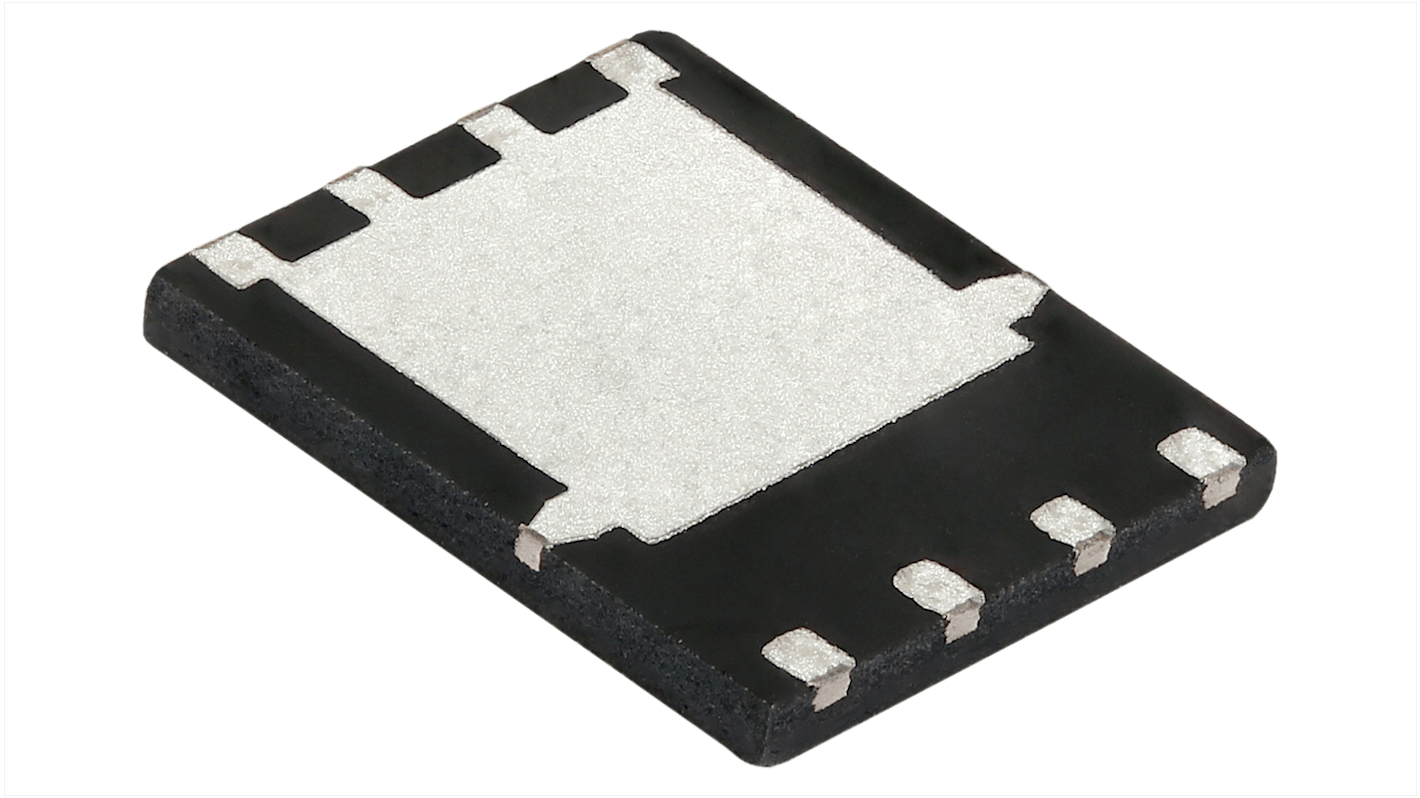

Vishay SIDR Type N-Channel MOSFET, 227 A, 60 V Enhancement, 8-Pin PowerPAK SO-8DC SIDR626EP-T1-RE3
- RS Stock No.:
- 268-8284
- Mfr. Part No.:
- SIDR626EP-T1-RE3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 268-8284
- Mfr. Part No.:
- SIDR626EP-T1-RE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 227A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | PowerPAK SO-8DC | |
| Series | SIDR | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.00174Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Typical Gate Charge Qg @ Vgs | 102nC | |
| Maximum Power Dissipation Pd | 150W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Length | 5.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 227A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type PowerPAK SO-8DC | ||
Series SIDR | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.00174Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Typical Gate Charge Qg @ Vgs 102nC | ||
Maximum Power Dissipation Pd 150W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Length 5.15mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Vishay N channel TrenchFET generation 4 power MOSFET has TOP side cooling feature provides additional venue for thermal transfer. It is used in applications such as synchronous rectification, motor drive switch, battery and load switch.
Tuned for the lowest figure of merit
ROHS compliant
UIS tested 100 percent
