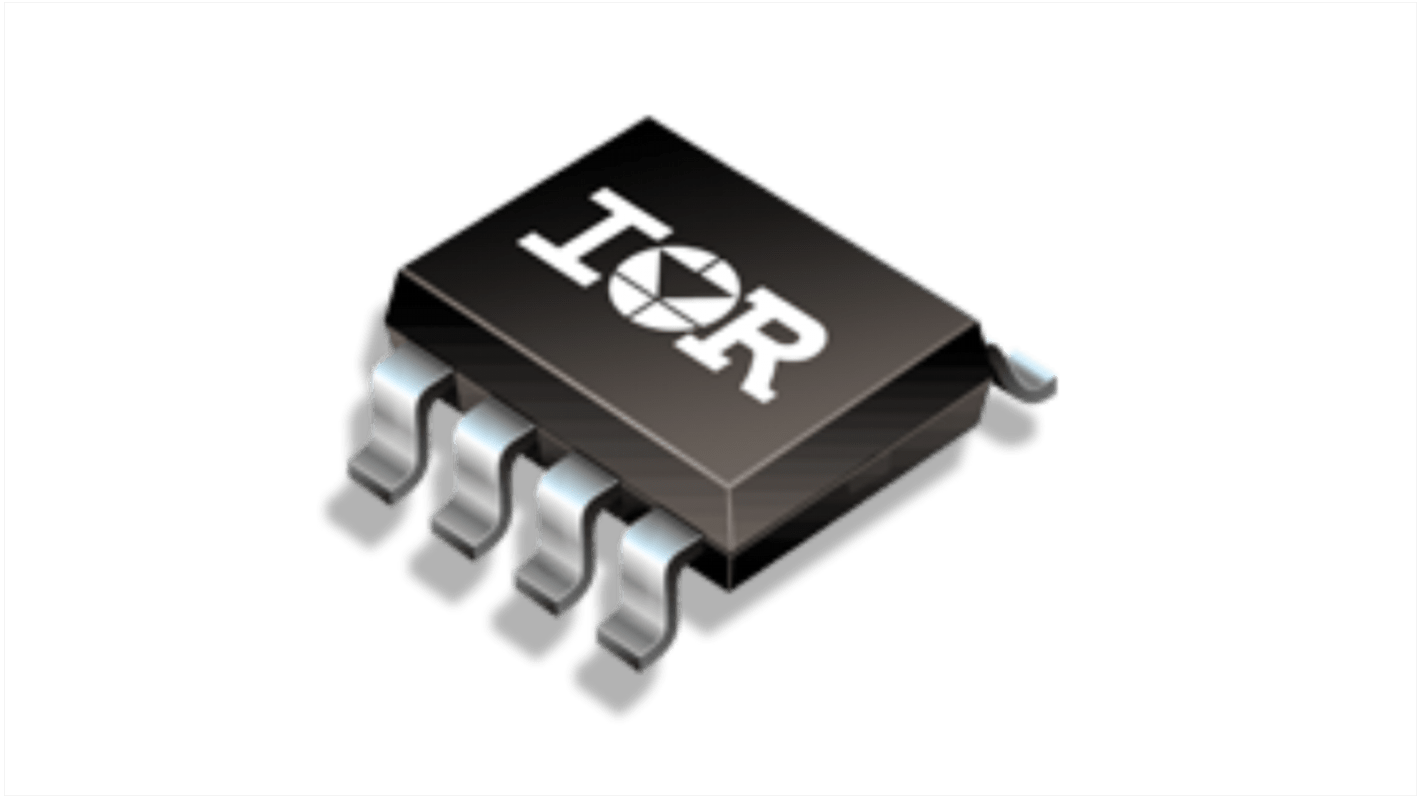

Infineon HEXFET Type N-Channel MOSFET, 6.5 A, 30 V SO-8 IRF7313TRPBF
- RS Stock No.:
- 257-9301
- Mfr. Part No.:
- IRF7313TRPBF
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£4.55
(exc. VAT)
£5.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,280 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.455 | £4.55 |
| 100 - 240 | £0.432 | £4.32 |
| 250 - 490 | £0.423 | £4.23 |
| 500 - 990 | £0.396 | £3.96 |
| 1000 + | £0.319 | £3.19 |
*price indicative
- RS Stock No.:
- 257-9301
- Mfr. Part No.:
- IRF7313TRPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 6.5A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Series | HEXFET | |
| Package Type | SO-8 | |
| Maximum Drain Source Resistance Rds | 46mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 2W | |
| Typical Gate Charge Qg @ Vgs | 22nC | |
| Forward Voltage Vf | 0.78V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 6.5A | ||
Maximum Drain Source Voltage Vds 30V | ||
Series HEXFET | ||
Package Type SO-8 | ||
Maximum Drain Source Resistance Rds 46mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 2W | ||
Typical Gate Charge Qg @ Vgs 22nC | ||
Forward Voltage Vf 0.78V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Infineon IRF series is the 30V dual n channel HEXFET power mosfet in a SO 8 package.
RoHS compliant
Low RDS(on)
Dynamic dv/dt rating
Fast switching
Dual n channel mosfet
