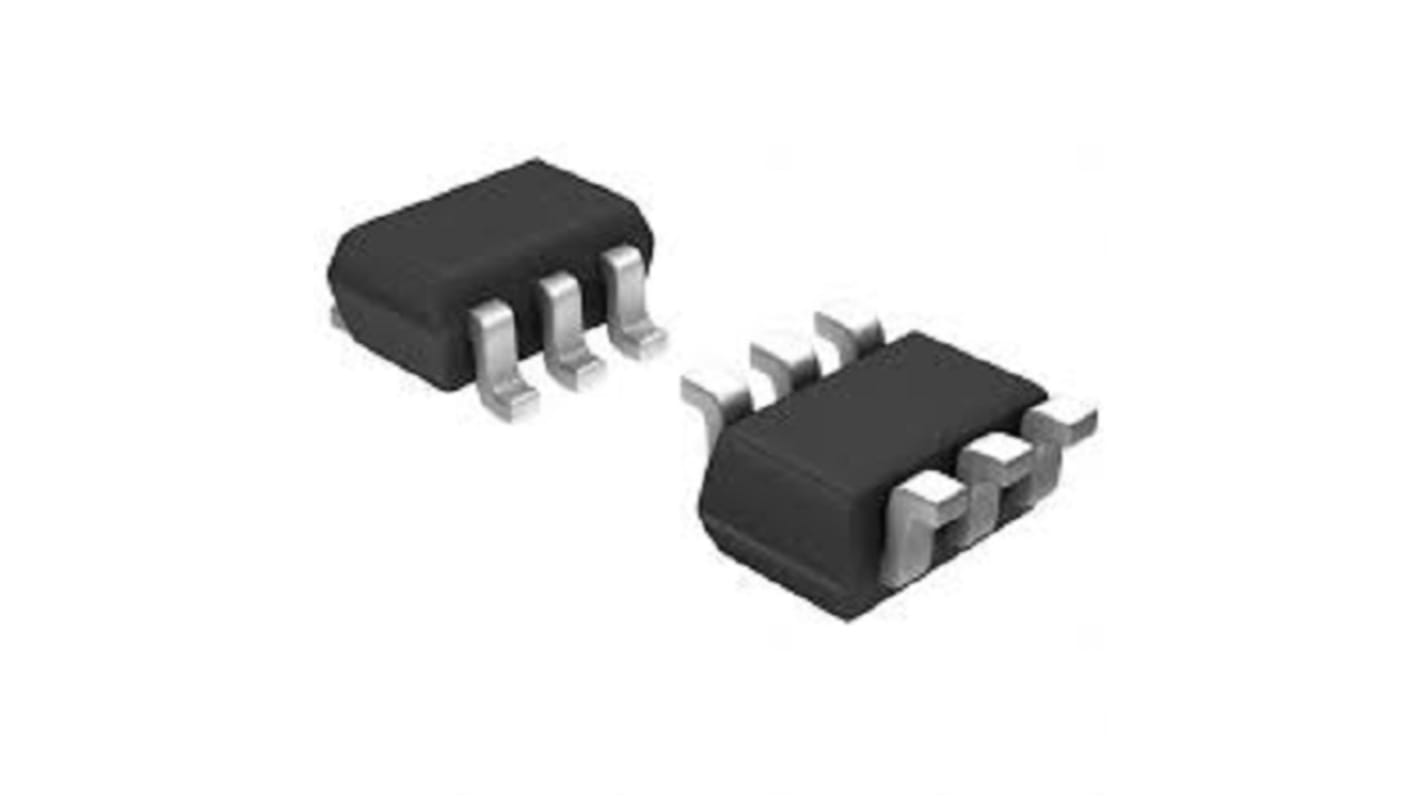

Infineon BSD235C 2 Type N, Type P-Channel MOSFET, 0.95 A, 20 V Enhancement, 6-Pin SOT-363
- RS Stock No.:
- 250-0522
- Mfr. Part No.:
- BSD235CH6327XTSA1
- Brand:
- Infineon
Subtotal (1 reel of 3000 units)*
£141.00
(exc. VAT)
£168.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.047 | £141.00 |
*price indicative
- RS Stock No.:
- 250-0522
- Mfr. Part No.:
- BSD235CH6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N, Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 0.95A | |
| Maximum Drain Source Voltage Vds | 20V | |
| Package Type | SOT-363 | |
| Series | BSD235C | |
| Pin Count | 6 | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.1V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 0.5W | |
| Maximum Gate Source Voltage Vgs | ±12 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N, Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 0.95A | ||
Maximum Drain Source Voltage Vds 20V | ||
Package Type SOT-363 | ||
Series BSD235C | ||
Pin Count 6 | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.1V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 0.5W | ||
Maximum Gate Source Voltage Vgs ±12 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Number of Elements per Chip 2 | ||
Automotive Standard AEC-Q101 | ||
The Infineon makes this 20V complementary P + N channel widely used in high-switching applications. It is avalanche rated and halogen-free. This Enhancement mode mosfet offers, super logic level (2.5V rated). The device is Avalanche rated and 100% lead-free.
Super logic level with 2.5 V rating
Operating temperature is 150°C
