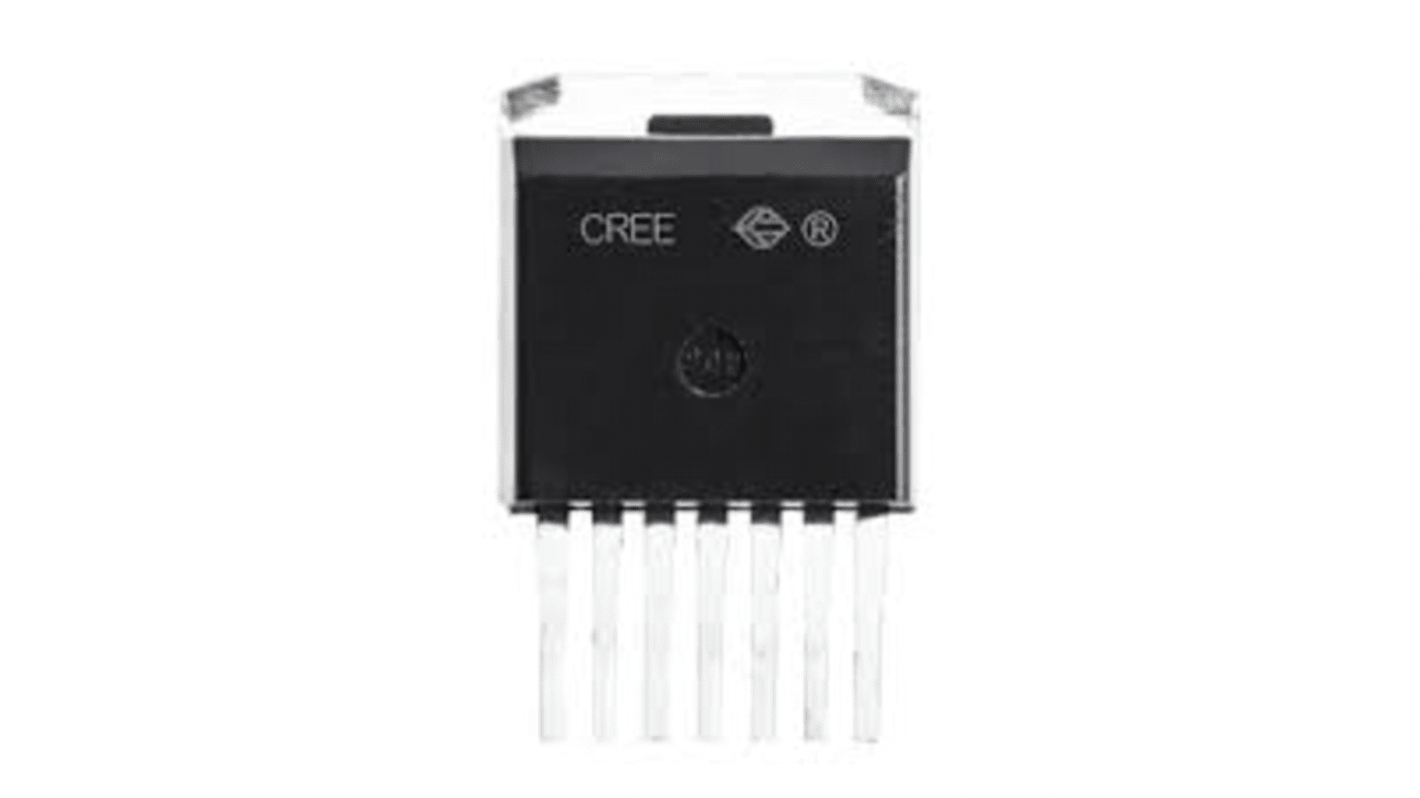

Wolfspeed N-Channel MOSFET, 36 A, 650 V, 7-Pin D2PAK C3M0060065J
- RS Stock No.:
- 248-8933
- Mfr. Part No.:
- C3M0060065J
- Brand:
- Wolfspeed
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 248-8933
- Mfr. Part No.:
- C3M0060065J
- Brand:
- Wolfspeed
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wolfspeed | |
Channel Type | N | |
Maximum Continuous Drain Current | 36 A | |
Maximum Drain Source Voltage | 650 V | |
Package Type | TO-263-7 | |
Mounting Type | Surface Mount | |
Pin Count | 7 | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Wolfspeed | ||
Channel Type N | ||
Maximum Continuous Drain Current 36 A | ||
Maximum Drain Source Voltage 650 V | ||
Package Type TO-263-7 | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Number of Elements per Chip 1 | ||
The Wolfspeed Silicon Carbide Power MOSFET C3MTM MOSFET Technology is in N-Channel Enhancement Mode. The wolfspeeds Z-Fet™, C2M™ & C3M™ Silicon Carbide Power MOSFETs is a range of second generation SiC MOSFETs from Cree's power division Wolfspeed which deliver industry-leading power density and switching efficiency. These low-capacitance devices allow higher switching frequencies and have reduced cooling requirements improving overall system operating efficiency.
3rd Generation SiC MOSFET technology
Low inductance package with driver source pin
7mm of creepage distance between drain and source
High blocking voltage with low on-resistance
High speed switching with low capacitances
Fast intrinsic diode with low reverse recovery (Qrr)
Halogen free, RoHS compliant
Low inductance package with driver source pin
7mm of creepage distance between drain and source
High blocking voltage with low on-resistance
High speed switching with low capacitances
Fast intrinsic diode with low reverse recovery (Qrr)
Halogen free, RoHS compliant
