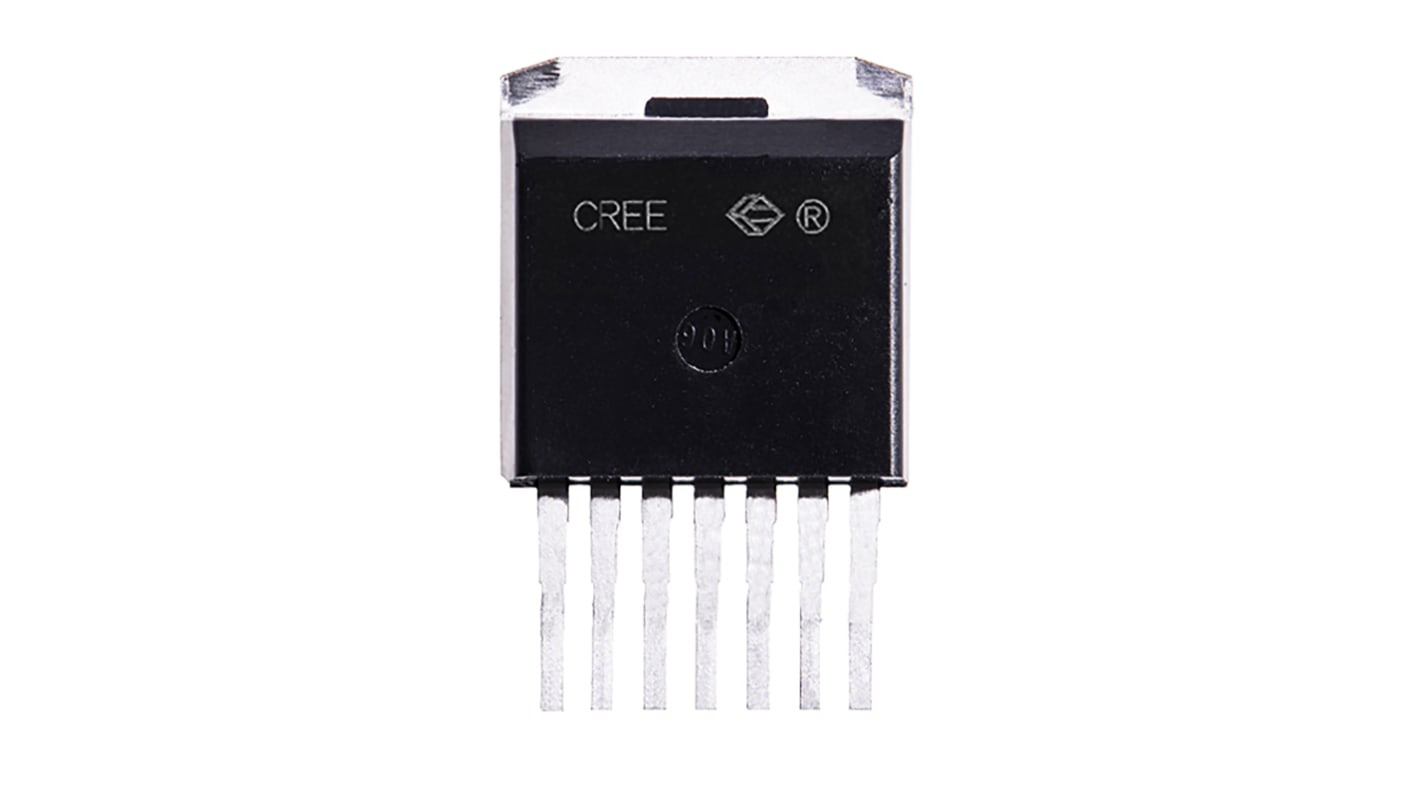

Wolfspeed SiC N-Channel MOSFET, 30 A, 1200 V, 7-Pin D2PAK C3M0075120J
- RS Stock No.:
- 192-3373
- Mfr. Part No.:
- C3M0075120J
- Brand:
- Wolfspeed
Subtotal (1 tube of 50 units)*
£603.75
(exc. VAT)
£724.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £12.075 | £603.75 |
*price indicative
- RS Stock No.:
- 192-3373
- Mfr. Part No.:
- C3M0075120J
- Brand:
- Wolfspeed
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wolfspeed | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 30 A | |
| Maximum Drain Source Voltage | 1200 V | |
| Package Type | TO-263-7 | |
| Mounting Type | Surface Mount | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance | 75 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.6V | |
| Minimum Gate Threshold Voltage | 1.8V | |
| Maximum Power Dissipation | 113.6 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -8 V, 19 V | |
| Width | 9.12mm | |
| Number of Elements per Chip | 1 | |
| Length | 10.23mm | |
| Maximum Operating Temperature | +150 °C | |
| Typical Gate Charge @ Vgs | 48 nC @ 4/15V | |
| Transistor Material | SiC | |
| Minimum Operating Temperature | -55 °C | |
| Height | 4.57mm | |
Select all | ||
|---|---|---|
Brand Wolfspeed | ||
Channel Type N | ||
Maximum Continuous Drain Current 30 A | ||
Maximum Drain Source Voltage 1200 V | ||
Package Type TO-263-7 | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Maximum Drain Source Resistance 75 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.6V | ||
Minimum Gate Threshold Voltage 1.8V | ||
Maximum Power Dissipation 113.6 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -8 V, 19 V | ||
Width 9.12mm | ||
Number of Elements per Chip 1 | ||
Length 10.23mm | ||
Maximum Operating Temperature +150 °C | ||
Typical Gate Charge @ Vgs 48 nC @ 4/15V | ||
Transistor Material SiC | ||
Minimum Operating Temperature -55 °C | ||
Height 4.57mm | ||
Wolfspeed extends its leadership in SiC technology by introducing advanced SiC MOSFET technology in new low inductance discrete packing. The newly released packages allow engineers to take full advantage of the high-frequency capability of the latest C3MTM planar MOSFET chips. Designers can reduce component-count by moving from silicon-based, three-level topologies to simpler two-level topologies made possible by the improved switching performance. This device features low on-resistance combined with a low gate charge, making it ideally suited for three-phase, bridgeless PFC topologies as well as AC-AC converters and chargers.
Minimum of 1200V Vbr across entire operating temperature range
New low-impedance package with driver source
> 7mm of creepage/clearance between drain and source
High-speed switching with low output capacitance
High blocking voltage with low RDS(on)
Fast intrinsic diode with low reverse recovery (Qrr)
Easy to parallel and simple to drive
New low-impedance package with driver source
> 7mm of creepage/clearance between drain and source
High-speed switching with low output capacitance
High blocking voltage with low RDS(on)
Fast intrinsic diode with low reverse recovery (Qrr)
Easy to parallel and simple to drive
