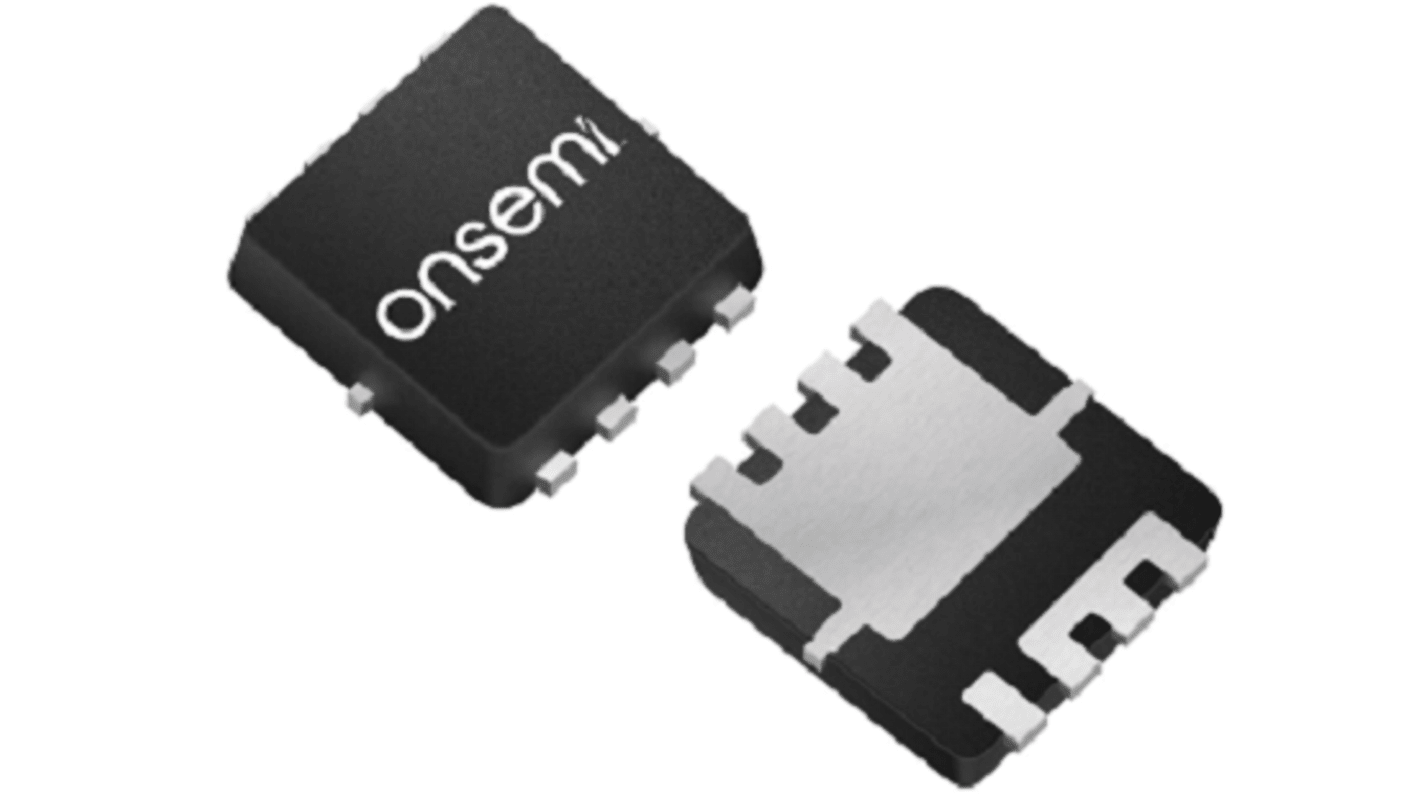

onsemi NTT Type N-Channel MOSFET, 58 A, 1200 V N, 8-Pin WDFN
- RS Stock No.:
- 244-9188
- Mfr. Part No.:
- NTTFS012N10MDTAG
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 244-9188
- Mfr. Part No.:
- NTTFS012N10MDTAG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 58A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Package Type | WDFN | |
| Series | NTT | |
| Mount Type | Through Hole | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 22mΩ | |
| Channel Mode | N | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Maximum Power Dissipation Pd | 117W | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 13nC | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 58A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Package Type WDFN | ||
Series NTT | ||
Mount Type Through Hole | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 22mΩ | ||
Channel Mode N | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Maximum Power Dissipation Pd 117W | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 13nC | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The ON Semiconductor MOSFET used as Primary switch in isolated DC−DC converter, Synchronous Rectification (SR) in DC−DC and AC−DC, AC−DC Adapters (USB PD) SR, Load Switch, Hotswap and O-ring Switch, BLDC Motor and Solar Inverter.
Shielded Gate MOSFET Technology
Low RDS(on) to Minimize Conduction Losses
Low QG and Capacitance to Minimize Driver Losses
Low QRR, Soft Recovery Body Diode
Low QOSS to Improve Light Load Efficiency
These Devices are Pb−Free, Halogen Free/BFR Free, Beryllium Free and are RoHS Compliant
