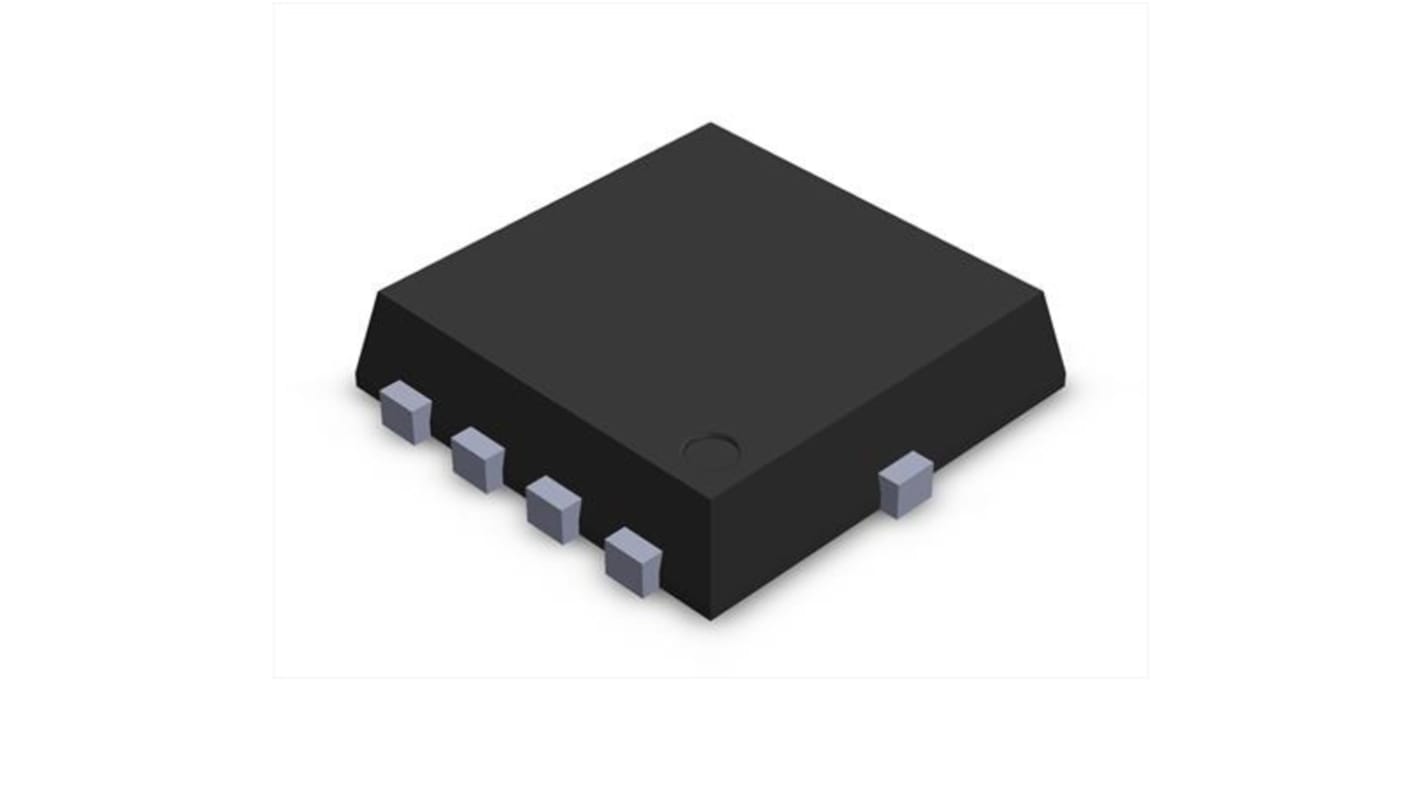

onsemi Type N-Channel MOSFET, 162 A, 30 V N, 8-Pin WDFN NVTFS4C02NWFTAG
- RS Stock No.:
- 229-6508
- Mfr. Part No.:
- NVTFS4C02NWFTAG
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 5 units)*
£11.12
(exc. VAT)
£13.345
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1,495 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.224 | £11.12 |
| 50 - 95 | £1.918 | £9.59 |
| 100 + | £1.662 | £8.31 |
*price indicative
- RS Stock No.:
- 229-6508
- Mfr. Part No.:
- NVTFS4C02NWFTAG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 162A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Package Type | WDFN | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 2.25mΩ | |
| Channel Mode | N | |
| Maximum Power Dissipation Pd | 107W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.1V | |
| Typical Gate Charge Qg @ Vgs | 45nC | |
| Maximum Operating Temperature | 175°C | |
| Width | 0.8 mm | |
| Length | 3.15mm | |
| Standards/Approvals | No | |
| Height | 3.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 162A | ||
Maximum Drain Source Voltage Vds 30V | ||
Package Type WDFN | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 2.25mΩ | ||
Channel Mode N | ||
Maximum Power Dissipation Pd 107W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.1V | ||
Typical Gate Charge Qg @ Vgs 45nC | ||
Maximum Operating Temperature 175°C | ||
Width 0.8 mm | ||
Length 3.15mm | ||
Standards/Approvals No | ||
Height 3.15mm | ||
Automotive Standard No | ||
The ON Semiconductor industrial power MOSFET in a 8x8mm flat lead package designed for compact and efficient designs and including high thermal performance. Wettable flank capable for enhanced optical inspection. It is used in reverser battery protection, switching power supplies and power switches.
Compact design
Minimize conduction losses
Minimize driver losses
Enhanced optical inspection
