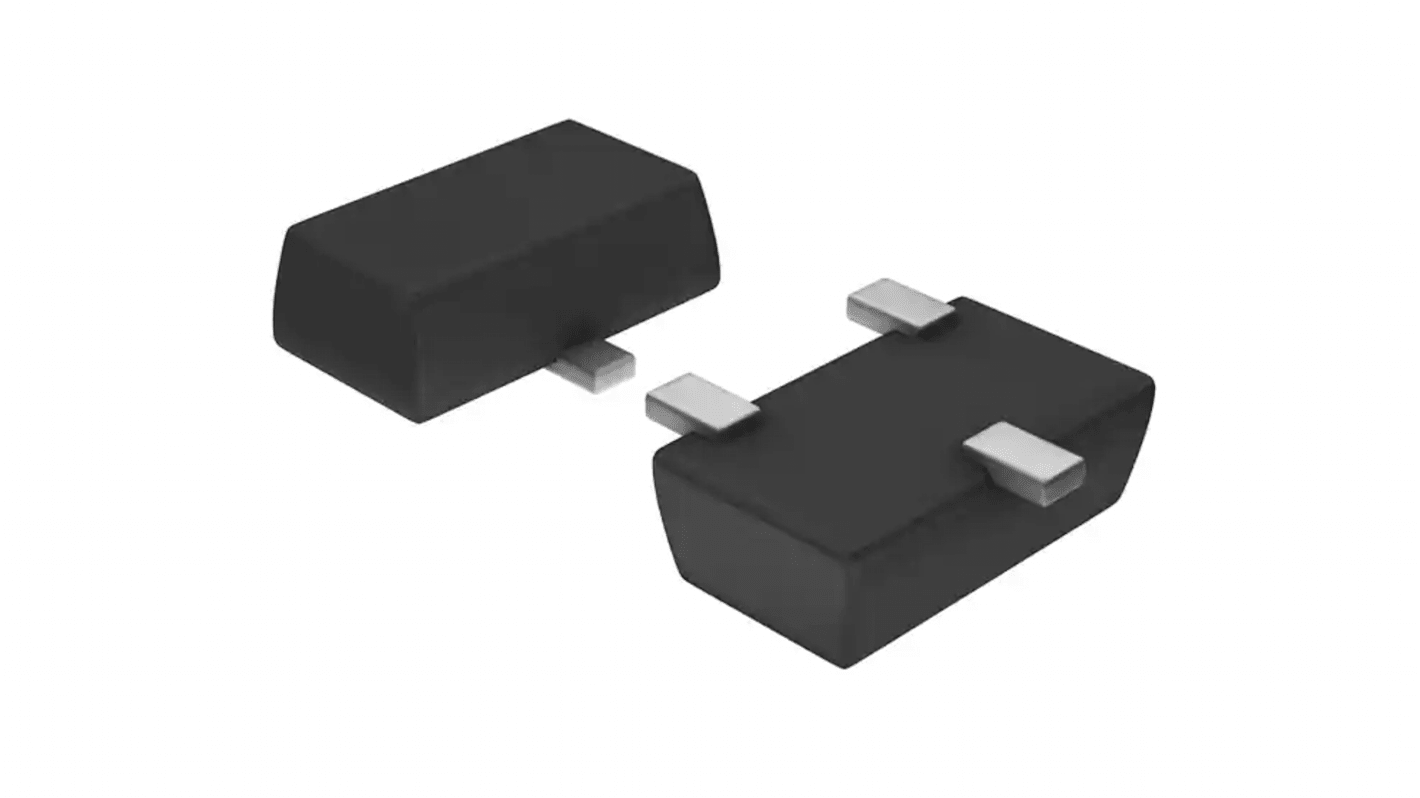

Toshiba Type N-Channel MOSFET, 6 A, 60 V, 3-Pin SOT-23 SSM3K341R,LF(T
- RS Stock No.:
- 236-3579
- Mfr. Part No.:
- SSM3K341R,LF(T
- Brand:
- Toshiba
Subtotal (1 reel of 3000 units)*
£603.00
(exc. VAT)
£723.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.201 | £603.00 |
*price indicative
- RS Stock No.:
- 236-3579
- Mfr. Part No.:
- SSM3K341R,LF(T
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 6A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 43mΩ | |
| Typical Gate Charge Qg @ Vgs | 9.3nC | |
| Maximum Power Dissipation Pd | 2.4W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | -0.9V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Width | 2.9 mm | |
| Length | 2.4mm | |
| Standards/Approvals | No | |
| Height | 0.8mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 6A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 43mΩ | ||
Typical Gate Charge Qg @ Vgs 9.3nC | ||
Maximum Power Dissipation Pd 2.4W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf -0.9V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Width 2.9 mm | ||
Length 2.4mm | ||
Standards/Approvals No | ||
Height 0.8mm | ||
Automotive Standard No | ||
The Toshiba field effect transistor MADE up of the silicon material and having N channel MOS type. It is mainly used in power management switching applications.
Storage temperature range −55 to 150 °C
