Infineon ISC Type N-Channel MOSFET, 288 A, 60 V Enhancement, 8-Pin TDSON
- RS Stock No.:
- 233-4392
- Mfr. Part No.:
- ISC011N06LM5ATMA1
- Brand:
- Infineon
Subtotal (1 reel of 5000 units)*
£5,720.00
(exc. VAT)
£6,865.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £1.144 | £5,720.00 |
*price indicative
- RS Stock No.:
- 233-4392
- Mfr. Part No.:
- ISC011N06LM5ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 288A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TDSON | |
| Series | ISC | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 1.15mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 170nC | |
| Maximum Power Dissipation Pd | 1.89kW | |
| Maximum Operating Temperature | 175°C | |
| Width | 1.2 mm | |
| Standards/Approvals | No | |
| Length | 6.1mm | |
| Height | 5.35mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 288A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TDSON | ||
Series ISC | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 1.15mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 170nC | ||
Maximum Power Dissipation Pd 1.89kW | ||
Maximum Operating Temperature 175°C | ||
Width 1.2 mm | ||
Standards/Approvals No | ||
Length 6.1mm | ||
Height 5.35mm | ||
Automotive Standard No | ||

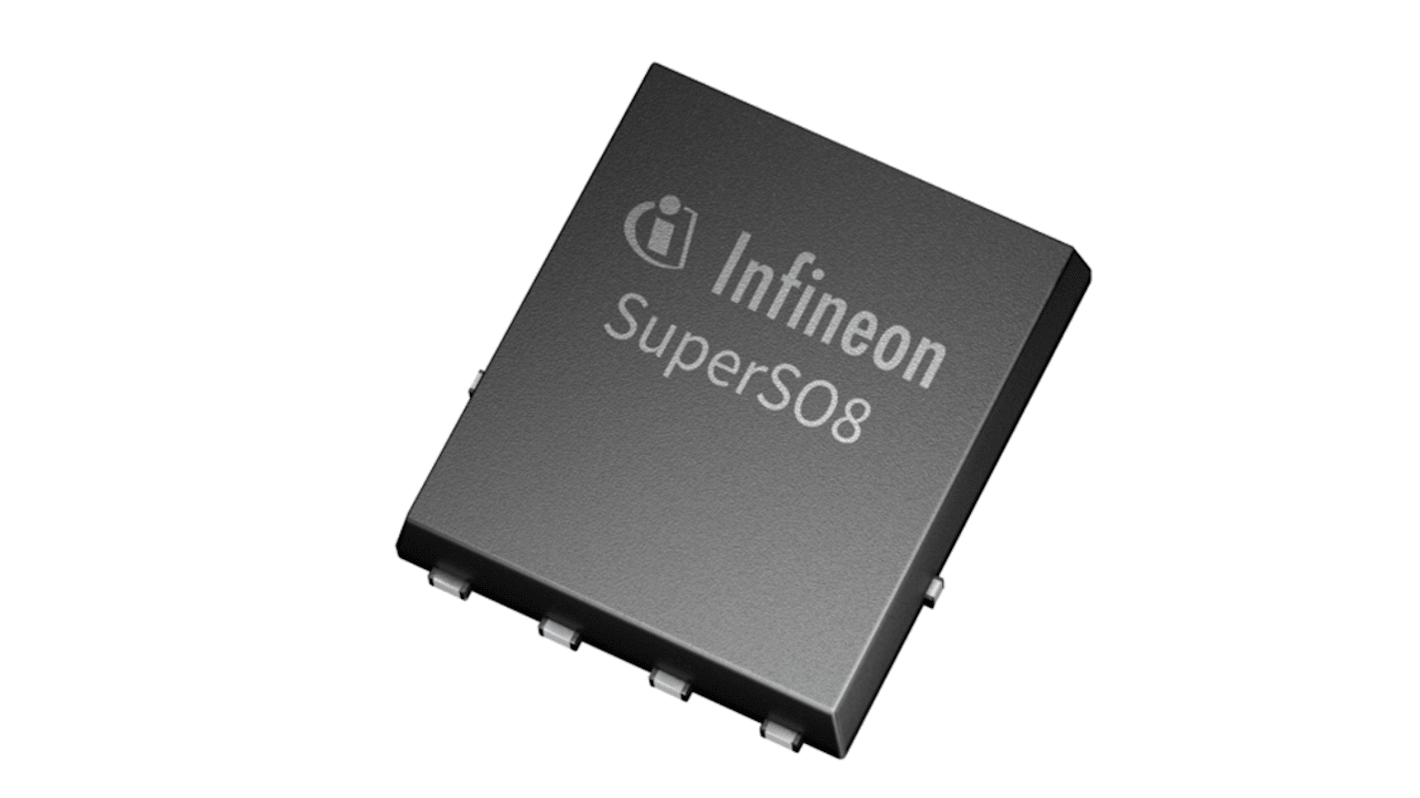

The Infineon MOSFET in the SuperSO8 package extends the OptiMOS 5 and 3 product portfolio and enables higher power density in addition to improved robustness, responding to the need for lower system cost and increased performance. It has low reverse recovery charge (Qrr) which improves the system reliability by providing a significant reduction of voltage overshoot, which minimizes the need for snubber circuits, resulting in less engineering cost and effort.
Higher operating temperature rating to 175°C
Superior thermal performance
