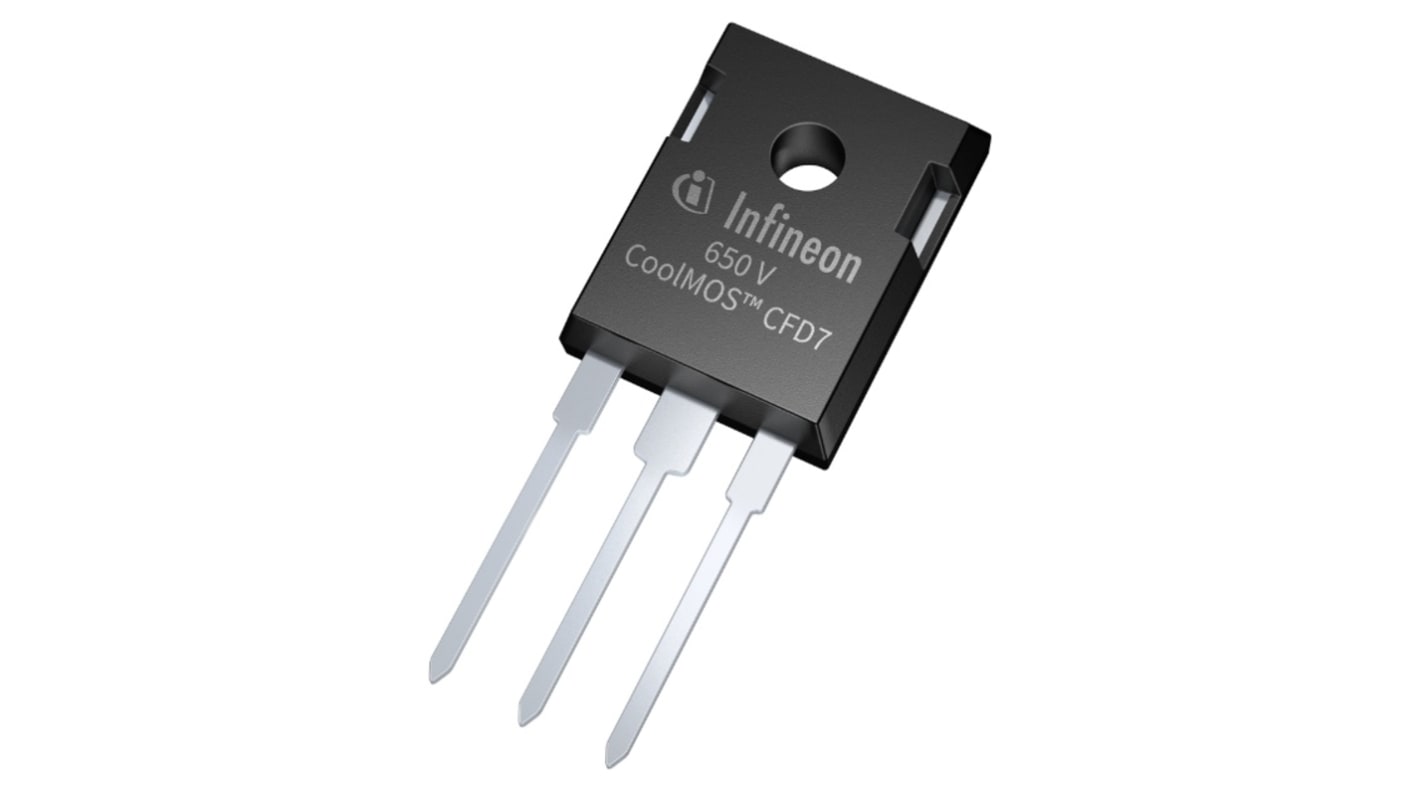

Infineon CoolMOS Type N-Channel MOSFET, 106 A, 650 V, 3-Pin TO-247
- RS Stock No.:
- 232-3048
- Mfr. Part No.:
- IPW65R018CFD7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 30 units)*
£341.85
(exc. VAT)
£410.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 240 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 - 30 | £11.395 | £341.85 |
| 60 + | £10.826 | £324.78 |
*price indicative
- RS Stock No.:
- 232-3048
- Mfr. Part No.:
- IPW65R018CFD7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 106A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Series | CoolMOS | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 18mΩ | |
| Maximum Power Dissipation Pd | 500W | |
| Typical Gate Charge Qg @ Vgs | 234nC | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -40°C | |
| Forward Voltage Vf | 0.9V | |
| Maximum Operating Temperature | 150°C | |
| Height | 21.1mm | |
| Width | 5.21 mm | |
| Length | 16.13mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 106A | ||
Maximum Drain Source Voltage Vds 650V | ||
Series CoolMOS | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 18mΩ | ||
Maximum Power Dissipation Pd 500W | ||
Typical Gate Charge Qg @ Vgs 234nC | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -40°C | ||
Forward Voltage Vf 0.9V | ||
Maximum Operating Temperature 150°C | ||
Height 21.1mm | ||
Width 5.21 mm | ||
Length 16.13mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
The Infineon CFD7 is super junction MOSFET with integrated fast body diode in TO-247 package is the perfect choice for resonant high power topologies. The CoolMOS CFD7 technology meets highest efficiency and reliability standards and further more supports high power density solutions.
Ultrafast body diode and very low Qrr
650V breakdown voltage
Significantly reduced switching losses compared to competition
