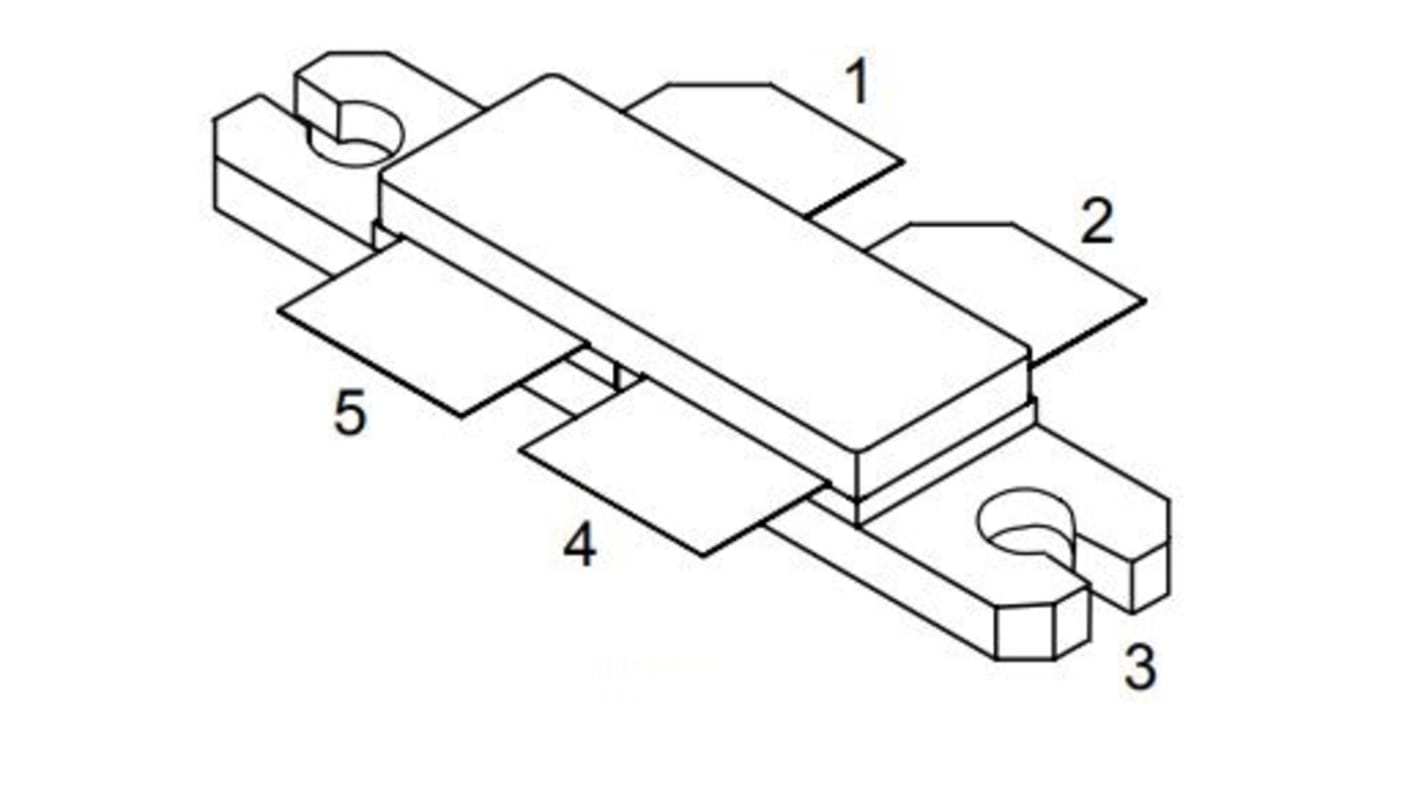

STMicroelectronics Single RF3L Type N-Channel MOSFET, 90 V Enhancement, 5-Pin LBB
- RS Stock No.:
- 230-0089
- Mfr. Part No.:
- RF3L05250CB4
- Brand:
- STMicroelectronics
Subtotal (1 reel of 100 units)*
£14,195.10
(exc. VAT)
£17,034.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 + | £141.951 | £14,195.10 |
*price indicative
- RS Stock No.:
- 230-0089
- Mfr. Part No.:
- RF3L05250CB4
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Operating Frequency | 650 MHz | |
| Maximum Drain Source Voltage Vds | 90V | |
| Series | RF3L | |
| Package Type | LBB | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Channel Mode | Enhancement | |
| Transistor Configuration | Single | |
| Maximum Operating Temperature | 200°C | |
| Height | 4.85mm | |
| Width | 16.51 mm | |
| Length | 28.95mm | |
| Standards/Approvals | RoHS | |
| Typical Power Gain | 18dB | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Operating Frequency 650 MHz | ||
Maximum Drain Source Voltage Vds 90V | ||
Series RF3L | ||
Package Type LBB | ||
Mount Type Surface | ||
Pin Count 5 | ||
Channel Mode Enhancement | ||
Transistor Configuration Single | ||
Maximum Operating Temperature 200°C | ||
Height 4.85mm | ||
Width 16.51 mm | ||
Length 28.95mm | ||
Standards/Approvals RoHS | ||
Typical Power Gain 18dB | ||
Automotive Standard No | ||
The STMicroelectronics RF3L05250CB4 is a 250 W 28/32 V LDMOS FET designed for wide-band communication and ISM applications with frequencies from HF to 1 GHz. It can be used in class AB/B and C for all typical modulation formats.
High efficiency and linear gain operations
Integrated ESD protection
Large positive and negative gate/source voltage range for improved class C operation
