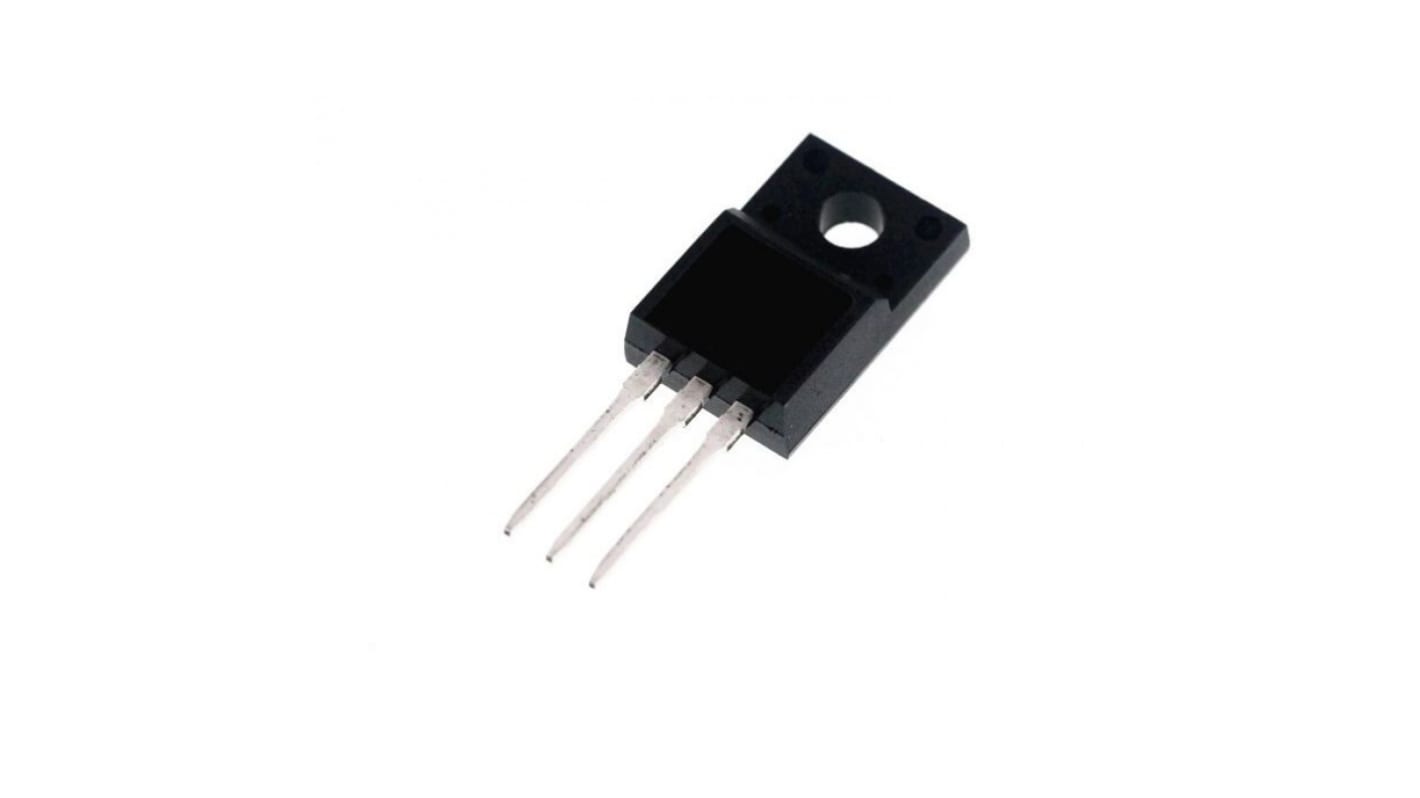

Vishay E Type N-Channel MOSFET, 3 A, 850 V Enhancement, 3-Pin TO-220 SiHA5N80AE-GE3
- RS Stock No.:
- 228-2840
- Mfr. Part No.:
- SiHA5N80AE-GE3
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£7.25
(exc. VAT)
£8.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 855 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.45 | £7.25 |
| 50 - 245 | £1.376 | £6.88 |
| 250 - 495 | £1.302 | £6.51 |
| 500 - 1245 | £1.232 | £6.16 |
| 1250 + | £0.94 | £4.70 |
*price indicative
- RS Stock No.:
- 228-2840
- Mfr. Part No.:
- SiHA5N80AE-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 3A | |
| Maximum Drain Source Voltage Vds | 850V | |
| Package Type | TO-220 | |
| Series | E | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.35Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 29W | |
| Typical Gate Charge Qg @ Vgs | 11nC | |
| Maximum Gate Source Voltage Vgs | 30V | |
| Forward Voltage Vf | 1.2V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 3A | ||
Maximum Drain Source Voltage Vds 850V | ||
Package Type TO-220 | ||
Series E | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.35Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 29W | ||
Typical Gate Charge Qg @ Vgs 11nC | ||
Maximum Gate Source Voltage Vgs 30V | ||
Forward Voltage Vf 1.2V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Vishay Series E Power MOSFET, 850V Drain‑Source Voltage, 3A Maximum Continuous Drain Current - SiHA5N80AE-GE3
This power MOSFET is a high-voltage N-channel enhancement device designed for switching and power-management roles in industrial electronic systems. Supplied in a TO-220 through-hole package with three connections, it suits applications requiring discrete mounting and thermal management. The component operates across a wide temperature range and is constructed to meet RoHS standards.
Features and Benefits:
• 850V maximum drain voltage enables high-voltage switching
• 3A continuous drain current supports moderate load currents
• 1.35Ω drain-source resistance reduces conduction losses
• 29W power dissipation allows sustained thermal loading
• 11nC typical gate charge improves switching efficiency
• ±30V gate-source tolerance protects gate-drive flexibility
• 3A continuous drain current supports moderate load currents
• 1.35Ω drain-source resistance reduces conduction losses
• 29W power dissipation allows sustained thermal loading
• 11nC typical gate charge improves switching efficiency
• ±30V gate-source tolerance protects gate-drive flexibility
Applications
• Suitable for high-voltage switch-mode power supplies
• Ideal for industrial motor-drive front-ends with discrete components
• Used for lighting ballast control in high-voltage systems
• Can be used for inverter-stage switching in power conversion
• Ideal for industrial motor-drive front-ends with discrete components
• Used for lighting ballast control in high-voltage systems
• Can be used for inverter-stage switching in power conversion
What temperature range can it withstand during operation?
It is rated to operate down to -55°C and up to 150°C, permitting use in environments with wide thermal variation.
How does the package choice affect thermal management?
The TO-220 package offers a metal tab suitable for heatsinking, allowing improved heat extraction when mounted to an external cooler.
What gate-drive considerations are necessary for this device?
The gate should be driven within ±30V limits and sized to accommodate an 11nC typical gate charge to ensure reliable switching performance.
Is the device compliant with environmental substance restrictions?
It conforms to RoHS requirements, indicating restriction of certain hazardous substances in its construction.
