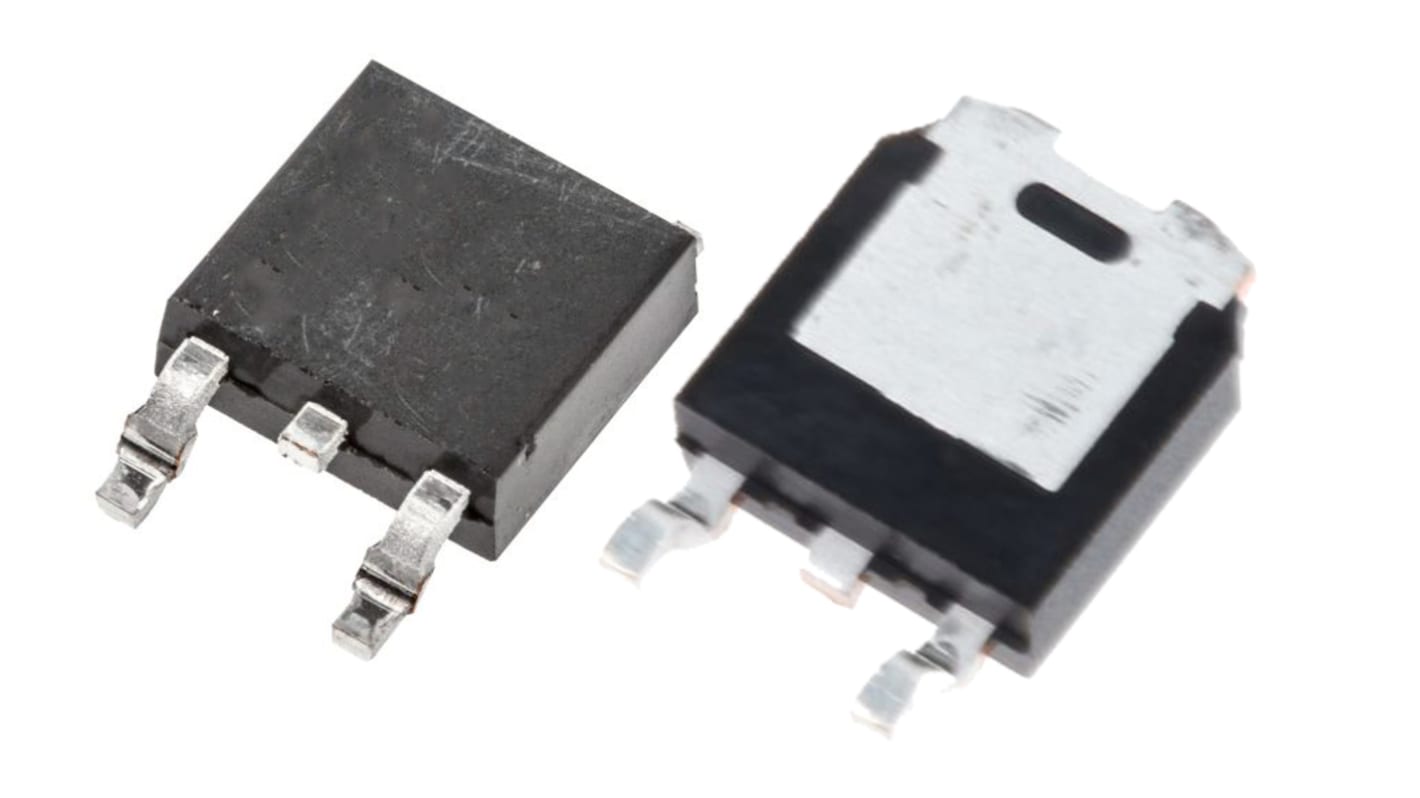

Vishay E Type N-Channel MOSFET, 8 A, 850 V Enhancement, 3-Pin TO-252

RS Stock No.:: 228-2848
Mfr. Part No.:: SIHD11N80AE-T1-GE3
Brand:: Vishay

Vishay E Type N-Channel MOSFET, 8 A, 850 V Enhancement, 3-Pin TO-252

Subtotal (1 reel of 2000 units)*

£1,146.00

(exc. VAT)

£1,376.00

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 27 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2000 +	£0.573	£1,146.00

*price indicative

RS Stock No.:: 228-2848
Mfr. Part No.:: SIHD11N80AE-T1-GE3
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	8A
	Maximum Drain Source Voltage Vds	850V
	Package Type	TO-252
	Series	E
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	450mΩ
	Channel Mode	Enhancement
	Minimum Operating Temperature	-55°C
	Maximum Power Dissipation Pd	78W
	Maximum Gate Source Voltage Vgs	30V
	Typical Gate Charge Qg @ Vgs	28nC
	Forward Voltage Vf	1.2V
	Maximum Operating Temperature	150°C
	Standards/Approvals	No
	Automotive Standard	No

	Select all
	Brand Vishay
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 8A
	Maximum Drain Source Voltage Vds 850V
	Package Type TO-252
	Series E
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 450mΩ
	Channel Mode Enhancement
	Minimum Operating Temperature -55°C
	Maximum Power Dissipation Pd 78W
	Maximum Gate Source Voltage Vgs 30V
	Typical Gate Charge Qg @ Vgs 28nC
	Forward Voltage Vf 1.2V
	Maximum Operating Temperature 150°C
	Standards/Approvals No
	Automotive Standard No

Datasheet - SIHD11N80AE-T1-GE3

Vishay Series E Power MOSFET, 850V Maximum Drain Source Voltage, 8A Maximum Continuous Drain Current - SIHD11N80AE-T1-GE3

This power MOSFET is a high-voltage N-channel switching transistor intended for surface-mount applications in industrial power designs. It operates as an enhancement-mode device and is suited to circuits requiring high drain-to-source voltage capability and moderate continuous current handling within elevated temperature environments.

Features and Benefits:

• 850V maximum drain-to-source voltage enables high-voltage switching applications • 8A continuous drain current supports moderate load-driving requirements • 450mΩ Rds(on) reduces conduction losses in high-voltage circuits • 78W maximum power dissipation permits higher thermal headroom • 30V gate tolerance allows robust gate-drive margins • 28nC typical gate charge aids predictable switching performance

Applications

• Suitable for high-voltage power supplies and converters • Ideal for industrial motor-drive front-ends • Used for electronic ballast and lighting controllers • Can be used for energy-management and power-conditioning modules • Suitable for mid-power inverter stages in automation systems

What mounting format does it use for PCB assembly?

It is supplied in a TO-252 surface-mount package with three pins for PCB soldering.

What temperature range can it withstand during operation?

It is specified for operation from -55°C up to a maximum of 150°C.

How does its gate characteristic affect switching design?

The typical gate charge of 28nC at the rated gate drive informs drive current and switching-loss estimates for gate driver selection.

What is the maximum continuous power the device can dissipate?

The device can dissipate up to 78W under appropriate thermal-management conditions.
