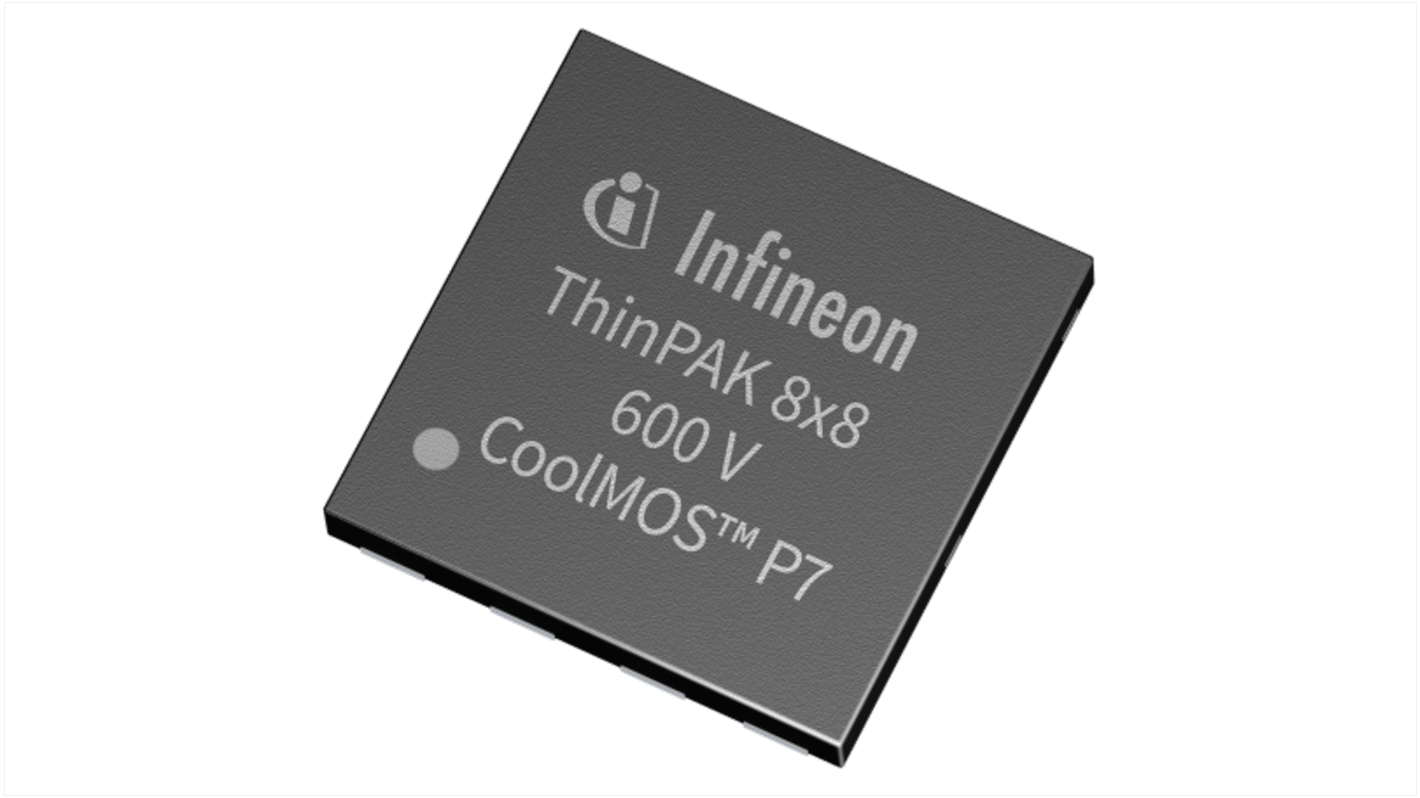

N-Channel MOSFET, 19 A, 600 V, 5-Pin ThinPAK 8 x 8 Infineon IPL60R185P7AUMA1
- RS Stock No.:
- 222-4916
- Mfr. Part No.:
- IPL60R185P7AUMA1
- Brand:
- Infineon
2920 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£2.24
(exc. VAT)
£2.69
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.24 | £11.20 |
| 25 - 45 | £1.792 | £8.96 |
| 50 - 120 | £1.658 | £8.29 |
| 125 - 245 | £1.546 | £7.73 |
| 250 + | £1.434 | £7.17 |
*price indicative
- RS Stock No.:
- 222-4916
- Mfr. Part No.:
- IPL60R185P7AUMA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon 600V CoolMOS™ P7 is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class R onxA and the inherently low gate charge (Q G) of the CoolMOS™ 7th generation platform ensure its high efficiency.
ESD ruggedness of ≥ 2kV (HBM class 2)
Integrated gate resistor R G
Rugged body diode
Wide portfolio in through hole and surface mount packages
Both standard grade and industrial grade parts are available
Integrated gate resistor R G
Rugged body diode
Wide portfolio in through hole and surface mount packages
Both standard grade and industrial grade parts are available
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 19 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | ThinPAK 8 x 8 |
| Series | CoolMOS™ P7 |
| Mounting Type | Surface Mount |
| Pin Count | 5 |
| Maximum Drain Source Resistance | 185 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
