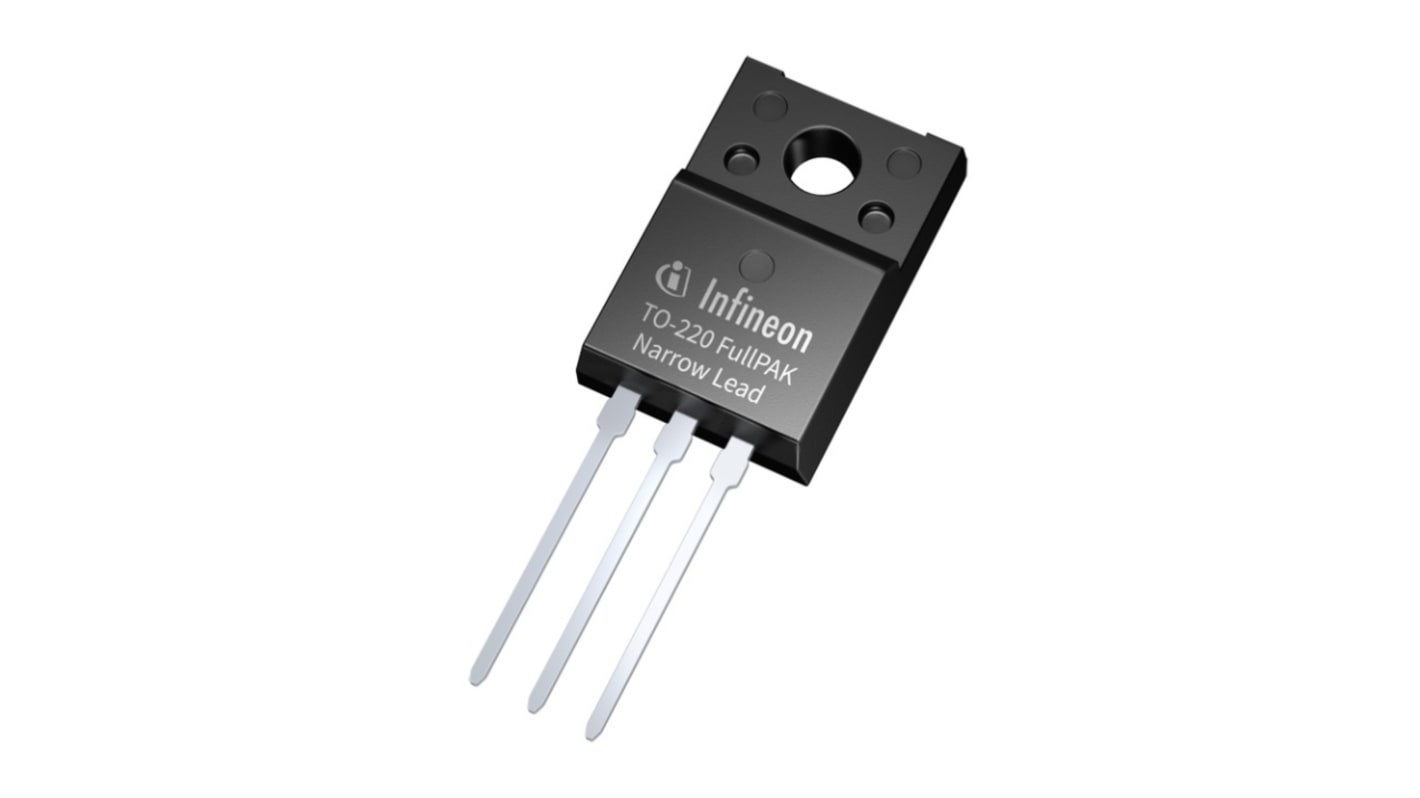

Infineon CoolMOS™ Silicon N-Channel MOSFET, 17 A, 800 V, 3-Pin TO-220 FP IPAN80R280P7XKSA1
- RS Stock No.:
- 222-4648
- Mfr. Part No.:
- IPAN80R280P7XKSA1
- Brand:
- Infineon
Save 15% when you buy 250 units
Subtotal (1 tube of 50 units)*
£90.00
(exc. VAT)
£108.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £1.80 | £90.00 |
| 100 - 200 | £1.62 | £81.00 |
| 250 + | £1.53 | £76.50 |
*price indicative
- RS Stock No.:
- 222-4648
- Mfr. Part No.:
- IPAN80R280P7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 17 A | |
| Maximum Drain Source Voltage | 800 V | |
| Package Type | TO-220 FP | |
| Series | CoolMOS™ | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 0.28 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.5V | |
| Transistor Material | Silicon | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 17 A | ||
Maximum Drain Source Voltage 800 V | ||
Package Type TO-220 FP | ||
Series CoolMOS™ | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.28 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.5V | ||
Transistor Material Silicon | ||
Number of Elements per Chip 1 | ||
The Infineon design of Cool MOS™ P7 series sets a new benchmark in 950V super junction technologies and combines best-in-class performance with state of the art ease-of-use, resulting from Infineon’s over 18 years pioneering super junction technology innovation.
Fully optimized portfolio
Best-in-class Cool MOS™ quality and reliability
Integrated Zener Diode ESD protection
Best-in-class FOM RDS(on) * Eoss
Best-in-class Cool MOS™ quality and reliability
Integrated Zener Diode ESD protection
Best-in-class FOM RDS(on) * Eoss
reduced Qg, Ciss, and Coss
