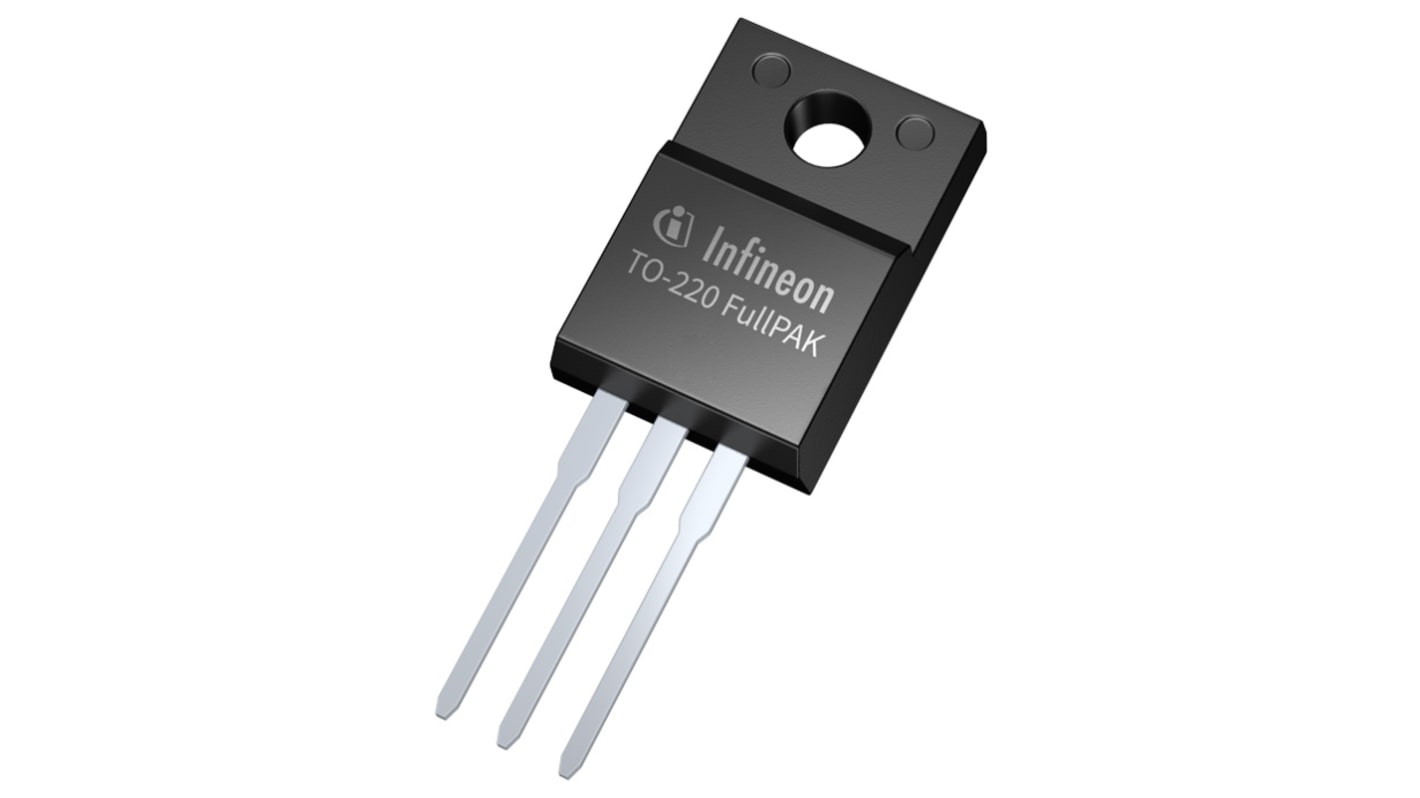

Infineon CoolMOS CE Type N-Channel MOSFET, 5 A, 600 V, 3-Pin TO-220FP
- RS Stock No.:
- 218-3002
- Mfr. Part No.:
- IPA60R1K5CEXKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 50 units)*
£25.30
(exc. VAT)
£30.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £0.506 | £25.30 |
| 100 - 200 | £0.395 | £19.75 |
| 250 - 450 | £0.37 | £18.50 |
| 500 - 1200 | £0.344 | £17.20 |
| 1250 + | £0.319 | £15.95 |
*price indicative
- RS Stock No.:
- 218-3002
- Mfr. Part No.:
- IPA60R1K5CEXKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 5A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | CoolMOS CE | |
| Package Type | TO-220FP | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 1.5Ω | |
| Maximum Power Dissipation Pd | 49W | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Minimum Operating Temperature | -40°C | |
| Typical Gate Charge Qg @ Vgs | 9.4nC | |
| Maximum Operating Temperature | 150°C | |
| Width | 10.65 mm | |
| Length | 13.75mm | |
| Height | 29.75mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 5A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series CoolMOS CE | ||
Package Type TO-220FP | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 1.5Ω | ||
Maximum Power Dissipation Pd 49W | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Minimum Operating Temperature -40°C | ||
Typical Gate Charge Qg @ Vgs 9.4nC | ||
Maximum Operating Temperature 150°C | ||
Width 10.65 mm | ||
Length 13.75mm | ||
Height 29.75mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon 600V CoolMOS™ CE series N-channel power MOSFET. It delivers low conduction and switching losses improving efficiency and ultimately reduces power consumption. This MOSFET is used in PFC stages, hard switching PWM stages and resonant switching stages, for e.g. PC Silverbox, Adapter, LCD & PDP TV and indoor lighting.
Very high commutation ruggedness
Easy to use/drive
Pb-free plating, Halogen free mold compound
