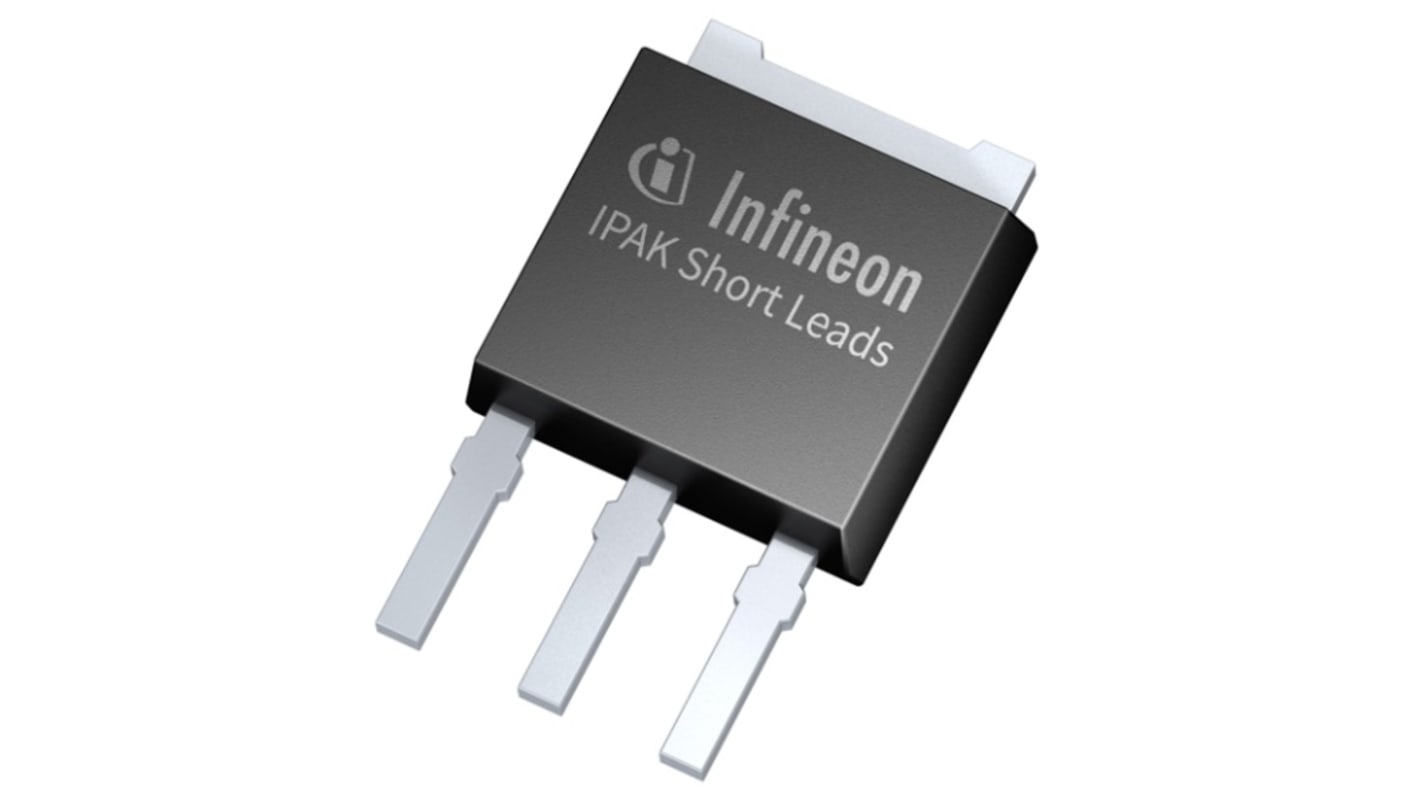

Infineon CoolMOS CE Type N-Channel MOSFET, 2.6 A, 600 V Enhancement, 3-Pin TO-251

RS Stock No.:: 217-2576
Mfr. Part No.:: IPS60R3K4CEAKMA1
Brand:: Infineon

Infineon CoolMOS CE Type N-Channel MOSFET, 2.6 A, 600 V Enhancement, 3-Pin TO-251

Bulk discount available

Subtotal (1 tube of 75 units)*

£13.35

(exc. VAT)

£16.05

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

825 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tube*
75 - 75	£0.178	£13.35
150 - 300	£0.134	£10.05
375 - 675	£0.125	£9.38
750 - 1800	£0.117	£8.78
1875 +	£0.114	£8.55

*price indicative

RS Stock No.:: 217-2576
Mfr. Part No.:: IPS60R3K4CEAKMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	2.6A
	Maximum Drain Source Voltage Vds	600V
	Package Type	TO-251
	Series	CoolMOS CE
	Mount Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance Rds	3.4Ω
	Channel Mode	Enhancement
	Typical Gate Charge Qg @ Vgs	6.7nC
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	38W
	Maximum Gate Source Voltage Vgs	20 V
	Forward Voltage Vf	0.9V
	Maximum Operating Temperature	150°C
	Height	9.82mm
	Standards/Approvals	No
	Width	2.4 mm
	Length	6.73mm
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 2.6A
	Maximum Drain Source Voltage Vds 600V
	Package Type TO-251
	Series CoolMOS CE
	Mount Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance Rds 3.4Ω
	Channel Mode Enhancement
	Typical Gate Charge Qg @ Vgs 6.7nC
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 38W
	Maximum Gate Source Voltage Vgs 20 V
	Forward Voltage Vf 0.9V
	Maximum Operating Temperature 150°C
	Height 9.82mm
	Standards/Approvals No
	Width 2.4 mm
	Length 6.73mm
	Automotive Standard No

Datasheet - IPS60R3K4CEAKMA1

The Infineon CoolMOS™ CE is suitable for hard and soft switching applications and as modern superjunction, it delivers low conduction and switching losses improving efficiency and ultimately reduces power consumption. 600V, 650V and 700V CoolMOS™ CE combine the optimal R DS(on) and package offering suitable in low power chargers for mobile phones and tablets.

Narrow margins between typical and max R DS(on)

Reduced energy stored in output capacitance (E oss)

Good body diode ruggedness and reduced reverse recovery charge (Q rr)

Optimized integrated R g
