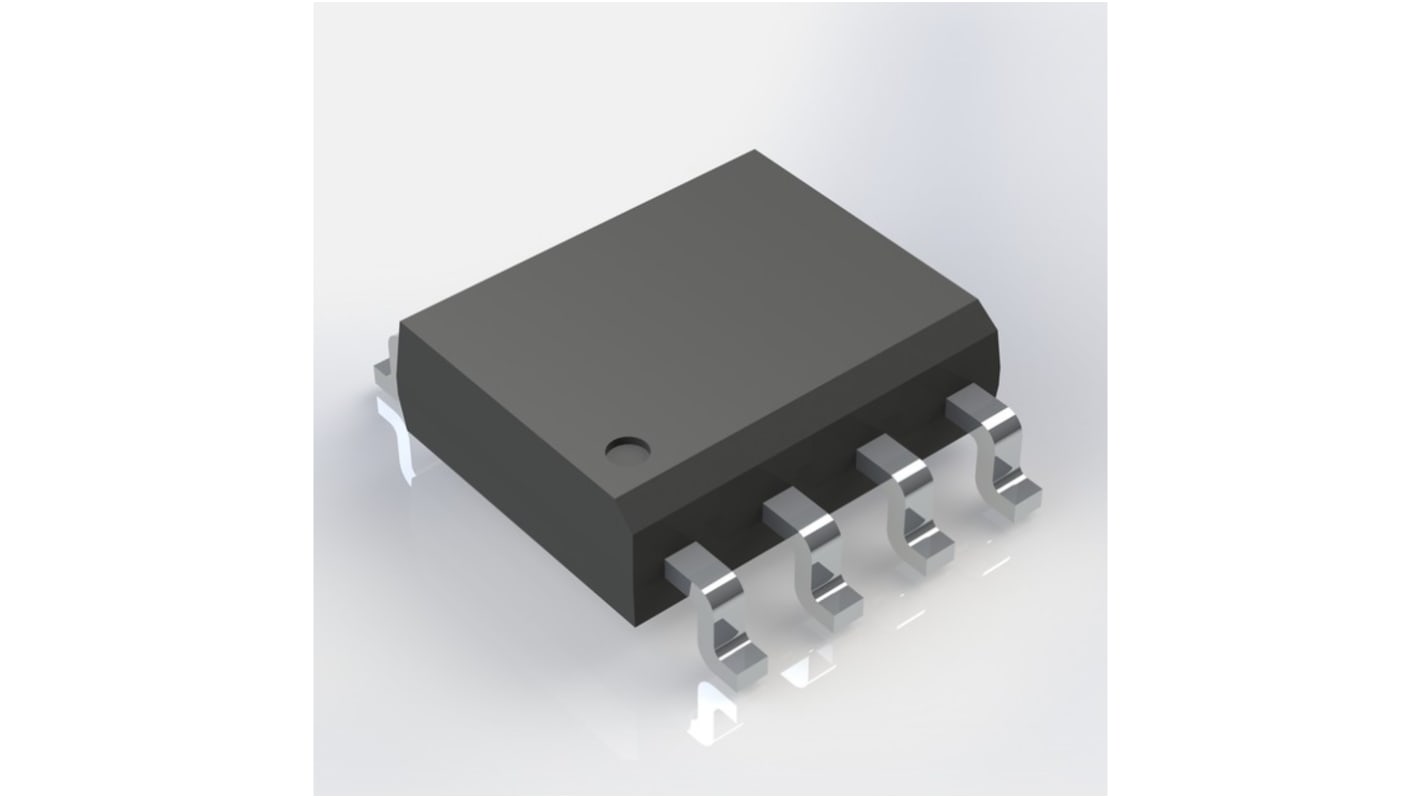

Infineon Dual HEXFET 1 Type N-Channel Power MOSFET, 10 A, 20 V Enhancement, 8-Pin SO-8 IRF8910TRPBF
- RS Stock No.:
- 215-2590
- Mfr. Part No.:
- IRF8910TRPBF
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£14.75
(exc. VAT)
£17.75
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.59 | £14.75 |
| 125 - 225 | £0.56 | £14.00 |
| 250 - 600 | £0.537 | £13.43 |
| 625 - 1225 | £0.513 | £12.83 |
| 1250 + | £0.478 | £11.95 |
*price indicative
- RS Stock No.:
- 215-2590
- Mfr. Part No.:
- IRF8910TRPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | Power MOSFET | |
| Maximum Continuous Drain Current Id | 10A | |
| Maximum Drain Source Voltage Vds | 20V | |
| Series | HEXFET | |
| Package Type | SO-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 13.4mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 7.4nC | |
| Maximum Power Dissipation Pd | 2W | |
| Forward Voltage Vf | 1V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Transistor Configuration | Dual | |
| Height | 1.5mm | |
| Length | 5mm | |
| Standards/Approvals | No | |
| Number of Elements per Chip | 1 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type Power MOSFET | ||
Maximum Continuous Drain Current Id 10A | ||
Maximum Drain Source Voltage Vds 20V | ||
Series HEXFET | ||
Package Type SO-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 13.4mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 7.4nC | ||
Maximum Power Dissipation Pd 2W | ||
Forward Voltage Vf 1V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Transistor Configuration Dual | ||
Height 1.5mm | ||
Length 5mm | ||
Standards/Approvals No | ||
Number of Elements per Chip 1 | ||
Automotive Standard No | ||
The Infineon HEXFET Power MOSFET has 20V maximum drain source voltage in a SO-8 package. It has application as dual SO-8 MOSFET for POL converters in desktop, servers, graphics cards, game consoles and set-top box.
Lead-Free
Low RDS(on)
Ultra-Low Gate Impedance
Dual N-Channel MOSFET
