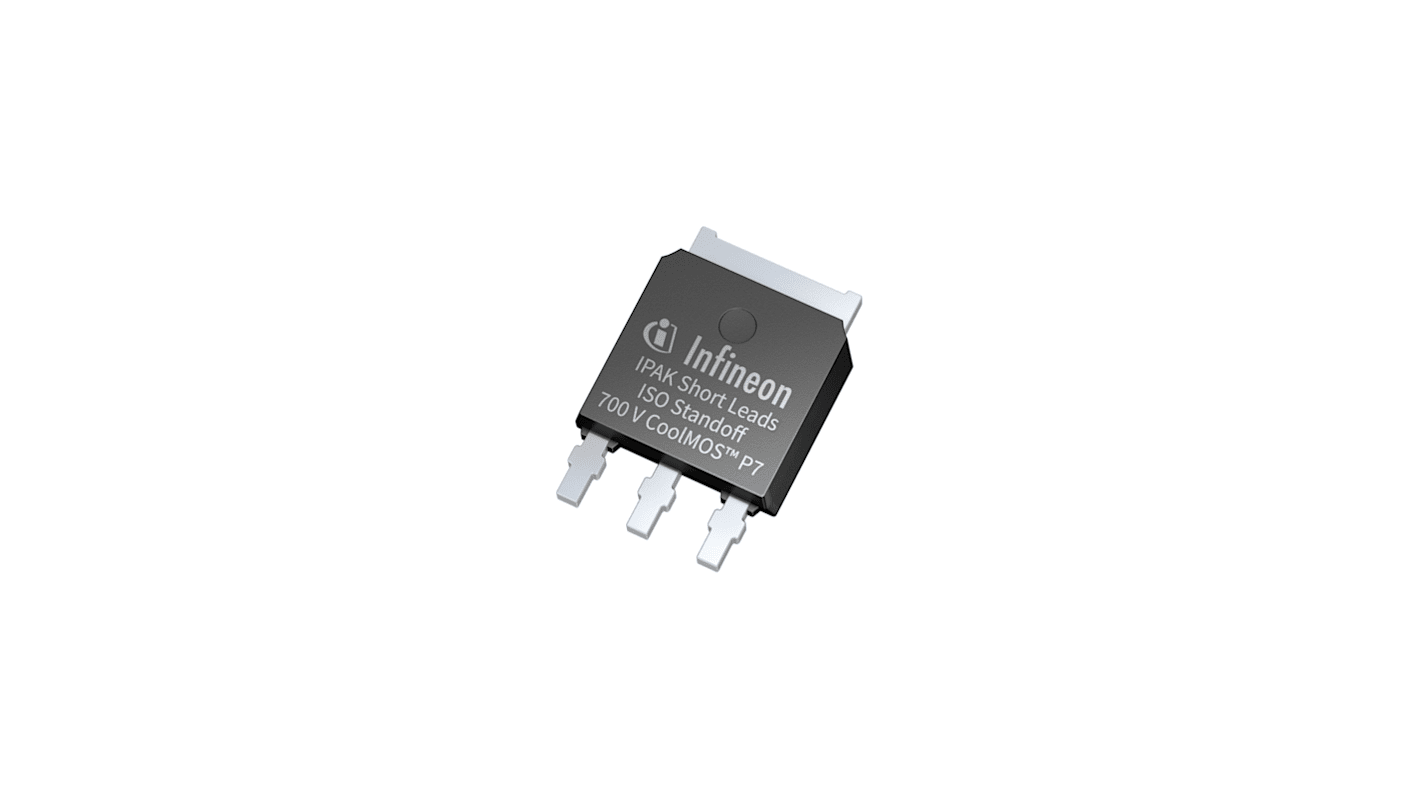

Infineon CoolMOS™ P7 N-Channel MOSFET, 6.5 A, 700 V, 3-Pin IPAK IPSA70R750P7SAKMA1
- RS Stock No.:
- 215-2553
- Mfr. Part No.:
- IPSA70R750P7SAKMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 75 units)*
£20.625
(exc. VAT)
£24.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,975 unit(s) shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 75 - 75 | £0.275 | £20.63 |
| 150 - 300 | £0.212 | £15.90 |
| 375 - 675 | £0.201 | £15.08 |
| 750 - 1800 | £0.196 | £14.70 |
| 1875 + | £0.191 | £14.33 |
*price indicative
- RS Stock No.:
- 215-2553
- Mfr. Part No.:
- IPSA70R750P7SAKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 6.5 A | |
| Maximum Drain Source Voltage | 700 V | |
| Package Type | IPAK SL (TO-251 SL) | |
| Series | CoolMOS™ P7 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 0.75 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.5V | |
| Number of Elements per Chip | 1 | |
| Transistor Material | Si | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 6.5 A | ||
Maximum Drain Source Voltage 700 V | ||
Package Type IPAK SL (TO-251 SL) | ||
Series CoolMOS™ P7 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.75 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.5V | ||
Number of Elements per Chip 1 | ||
Transistor Material Si | ||
The Infineon 700V Cool MOS™ P7 super junction MOSFET series addresses the low power SMPS market, such as mobile phone chargers or notebook adapters by offering fundamental performance gains compared to super junction technologies used today. The technology meets highest efficiency standards and supports high power density, enabling customers going towards very slim designs. The latest CoolMOS™P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc.
Extremely low losses due to very low FOMRDS(on)*Qg and RDS(on)*Eoss
Excellent thermal behaviour
Integrated ESD protection diode
Low switching losses (Eoss)
Excellent thermal behaviour
Integrated ESD protection diode
Low switching losses (Eoss)
