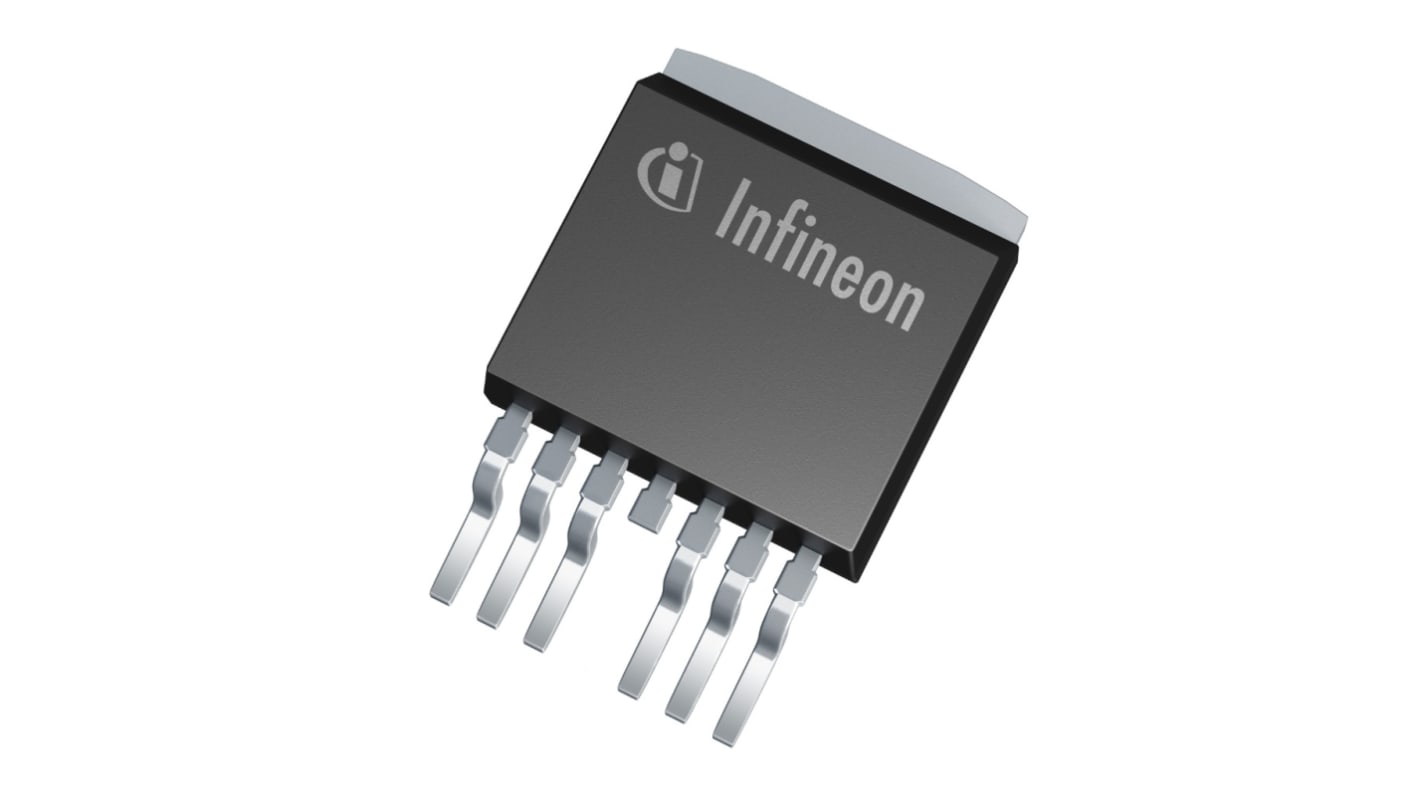

N-Channel MOSFET, 522 A, 40 V, 7-Pin D2PAK Infineon AUIRFS8409-7TRL
- RS Stock No.:
- 215-2454
- Mfr. Part No.:
- AUIRFS8409-7TRL
- Brand:
- Infineon
Available to back order for despatch 19/09/2024
Price Each (In a Pack of 5)
£4.38
(exc. VAT)
£5.26
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £4.38 | £21.90 |
| 10 - 20 | £3.898 | £19.49 |
| 25 - 45 | £3.68 | £18.40 |
| 50 - 120 | £3.416 | £17.08 |
| 125 + | £3.154 | £15.77 |
*price indicative
- RS Stock No.:
- 215-2454
- Mfr. Part No.:
- AUIRFS8409-7TRL
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon Automotive DirectFET® Power MOSFET has 60V maximum drain source voltage with 68A maximum continuous drain current in a D2-Pak 7pin package. specifically designed for automotive application, this HEXFET power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance par silicon area. Additional features of these designs are 175°C junction operating temperature, fast switching speed and improve repetitive avalanche rating. This feature combined to make this product an extremely efficient and reliable device for use in automotive and wide variety of other applications.
Advanced Process Technology
New Ultra Low On-Resistance
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead free
New Ultra Low On-Resistance
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Lead free
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 522 A |
| Maximum Drain Source Voltage | 40 V |
| Series | HEXFET |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 |
| Maximum Drain Source Resistance | 0.00075 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Transistor Material | Si |
| Number of Elements per Chip | 1 |
