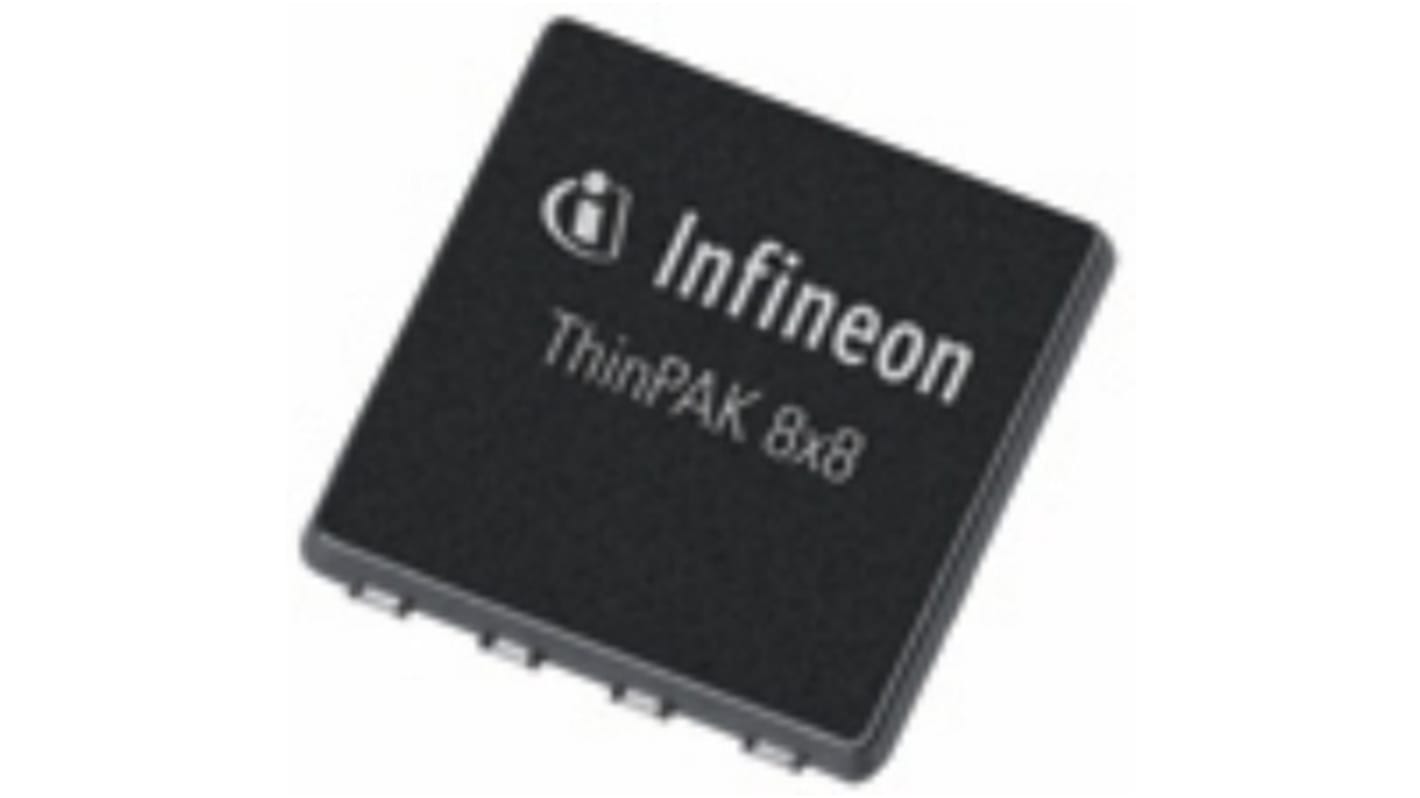

Infineon CoolMOS™ P6 N-Channel MOSFET, 19.2 A, 600 V, 5-Pin ThinkPAK 8 x 8 IPL60R210P6AUMA1
- RS Stock No.:
- 214-9075
- Mfr. Part No.:
- IPL60R210P6AUMA1
- Brand:
- Infineon
Subtotal (1 reel of 3000 units)*
£2,250.00
(exc. VAT)
£2,700.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.75 | £2,250.00 |
*price indicative
- RS Stock No.:
- 214-9075
- Mfr. Part No.:
- IPL60R210P6AUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 19.2 A | |
| Maximum Drain Source Voltage | 600 V | |
| Package Type | ThinkPAK 8 x 8 | |
| Series | CoolMOS™ P6 | |
| Mounting Type | Surface Mount | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance | 0.21 O | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 4.5V | |
| Number of Elements per Chip | 1 | |
| Transistor Material | Si | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 19.2 A | ||
Maximum Drain Source Voltage 600 V | ||
Package Type ThinkPAK 8 x 8 | ||
Series CoolMOS™ P6 | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Maximum Drain Source Resistance 0.21 O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4.5V | ||
Number of Elements per Chip 1 | ||
Transistor Material Si | ||
600V CoolMOSP6 Power Transistor
Infineons CoolMOS™ P6 superjunction MOSFET family is designed to enable higher system efficiency whilst being easy to design in. CoolMOS™ P6 closes the gap between technologies which focus on delivering ultimate performance and those which concentrate more on ease-of-use.
Summary of Features
- Reduced gate charge (Q g)
- Higher V th
- Good body diode ruggedness
- Optimized integrated R g
- Improved dv/dt from 50V/ns
- CoolMOS™ quality with over 12 years manufacturing experience in superjunction technology
Benefits
- Improved effciency especially in light load condition
- Better efficiency in soft switching applications due to earlier turn-off
- Suitable for hard- & soft-switching topologies
- Optimized balance of efficiency and ease of use and good controllability of switching behavior
- High robustness and better efficiency
- Outstanding quality & reliability
Potential Applications
- PFC stages for server, telecom rectifier, PC silverbox, gaming consoles
- PWM stages (TTF, LLC) for server, telecom rectifier, PC silverbox, gaming consoles
