Vishay SiR626ADP Type N-Channel MOSFET, 165 A, 60 V Enhancement, 8-Pin SO-8 SiR626ADP-T1-RE3
- RS Stock No.:
- 204-7200
- Mfr. Part No.:
- SiR626ADP-T1-RE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
£13.60
(exc. VAT)
£16.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.36 | £13.60 |
| 50 - 90 | £1.088 | £10.88 |
| 100 - 240 | £0.952 | £9.52 |
| 250 - 490 | £0.855 | £8.55 |
| 500 + | £0.834 | £8.34 |
*price indicative
- RS Stock No.:
- 204-7200
- Mfr. Part No.:
- SiR626ADP-T1-RE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 165A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | SO-8 | |
| Series | SiR626ADP | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 1.75mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.1V | |
| Typical Gate Charge Qg @ Vgs | 83nC | |
| Maximum Power Dissipation Pd | 104W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 5.26mm | |
| Standards/Approvals | No | |
| Height | 6.25mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 165A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SO-8 | ||
Series SiR626ADP | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 1.75mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.1V | ||
Typical Gate Charge Qg @ Vgs 83nC | ||
Maximum Power Dissipation Pd 104W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Length 5.26mm | ||
Standards/Approvals No | ||
Height 6.25mm | ||
Automotive Standard No | ||
The Vishay N-Channel 60 V (D-S) MOSFET is tuned for the lowest RDS - Qoss FOM.

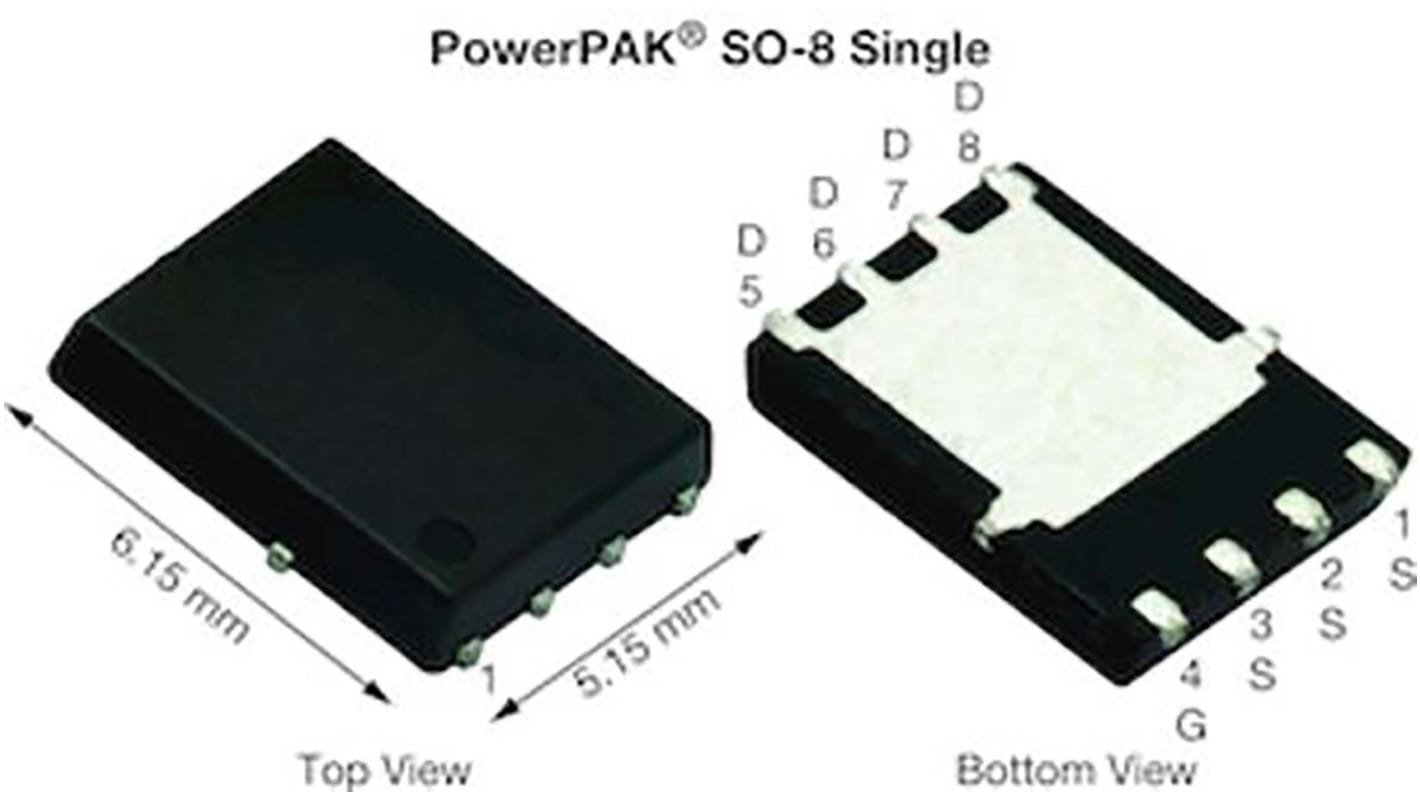

Package Power PAK SO-8
TrenchFET Gen IV power MOSFET
