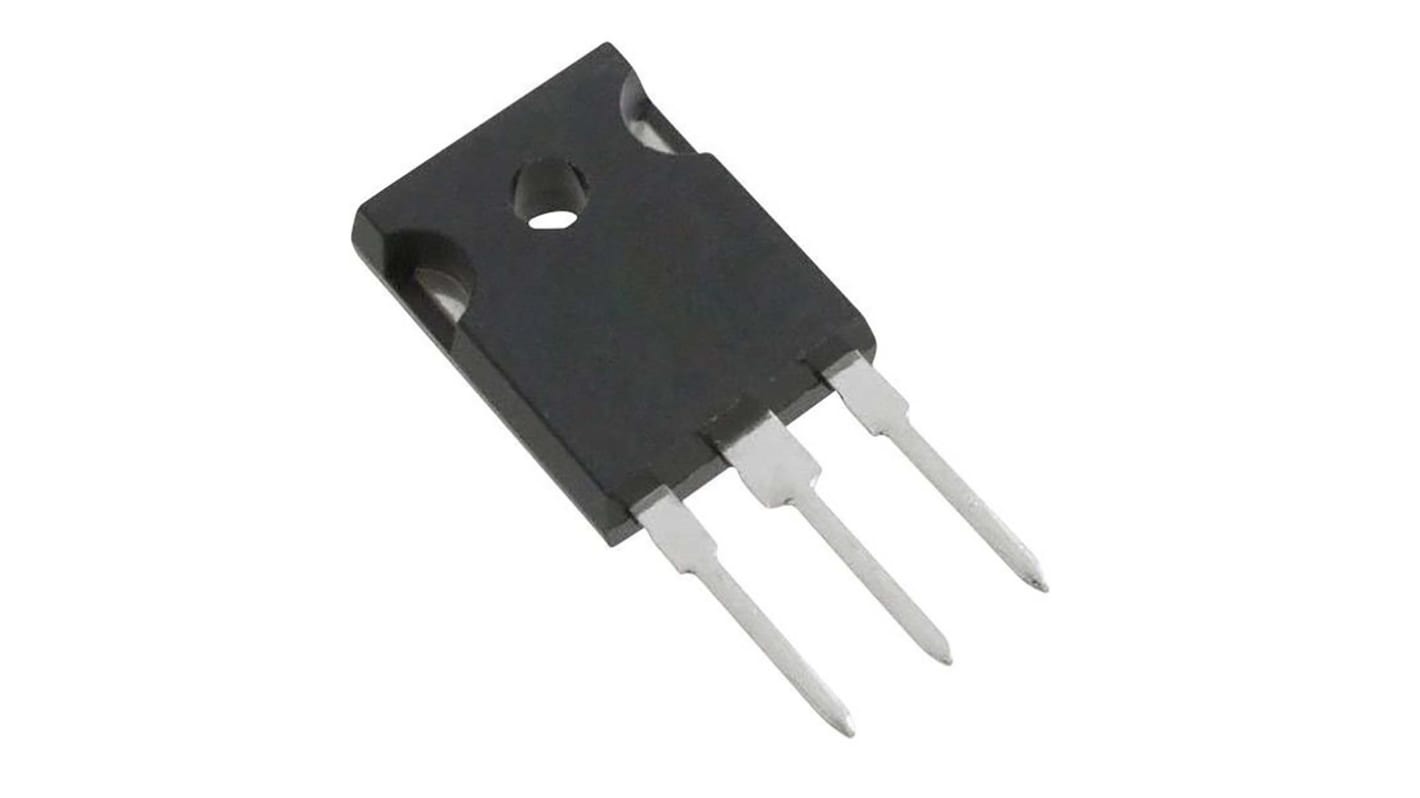

STMicroelectronics SCTWA35N65G2V Type N-Channel SiC Power Module, 45 A, 650 V Enhancement, 3-Pin Hip-247
- RS Stock No.:
- 204-3957
- Mfr. Part No.:
- SCTWA35N65G2V
- Brand:
- STMicroelectronics
Subtotal (1 tube of 30 units)*
£301.11
(exc. VAT)
£361.32
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 60 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 30 + | £10.037 | £301.11 |
*price indicative
- RS Stock No.:
- 204-3957
- Mfr. Part No.:
- SCTWA35N65G2V
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | SiC Power Module | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 45A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Series | SCTWA35N65G2V | |
| Package Type | Hip-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.072Ω | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 73nC | |
| Forward Voltage Vf | 3.3V | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 240W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 200°C | |
| Width | 5.1 mm | |
| Standards/Approvals | No | |
| Height | 41.2mm | |
| Length | 15.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type SiC Power Module | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 45A | ||
Maximum Drain Source Voltage Vds 650V | ||
Series SCTWA35N65G2V | ||
Package Type Hip-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.072Ω | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 73nC | ||
Forward Voltage Vf 3.3V | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 240W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 200°C | ||
Width 5.1 mm | ||
Standards/Approvals No | ||
Height 41.2mm | ||
Length 15.9mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The STMicroelectronics silicon carbide Power MOSFET has been developed using ST’s advanced and innovative 2nd generation SiC MOSFET technology. The device features remarkably low on-resistance per unit area and very good switching performance. The variation of both on-resistance and switching losses is almost independent of junction temperature.
Low capacitance
Very fast and robust intrinsic body diode
Very tight variation of on-resistance vs. temperature
