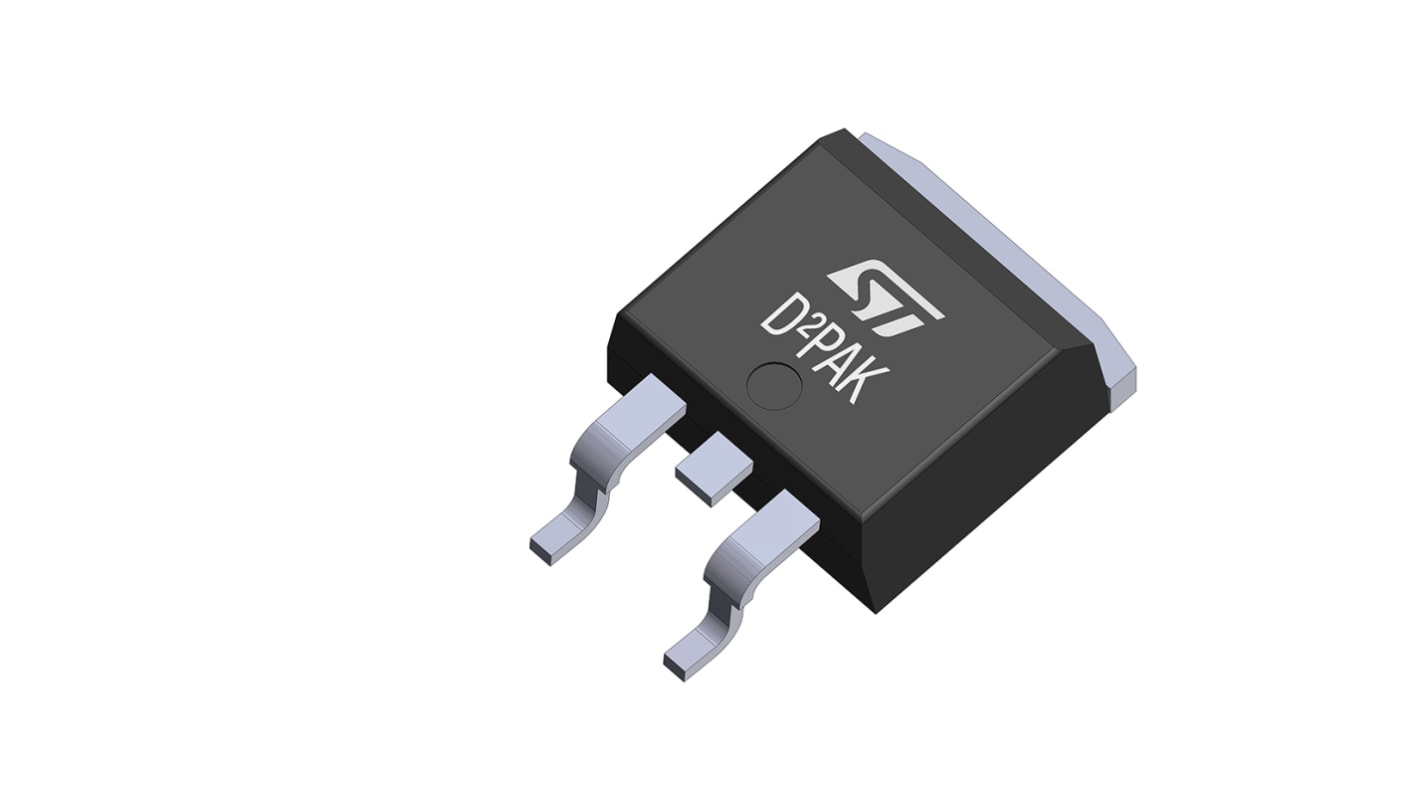

STMicroelectronics N-Channel MOSFET Transistor, 13 A, 3-Pin D2PAK STB18N60M6
- RS Stock No.:
- 192-4936
- Mfr. Part No.:
- STB18N60M6
- Brand:
- STMicroelectronics
Subtotal (1 pack of 5 units)*
£11.69
(exc. VAT)
£14.03
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 29 January 2026
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £2.338 | £11.69 |
25 - 45 | £2.222 | £11.11 |
50 - 120 | £1.998 | £9.99 |
125 - 245 | £1.798 | £8.99 |
250 + | £1.712 | £8.56 |
*price indicative
- RS Stock No.:
- 192-4936
- Mfr. Part No.:
- STB18N60M6
- Brand:
- STMicroelectronics
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Channel Type | N | |
Maximum Continuous Drain Current | 13 A | |
Package Type | D2PAK (TO-263) | |
Mounting Type | Surface Mount | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 280 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 4.75V | |
Minimum Gate Threshold Voltage | 3.25V | |
Maximum Power Dissipation | 110 W | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | ±25 V | |
Typical Gate Charge @ Vgs | 16.8 nC @ 10 V | |
Maximum Operating Temperature | +150 °C | |
Length | 10.4mm | |
Number of Elements per Chip | 1 | |
Width | 9.35mm | |
Forward Diode Voltage | 1.6V | |
Minimum Operating Temperature | -55 °C | |
Height | 4.37mm | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 13 A | ||
Package Type D2PAK (TO-263) | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 280 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4.75V | ||
Minimum Gate Threshold Voltage 3.25V | ||
Maximum Power Dissipation 110 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±25 V | ||
Typical Gate Charge @ Vgs 16.8 nC @ 10 V | ||
Maximum Operating Temperature +150 °C | ||
Length 10.4mm | ||
Number of Elements per Chip 1 | ||
Width 9.35mm | ||
Forward Diode Voltage 1.6V | ||
Minimum Operating Temperature -55 °C | ||
Height 4.37mm | ||
- COO (Country of Origin):
- CN
Lower RDS(on) per area vs previous generation
Low gate input resistance
Zener-protected
