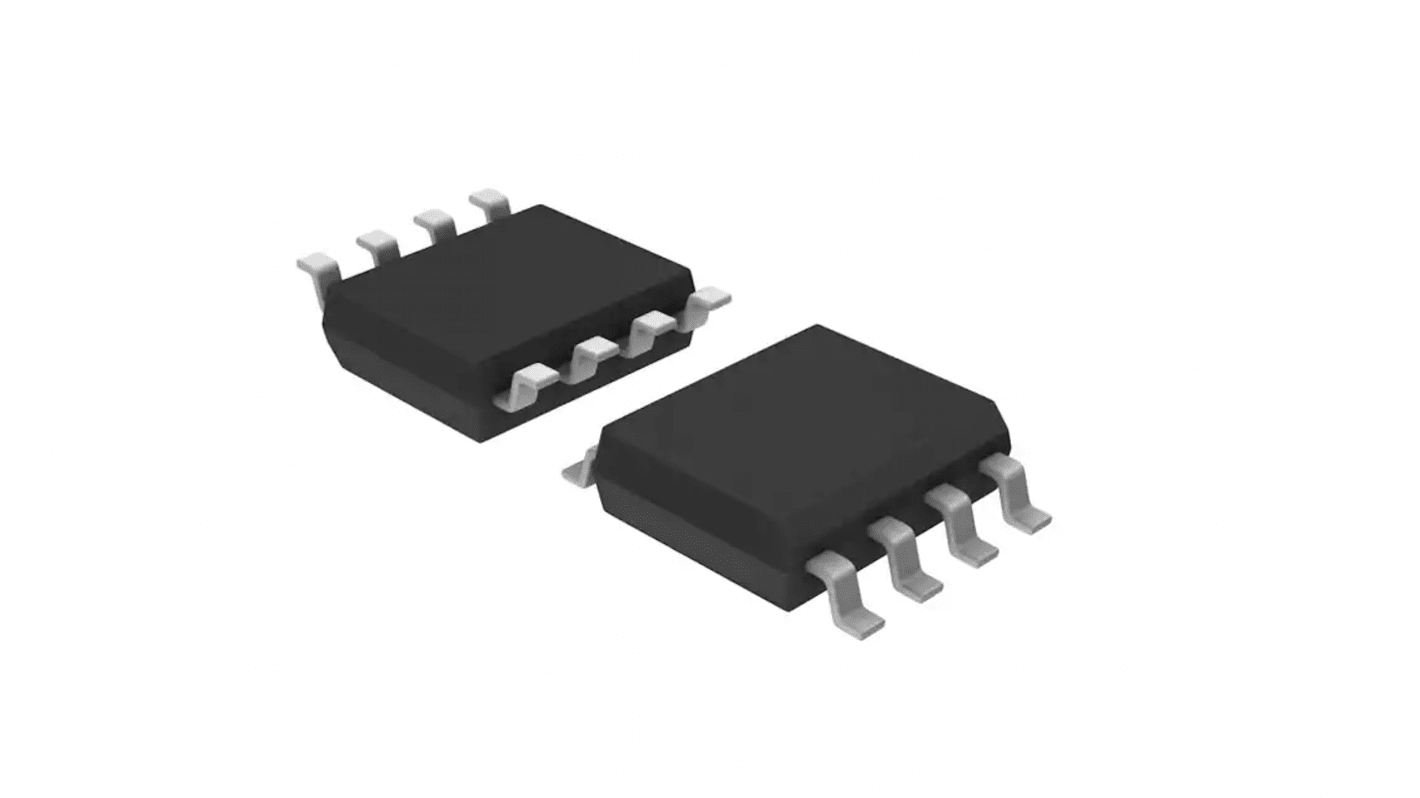

Vishay TrenchFET P-Channel MOSFET, 36 A, 30 V, 8-Pin SO-8 SI4497DY-T1-GE3
- RS Stock No.:
- 180-8044
- Mfr. Part No.:
- SI4497DY-T1-GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£8.96
(exc. VAT)
£10.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £1.792 | £8.96 |
50 - 120 | £1.486 | £7.43 |
125 - 245 | £1.346 | £6.73 |
250 - 495 | £1.164 | £5.82 |
500 + | £1.076 | £5.38 |
*price indicative
- RS Stock No.:
- 180-8044
- Mfr. Part No.:
- SI4497DY-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Channel Type | P | |
Maximum Continuous Drain Current | 36 A | |
Maximum Drain Source Voltage | 30 V | |
Series | TrenchFET | |
Package Type | SO-8 | |
Mounting Type | Surface Mount | |
Pin Count | 8 | |
Maximum Drain Source Resistance | 0.0046 O | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 2.5V | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Channel Type P | ||
Maximum Continuous Drain Current 36 A | ||
Maximum Drain Source Voltage 30 V | ||
Series TrenchFET | ||
Package Type SO-8 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.0046 O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- CN
Vishay MOSFET
The Vishay surface mount P-channel MOSFET is a new age product with a drain-source voltage of 30V and a maximum gate-source voltage of 20V. It has drain-source resistance of 3.3mohm at a gate-source voltage of 10V. It has a maximum power dissipation of 7.8W and continuous drain current of 36A. The minimum and a maximum driving voltage for this MOSFET is 4.5V and 10V respectively. The MOSFET has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.
Features and Benefits
• Halogen free
• Lead (Pb) free
• Operating temperature ranges between -55°C and 150°C
• TrenchFET power MOSFET
• Lead (Pb) free
• Operating temperature ranges between -55°C and 150°C
• TrenchFET power MOSFET
Applications
• Adaptor switch
• High current load switch
• Notebook
• High current load switch
• Notebook
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• IEC 61249-2-21
• Rg tested
• UIS tested
• BS EN 61340-5-1:2007
• IEC 61249-2-21
• Rg tested
• UIS tested
