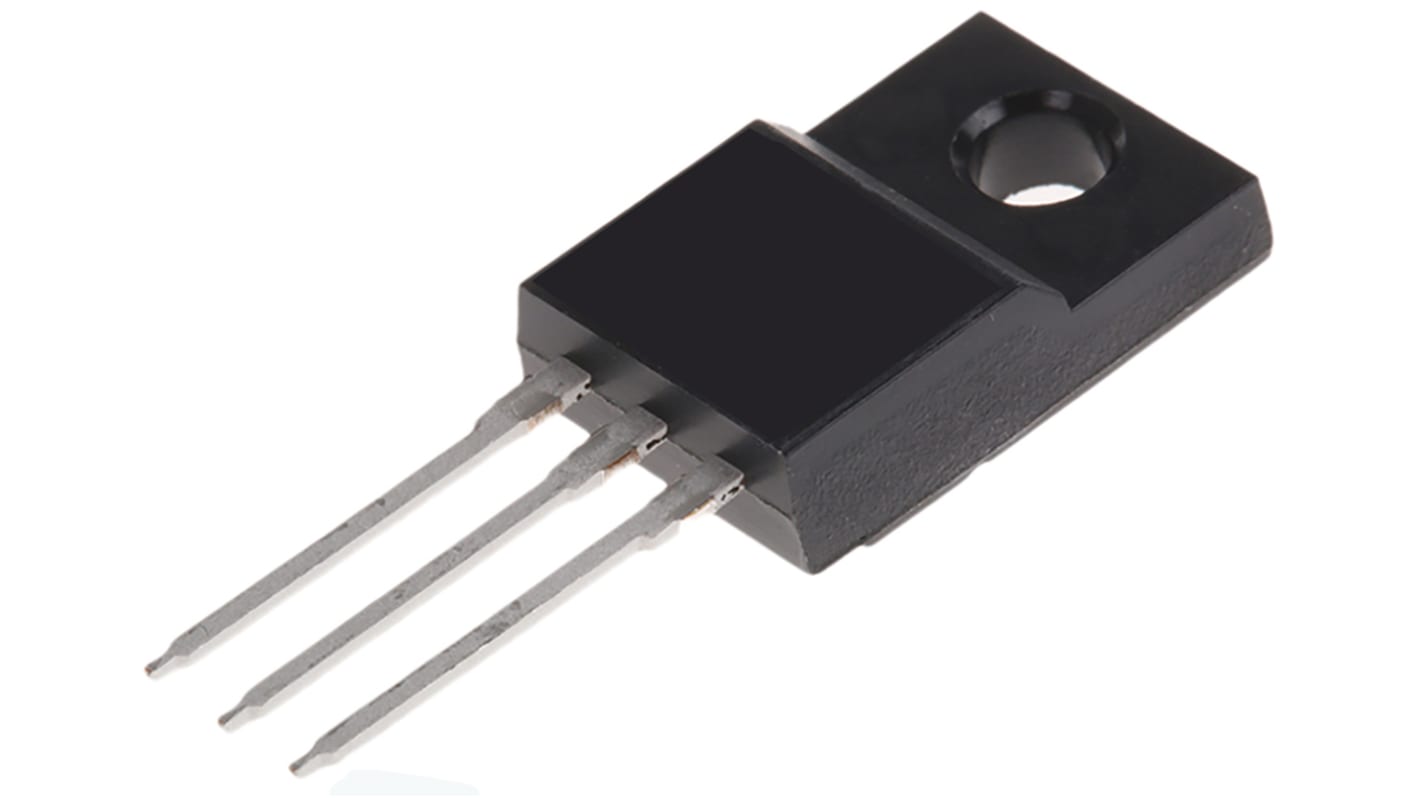

onsemi PowerTrench N-Channel MOSFET, 25 A, 250 V, 3-Pin TO-220F FDPF2710T
- RS Stock No.:
- 145-4665
- Mfr. Part No.:
- FDPF2710T
- Brand:
- onsemi
Subtotal (1 tube of 50 units)*
£116.90
(exc. VAT)
£140.30
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 09 January 2026
Units | Per unit | Per Tube* |
---|---|---|
50 - 50 | £2.338 | £116.90 |
100 - 200 | £2.221 | £111.05 |
250 + | £2.104 | £105.20 |
*price indicative
- RS Stock No.:
- 145-4665
- Mfr. Part No.:
- FDPF2710T
- Brand:
- onsemi
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Channel Type | N | |
Maximum Continuous Drain Current | 25 A | |
Maximum Drain Source Voltage | 250 V | |
Series | PowerTrench | |
Package Type | TO-220F | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 42 mΩ | |
Channel Mode | Enhancement | |
Minimum Gate Threshold Voltage | 3V | |
Maximum Power Dissipation | 62.5 W | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | -30 V, +30 V | |
Number of Elements per Chip | 1 | |
Maximum Operating Temperature | +150 °C | |
Transistor Material | Si | |
Width | 4.9mm | |
Typical Gate Charge @ Vgs | 78 nC @ 10 V | |
Length | 10.36mm | |
Height | 16.07mm | |
Minimum Operating Temperature | -55 °C | |
Select all | ||
---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 25 A | ||
Maximum Drain Source Voltage 250 V | ||
Series PowerTrench | ||
Package Type TO-220F | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 42 mΩ | ||
Channel Mode Enhancement | ||
Minimum Gate Threshold Voltage 3V | ||
Maximum Power Dissipation 62.5 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -30 V, +30 V | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature +150 °C | ||
Transistor Material Si | ||
Width 4.9mm | ||
Typical Gate Charge @ Vgs 78 nC @ 10 V | ||
Length 10.36mm | ||
Height 16.07mm | ||
Minimum Operating Temperature -55 °C | ||
PowerTrench® N-Channel MOSFET, 20A to 59.9A, Fairchild Semiconductor
ON Semi MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.
