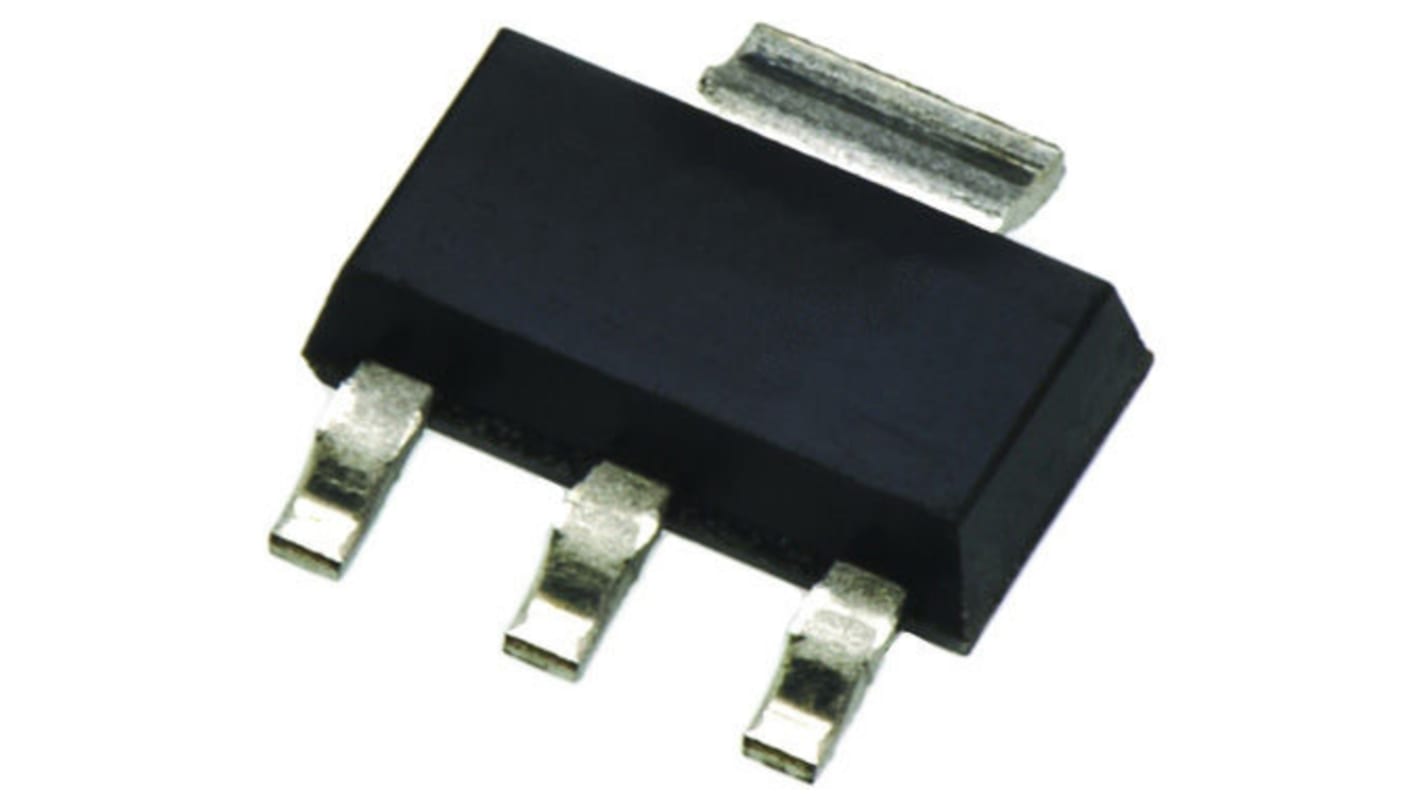

Infineon CoolMOS CE Type N-Channel MOSFET, 4.8 A, 550 V Enhancement, 4-Pin SOT-223 IPN50R1K4CEATMA1
- RS Stock No.:
- 130-0911
- Mfr. Part No.:
- IPN50R1K4CEATMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 25 units)*
£6.85
(exc. VAT)
£8.225
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,775 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 225 | £0.274 | £6.85 |
| 250 - 600 | £0.206 | £5.15 |
| 625 - 1225 | £0.192 | £4.80 |
| 1250 - 2475 | £0.178 | £4.45 |
| 2500 + | £0.137 | £3.43 |
*price indicative
- RS Stock No.:
- 130-0911
- Mfr. Part No.:
- IPN50R1K4CEATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 4.8A | |
| Maximum Drain Source Voltage Vds | 550V | |
| Series | CoolMOS CE | |
| Package Type | SOT-223 | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 1.4Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Typical Gate Charge Qg @ Vgs | 8.2nC | |
| Minimum Operating Temperature | -40°C | |
| Forward Voltage Vf | 0.83V | |
| Maximum Power Dissipation Pd | 5W | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.7mm | |
| Width | 3.7 mm | |
| Standards/Approvals | No | |
| Length | 6.7mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 4.8A | ||
Maximum Drain Source Voltage Vds 550V | ||
Series CoolMOS CE | ||
Package Type SOT-223 | ||
Mount Type Surface | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 1.4Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Typical Gate Charge Qg @ Vgs 8.2nC | ||
Minimum Operating Temperature -40°C | ||
Forward Voltage Vf 0.83V | ||
Maximum Power Dissipation Pd 5W | ||
Maximum Operating Temperature 150°C | ||
Height 1.7mm | ||
Width 3.7 mm | ||
Standards/Approvals No | ||
Length 6.7mm | ||
Automotive Standard No | ||
Infineon CoolMOS™ CE Power MOSFET
MOSFET Transistors, Infineon
Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.
