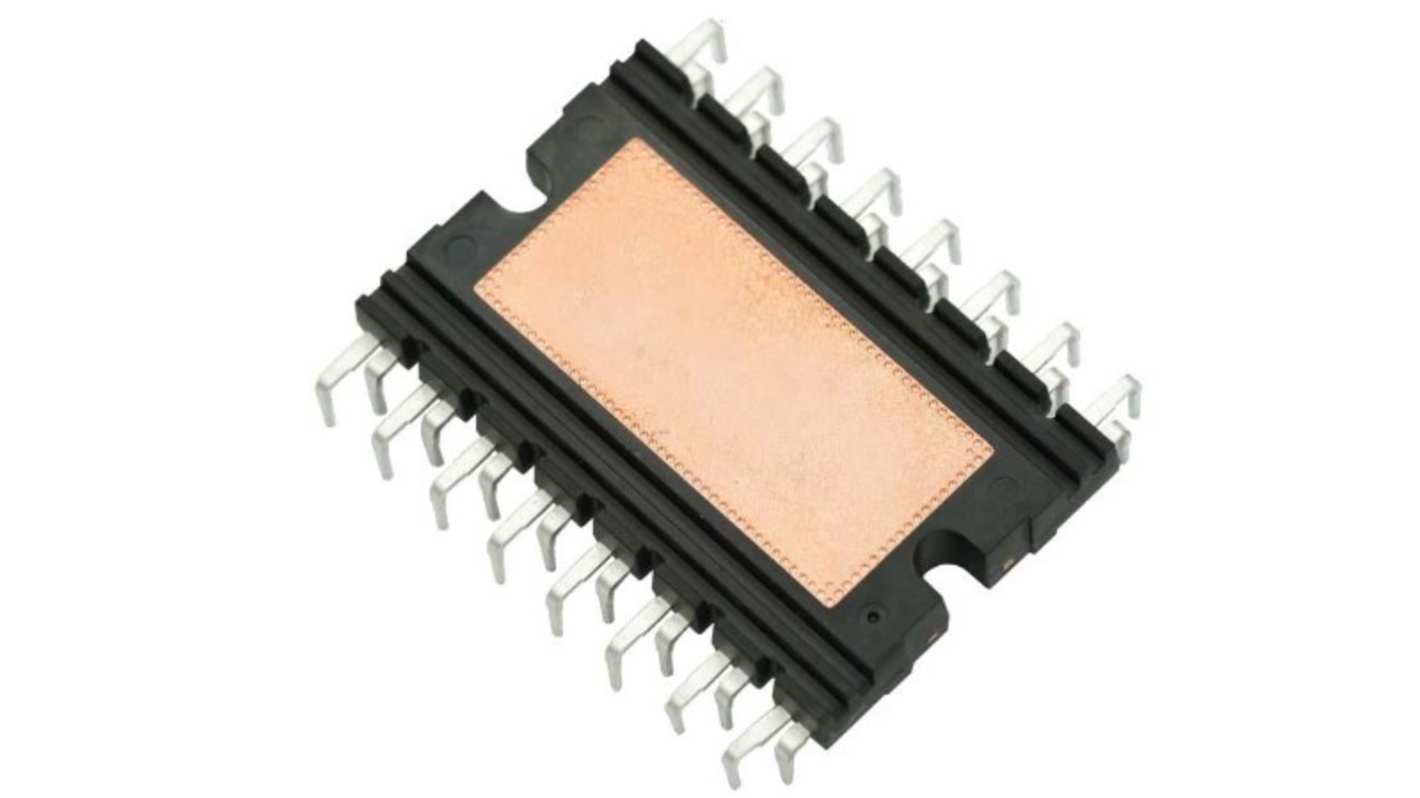

STMicroelectronics M2TP80M12W2 8 Type N-Channel MOSFET Arrays, 30 A, 1200 V Enhancement, 32-Pin ACEPACK DMT-32
- RS Stock No.:
- 640-674
- Mfr. Part No.:
- M2TP80M12W2-2LA
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£41.82
(exc. VAT)
£50.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £41.82 |
| 5 + | £40.56 |
*price indicative
- RS Stock No.:
- 640-674
- Mfr. Part No.:
- M2TP80M12W2-2LA
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | MOSFET Arrays | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 30A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Package Type | ACEPACK DMT-32 | |
| Series | M2TP80M12W2 | |
| Mount Type | Through Hole | |
| Pin Count | 32 | |
| Maximum Drain Source Resistance Rds | 114mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -40°C | |
| Typical Gate Charge Qg @ Vgs | 63nC | |
| Forward Voltage Vf | 1.10V | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Maximum Operating Temperature | 175°C | |
| Width | 27.90 mm | |
| Length | 44.50mm | |
| Standards/Approvals | AQG 324 | |
| Height | 5.90mm | |
| Number of Elements per Chip | 8 | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type MOSFET Arrays | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 30A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Package Type ACEPACK DMT-32 | ||
Series M2TP80M12W2 | ||
Mount Type Through Hole | ||
Pin Count 32 | ||
Maximum Drain Source Resistance Rds 114mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -40°C | ||
Typical Gate Charge Qg @ Vgs 63nC | ||
Forward Voltage Vf 1.10V | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Maximum Operating Temperature 175°C | ||
Width 27.90 mm | ||
Length 44.50mm | ||
Standards/Approvals AQG 324 | ||
Height 5.90mm | ||
Number of Elements per Chip 8 | ||
Automotive Standard AEC | ||
- COO (Country of Origin):
- CN
The STMicroelectronics high-efficiency, automotive-grade power module built in the ACEPACK DMT-32 package. It implements a 3-phase four-wire power factor correction (PFC) topology using six second-generation silicon carbide (SiC) MOSFETs and two rectifier diodes. Designed for the PFC stage of on-board chargers (OBCs) in electric and hybrid vehicles, it offers a compact, thermally optimized solution with integrated temperature sensing.
1200 V silicon carbide MOSFETs with typical RDS(on) of 84 mΩ
Implements a 3-phase four-wire power factor correction (PFC) topology
Includes 1200 V / 20 A rectifier diodes
Integrated NTC thermistor for real-time temperature monitoring
