STMicroelectronics SiC Power Module, 75 A, 1200 V ACEPACK 2 A2U12M12W2-F2

View all MOSFETs

Subtotal (1 tray of 18 units)*

£3,470.562

(exc. VAT)

£4,164.678

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
18 +£192.809£3,470.56

*price indicative

RS Stock No.:
249-6719
Mfr. Part No.:
A2U12M12W2-F2
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Continuous Drain Current

75 A

Maximum Drain Source Voltage

1200 V

Package Type

ACEPACK 2

Mounting Type

Chassis Mount

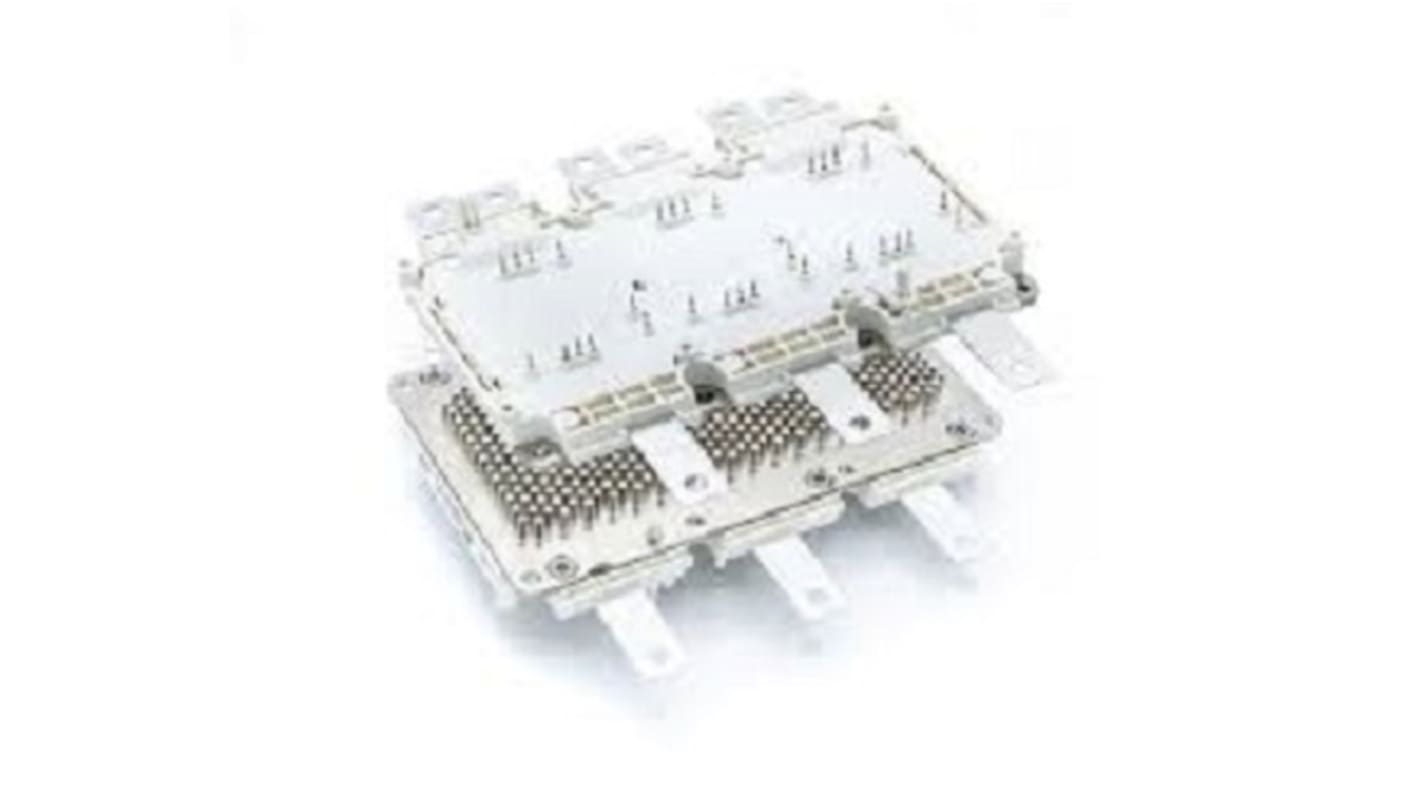

The STMicroelectronics power module represents a leg of a T-type 3-level inverter topology that integrates the advanced silicon carbide Power MOSFET technology. This module leverages the innovative properties of the wide-bandgap SiC material and a high-thermal-performance substrate. The result is exceptionally low on-resistance per unit area and excellent switching performance that is virtually independent of temperature.

3-level topology
ACEPACK 2 power module
13 mΩ of typical RDS(on) each switch
Insulation voltage UL certified of 2.5 kVrms
Integrated NTC temperature sensor
DBC Cu-Al2O3-Cu based
Press fit contact pins
An NTC sensor completes the design
