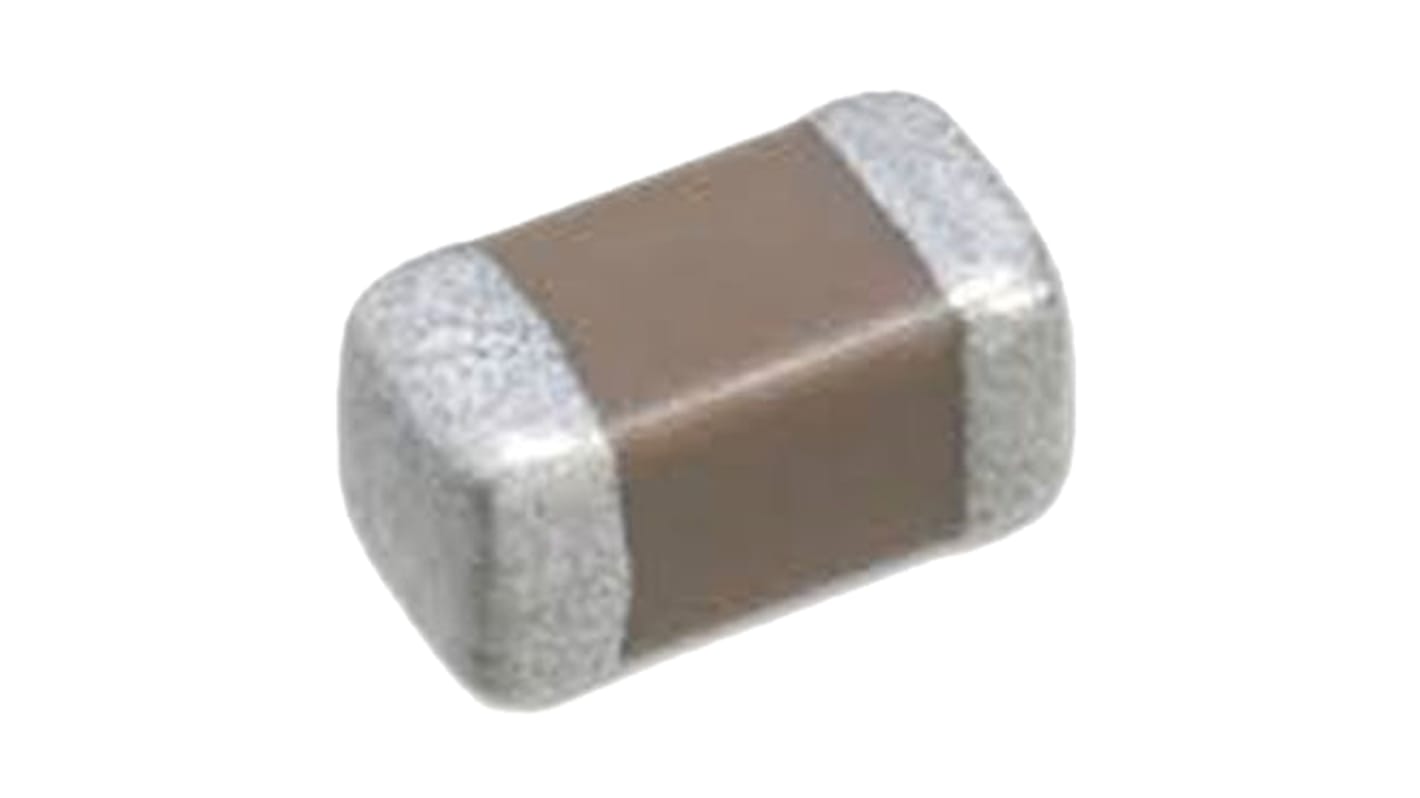

TDK 1nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±10% , SMD
- RS Stock No.:
- 915-9211
- Mfr. Part No.:
- C1608X7R1H102K080AE
- Brand:
- TDK
3300 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 100)
£0.042
(exc. VAT)
£0.05
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 700 | £0.042 | £4.20 |
| 800 - 1900 | £0.032 | £3.20 |
| 2000 + | £0.03 | £3.00 |
| *price indicative | ||
- RS Stock No.:
- 915-9211
- Mfr. Part No.:
- C1608X7R1H102K080AE
- Brand:
- TDK
Technical Reference
Legislation and Compliance
Product Details
TDK C type 0603 series
Professional range of TDK multilayer ceramic chip capacitors from the C series. Suitable for high frequency and high density type power supplies due to low ESR and excellent frequency characteristics.
Features and Benefits:
High capacitance through precision technologies that enable the use of multiple thinner ceramic dielectric layers
A monolithic structure ensures superior mechanical strength and reliability
Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values
Low self-heating and high ripple resistance due to low ESR
A monolithic structure ensures superior mechanical strength and reliability
Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values
Low self-heating and high ripple resistance due to low ESR
Applications:
Commercial Grade for general applications including
General electronic equipment; Mobile communication equipment; Power supply circuit; Office automation equipment; TV, LED displays; Servers, PCs, Notebooks, Tablets.
General electronic equipment; Mobile communication equipment; Power supply circuit; Office automation equipment; TV, LED displays; Servers, PCs, Notebooks, Tablets.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1nF |
| Voltage | 50V dc |
| Package/Case | 0603 (1608M) |
| Mounting Type | Surface Mount |
| Dielectric | X7R |
| Tolerance | ±10% |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Length | 1.6mm |
| Depth | 0.8mm |
| Height | 0.8mm |
| Series | C |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Surface Mount |
