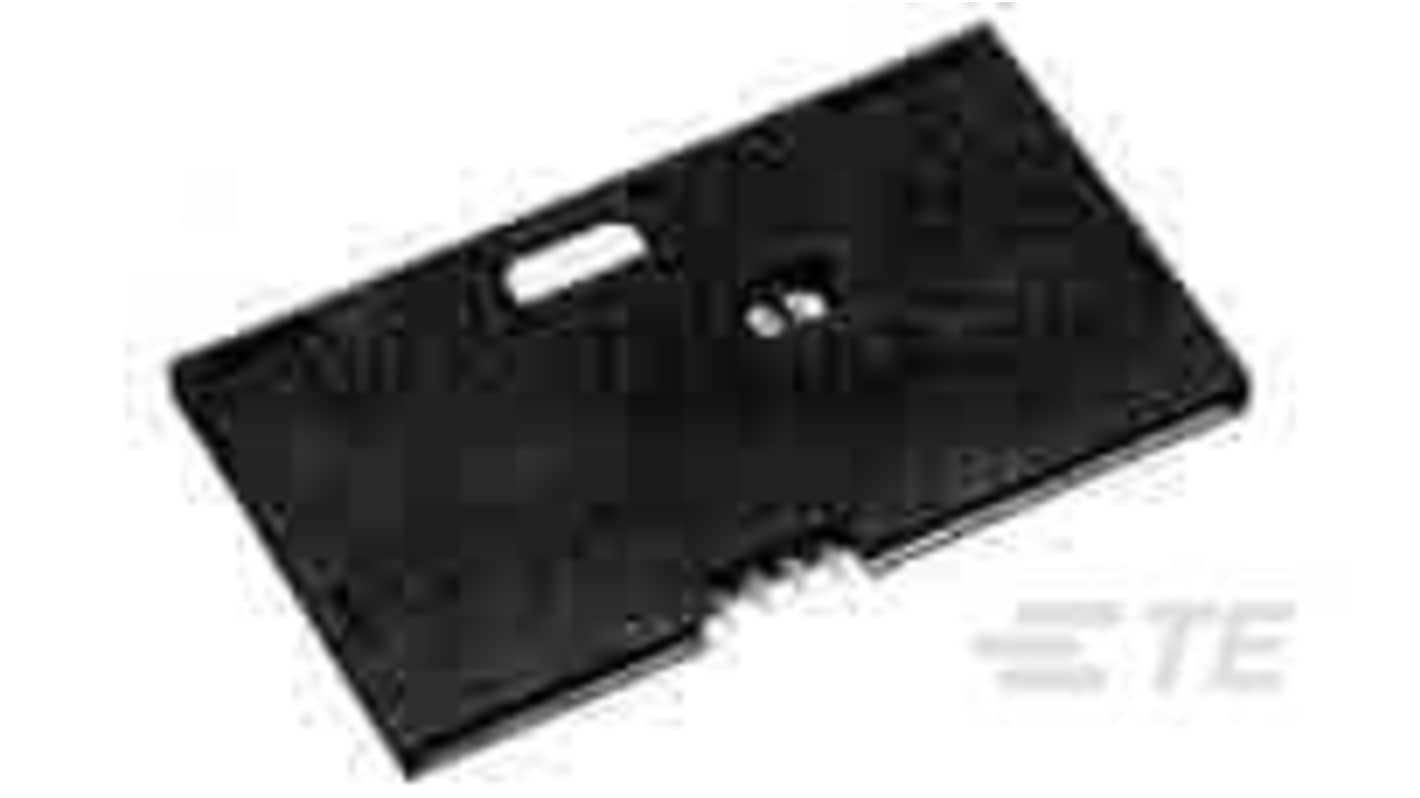

TE Connectivity, 5145300 8 Way Push Pull Smart Card Smart Card Connector, Surface Mount
- RS Stock No.:
- 520-544
- Distrelec Article No.:
- 304-54-217
- Mfr. Part No.:
- 5145300-3
- Brand:
- TE Connectivity
Subtotal (1 pack of 63 units)*
£218.07
(exc. VAT)
£261.68
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £218.07 | £3.461 |
*price indicative
- RS Stock No.:
- 520-544
- Distrelec Article No.:
- 304-54-217
- Mfr. Part No.:
- 5145300-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Card Type | Smart Card | |
| Product Type | Smart Card Connector | |
| Insertion/Removal Method | Push Pull | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Pitch | 2.54mm | |
| Orientation | Straight | |
| Mount Type | Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40°C | |
| Housing Material | High Temperature Thermoplastic | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, 2016 | |
| Series | 5145300 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Card Type Smart Card | ||
Product Type Smart Card Connector | ||
Insertion/Removal Method Push Pull | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 2.54mm | ||
Orientation Straight | ||
Mount Type Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Housing Material High Temperature Thermoplastic | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, 2016 | ||
Series 5145300 | ||
- COO (Country of Origin):
- CN
The TE Connectivity connector is designed to meet the demanding requirements of smart card applications, providing a reliable and efficient connection. With eight positions and a 2.54 mm centreline, this board mount connector facilitates seamless integration into various electronic devices. Built to withstand temperature ranges from -40 to 90 °C, it ensures functionality in challenging environments. The housing is constructed from high-temperature thermoplastic, enhancing durability while maintaining a sleek design. Featuring gold-plated contacts for improved conductivity, this connector not only adheres to industry standards but also boasts a robust mechanical design, ensuring a long lifespan of up to 50,000 cycles. Additionally, this connector is compliant with multiple international directives, making it an excellent choice for environmentally conscious projects.
Connector features dual-side card detection for enhanced functionality
High-quality nickel underplating provides superior contact reliability
Specifically designed for board mounting, simplifying installation
Constructed from low-halogen materials for improved environmental safety
Surface mount termination method supports various PCB designs
Offers a compact design with a low profile for space-constrained applications
Provides a packaging quantity of 336 for bulk requirements
Optimised for reflow solder processes, ensuring compatibility with automated assembly
