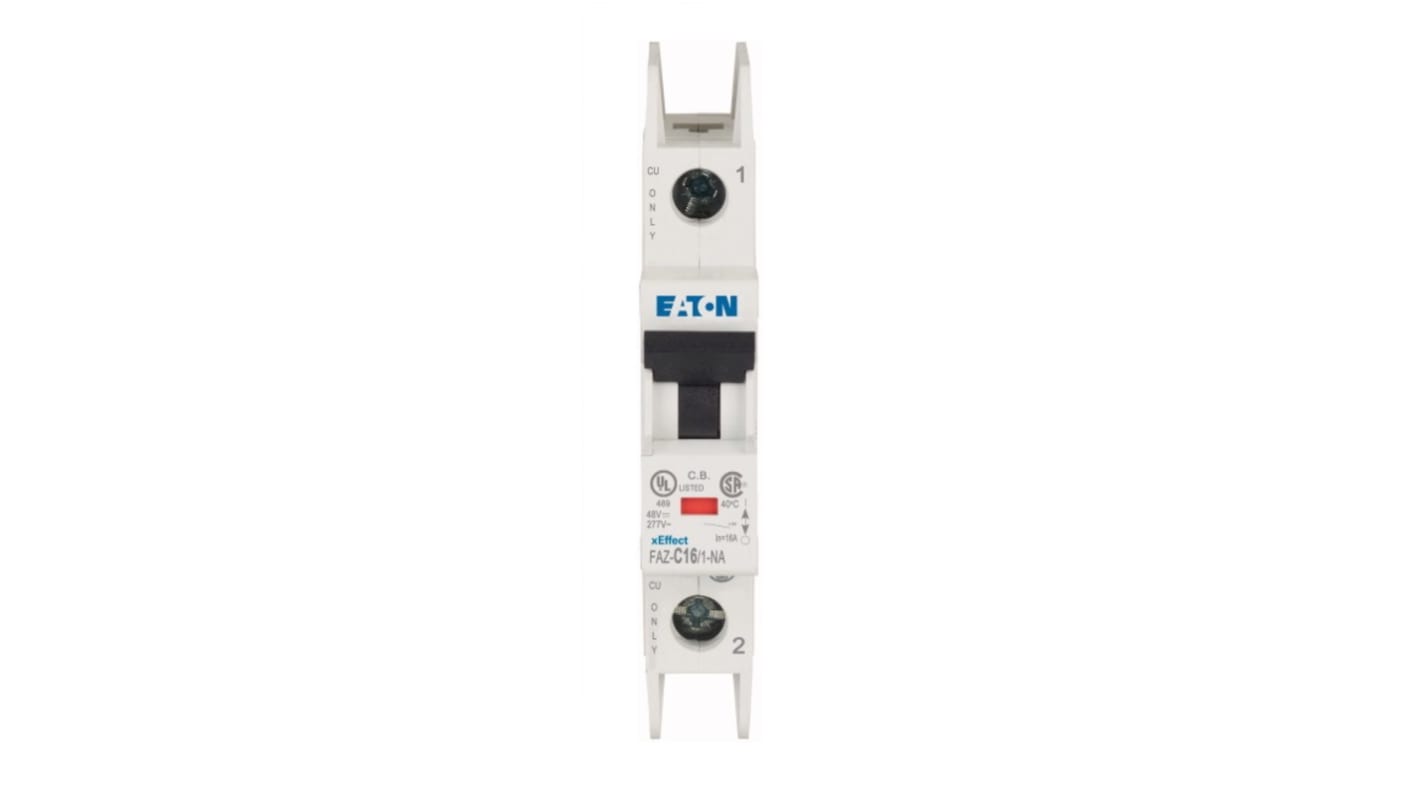

Eaton xEffect MCB, 1P, 16A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 922-6905
- Mfr. Part No.:
- 102090 FAZ-C16/1-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£31.19
(exc. VAT)
£37.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £31.19 |
*price indicative
- RS Stock No.:
- 922-6905
- Mfr. Part No.:
- 102090 FAZ-C16/1-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 1 | |
Current Rating | 16A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 240 → 415V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Length | 17.8mm | |
Width | 66mm | |
Mounting Style | DIN Rail Mount | |
Depth | 80mm | |
Break Time | Instantaneous | |
Terminal Contact Type | Screw | |
Tripping Mechanism | Thermal-Magnetic | |
Reset Actuator Type | Toggle Switch | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Current Rating 16A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 → 415V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 17.8mm | ||
Width 66mm | ||
Mounting Style DIN Rail Mount | ||
Depth 80mm | ||
Break Time Instantaneous | ||
Terminal Contact Type Screw | ||
Tripping Mechanism Thermal-Magnetic | ||
Reset Actuator Type Toggle Switch | ||
Eaton MCB, 16A Current Rating, C Curve - xEffect Series - 102090 FAZ-C16/1-NA
Looking for a reliable general-purpose circuit-protection solution? Choose this MCB from Eaton. Its single-pole construction makes it suitable for single-phase circuit designs. It monitors your network and cuts the power supply in the event of a short circuit, preventing damage to attached electrical components. Thanks to durable thermoplastic housing, you can rely on it to resist the strain of harsh environments. To prevent tampering, you can't bypass the breaker by holding its switch in the ON position, ensuring the fault is cleared for optimal safety. MCBs like this are commonly found in domestic consumer units.
Features & Benefits
• Switching capacity of 10kA to handle high-current surges without damage
• DIN rail mounting style is simple and tool-free, saving time and effort
• Can be used for both AC and DC supply voltages for versatility
• DIN rail mounting style is simple and tool-free, saving time and effort
• Can be used for both AC and DC supply voltages for versatility
Is this MCB finger-safe?
Yes, this MCB has an IP40 rating, which means it's protected from tools and objects larger than 1mm in size, including your fingers.
What's the mechanical lifespan of this MCB?
This MCB will withstand up to 10,000 mechanical operating cycles, so you can be assured of long-term performance.
Note
Eaton formerly known as Moeller
