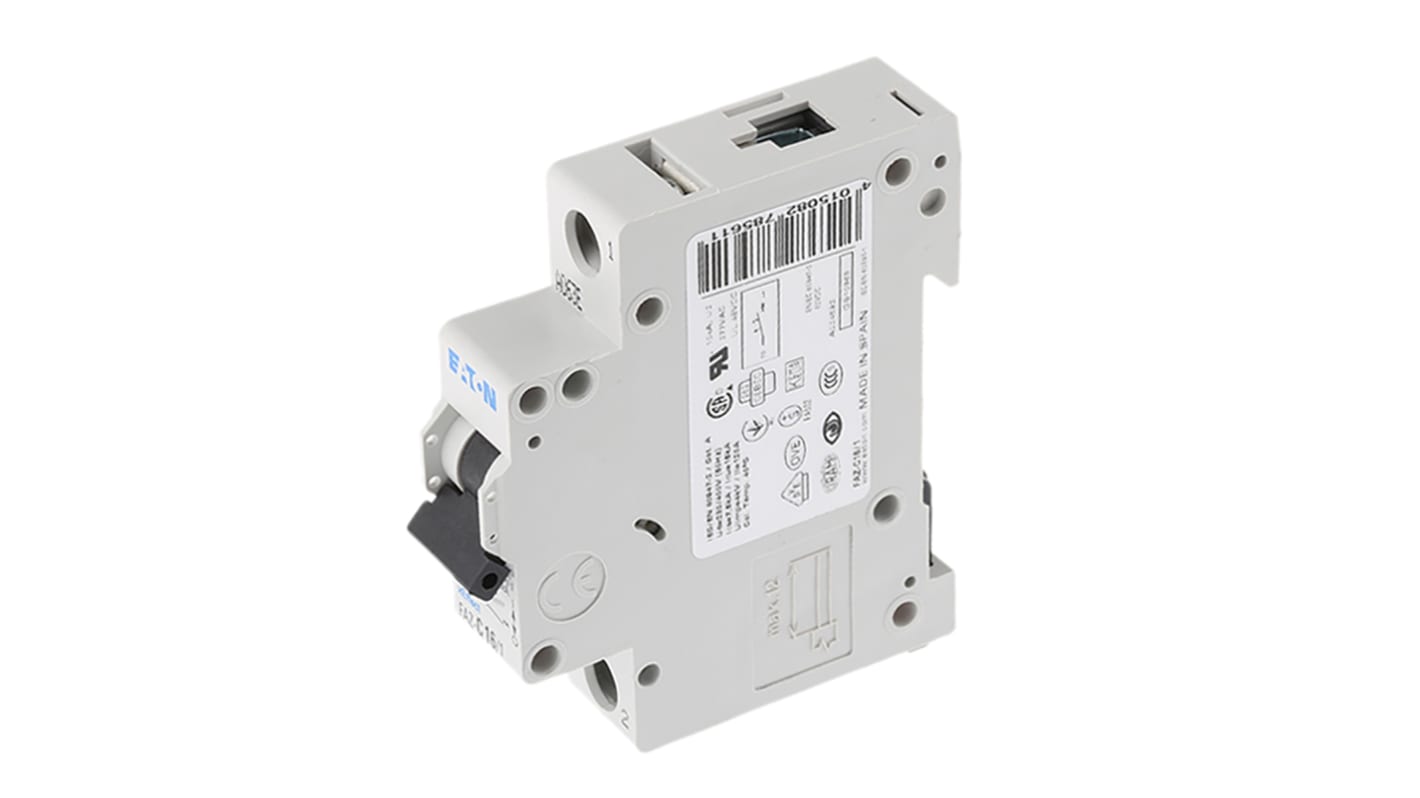

Eaton xEffect MCB, 1P, 16A Curve C, 230V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 624-0355
- Mfr. Part No.:
- 278561 FAZ-C16/1
- Brand:
- Eaton
Subtotal (1 unit)*
£22.85
(exc. VAT)
£27.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £22.85 |
*price indicative
- RS Stock No.:
- 624-0355
- Mfr. Part No.:
- 278561 FAZ-C16/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 1 | |
Current Rating | 16A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 230V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Width | 17.5mm | |
Length | 80mm | |
Mounting Style | DIN Rail Mount | |
Depth | 74mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Current Rating 16A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Width 17.5mm | ||
Length 80mm | ||
Mounting Style DIN Rail Mount | ||
Depth 74mm | ||
- COO (Country of Origin):
- RO
Eaton MCB, C Curve, 10kA Breaking Capacity - xEffect Series - 278561 FAZ-C16/1
Put reliable protection in place for your equipment with this MCB from Eaton. It's fitted with a current-limiting feature that interrupts the circuit rapidly in the event of a short circuit, reducing the let-through electrical energy and overload currents that can damage equipment. The breaker can't be overridden by holding the handle in the ON position, providing an extra level of security. You can easily install this MCB on a DIN rail to build a compact and organised system.
Features & Benefits
• Dimensions of 80 (length) x 17.5 (width) x 74mm (depth) saves space in your cabinet
• Front switch toggle provides a clear indication of contact position
• 230V AC rated voltage makes it suitable for use with UK mains supply
• Front switch toggle provides a clear indication of contact position
• 230V AC rated voltage makes it suitable for use with UK mains supply
What's the difference between an MCB and a fuse?
Both an MCB and a fuse are designed to interrupt a circuit to protect personnel and equipment in the event of an overcurrent. While fuses are sacrificial elements that are destroyed when they blow, MCBs can be reset and reused. They can also be switched on and off to provide convenient isolation of a circuit.
Note
Eaton formerly known as Moeller
Standards
IEC/EN60947-2
