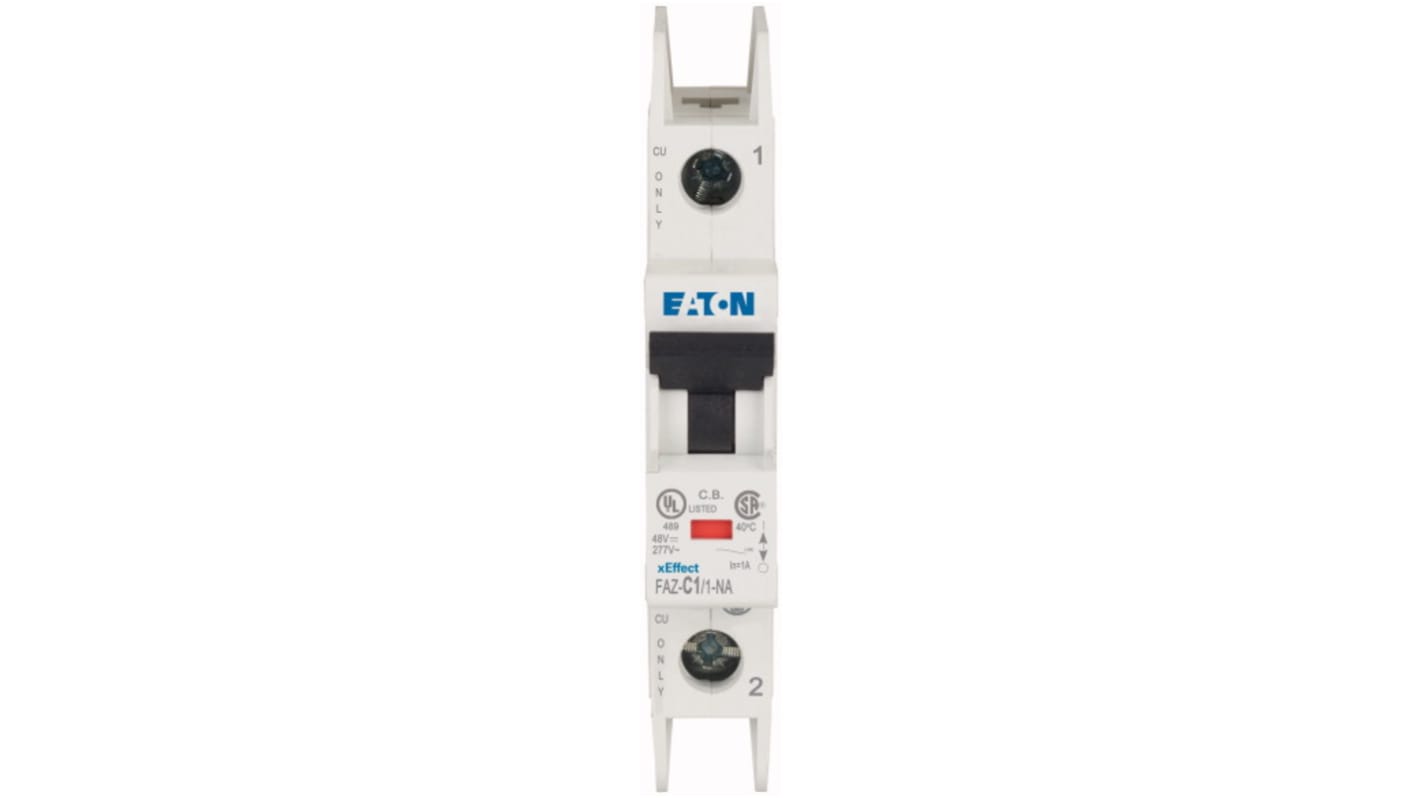

Eaton xEffect MCB, 1P, 1A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£38.21

(exc. VAT)

£45.85

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 17 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£38.21

*price indicative

RS Stock No.:
922-6888
Mfr. Part No.:
102078 FAZ-C1/1-NA
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Number of Poles

1

Current Rating

1A

Tripping Characteristics

Type C

Rated AC Voltage

240 → 415V

Rated DC Voltage

48V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

xEffect

Circuit Breaker Type

MCB

Width

17.7mm

Length

105mm

Mounting Style

DIN Rail Mount

Depth

70mm

Model Number

FAZ-C1/1

Terminal Contact Type

Screw

Break Time

Instantaneous

Tripping Mechanism

Thermal-Magnetic

Reset Actuator Type

Toggle Switch

Eaton MCB, Built-in Pre-Fuse, IP20 Rating - FAZ Series - 102078 FAZ-C1/1-NA


Looking to bag a breaking solution that also helps minimise system downtime? Check out this MCB from Eaton. It's a high selectivity unit so, if necessary, it can cut power using a built-in pre-fuse instead of its electromagnetic or thermal releases. This gives your circuit triple protection and minimises the need for resetting. Dual release mechanisms and type-C characteristics mean it offers overload and short-circuit protection to safely de-energise whenever your circuit's supplied with between five and ten times the 1A rated value. As a result, this is a practical choice for carrying the burden of high-load applications. You'll find MCBs like this installed in control panels, keeping watch for high surges.

• Instantaneous breaking means it acts without hesitation to protect you and your equipment
• Practical and versatile three-position DIN rail mounting for speedy installation without tools
• Colour-coded contact display helps you check system status without breaking your stride

What standards do this MCB meet?


The MCB offers switching and breaking in line with European and American standards. Its IEC/EN 60947-2, IEC/EN 60898-1 and UL 1077 approvals mean you can trust it to trip currents up to 10kA without damage.

Note

Eaton formerly known as Moeller
